4

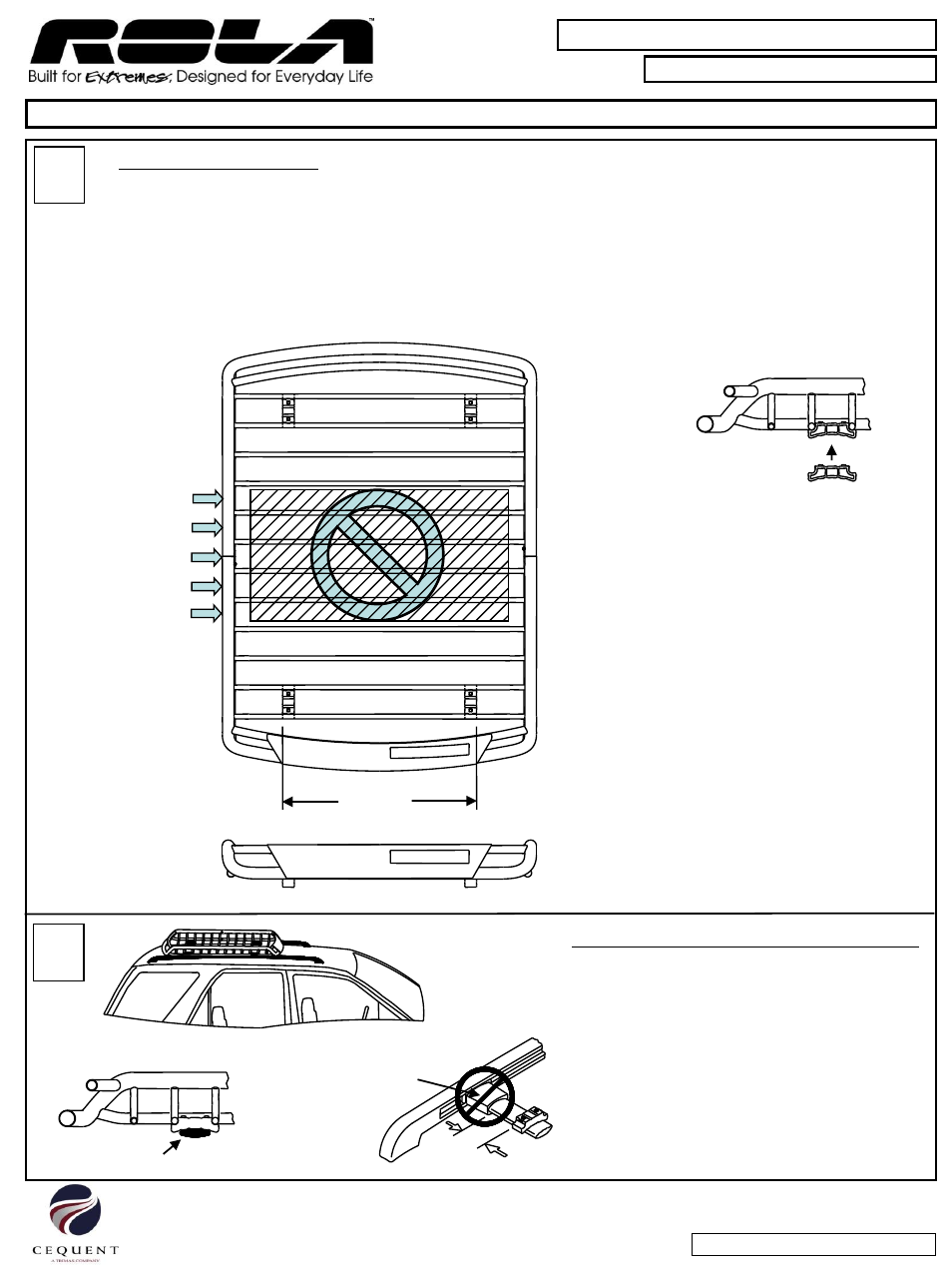

INSERT SPACER BLOCKS
•
Insert the spacer blocks into cargo basket in the position that matches the cross bar spacing set in step 3:
• POSITION 1 (37.50”)
• POSITION 2 (33.75”)
• POSITION 3 (30.00”)
• POSITION 4 (26.25”)
• NOTE: Locate the spacer blocks in the widest position possible.
(The location of spacer blocks varies by vehicle.)
• WARNING: The minimum fore/aft distance between the spacer blocks is 26- 1/4”.
Roof Top Carrier
59504
Page 3
The spacer blocks
snap onto bars.
5
LOAD BASKET ONTO VEHICLE CROSS BARS
•
Center basket over your vehicle’s cross bars
so that the spacer blocks rest on top of cross
bars.
• Check and adjust cross bars so they are
centered with spacer blocks.
• Adjust the side-to-side position of spacer
blocks so that they are centered in the cargo
basket and a minimum of 25” apart (see
diagram above).
• DO NOT locate spacer blocks on top of cross
bar brackets (if applicable).
½”
Do not locate spacer
blocks on top of
cross bar brackets.
cross bar centered
25” MIN.
Do not attach
mounting brackets
in shaded area
