Draw-Tite 59504 ROOF TOP CARGO CARRIER - Manual (Page 2)

Product Code:
Product Name:
Cequent Performance Products Inc
47774 W. Anchor Court
Plymount, MI 48170
Cequent Help Hotline: 1-888-521-0510
www.rolaproducts.com
59504N Rev D 7-06-09
1
2

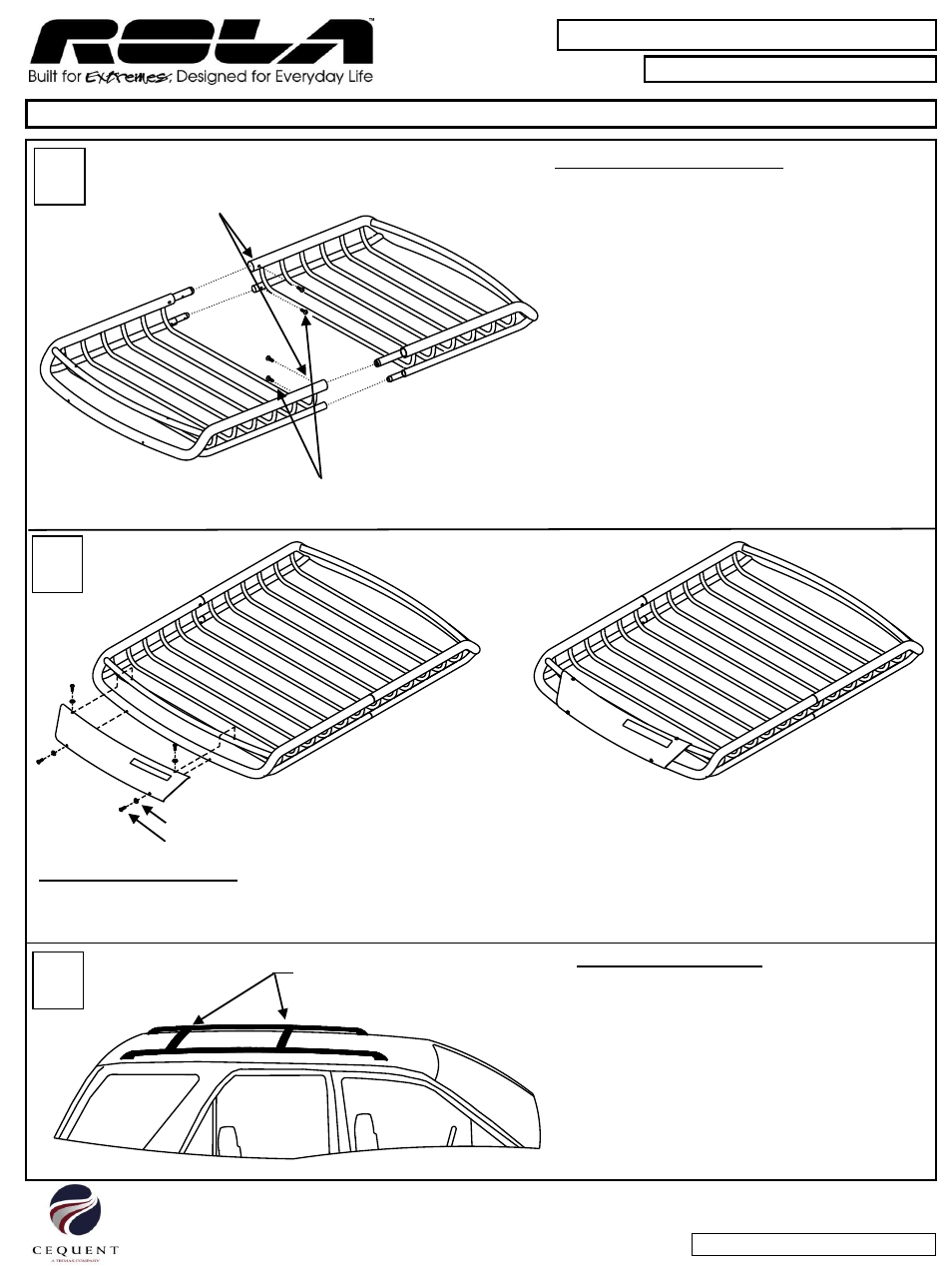

ASSEMBLE CARGO CARRIER
• To assemble the cargo carrier basket, place the
two halves of basket on a flat non-marring
surface.
• Slide both halves of roof basket together.
• Line up the holes in locator tubes with the slots
in other half of cargo basket.
• Secure locator tubes in place with self-tapping
screws.
ATTACH AIR DEFLECTOR
•
Line up the holes in air deflector with the four holes in the front cross tubes of cargo carrier basket. Install four #10 self-
tapping screws with rubber washers as shown. Tighten screws until the rubber washers start to compress
– DO NOT
OVER TIGHTEN!
Roof Top Carrier
59504
Page 2
3 POSITION CROSS BARS
•
Adjust your cross bars to one of (4) four
available settings:
• 37- 1/2” center to center
• 33- 3/4” center to center
• 30” center to center
• 26- 1/4” center to center – Minimum
• NOTE: It is recommended to use the
widest setting for optimum load
distribution.
• Leave cross bars loose at this step.
cross bars
Rubber Washer
Screw, #10-32 (Self Tapping)
Please read all instructions carefully before assembly, installation and/or use of this product.
SELF-TAPPING SCREW
(4) PLACES
LINE UP HOLES
