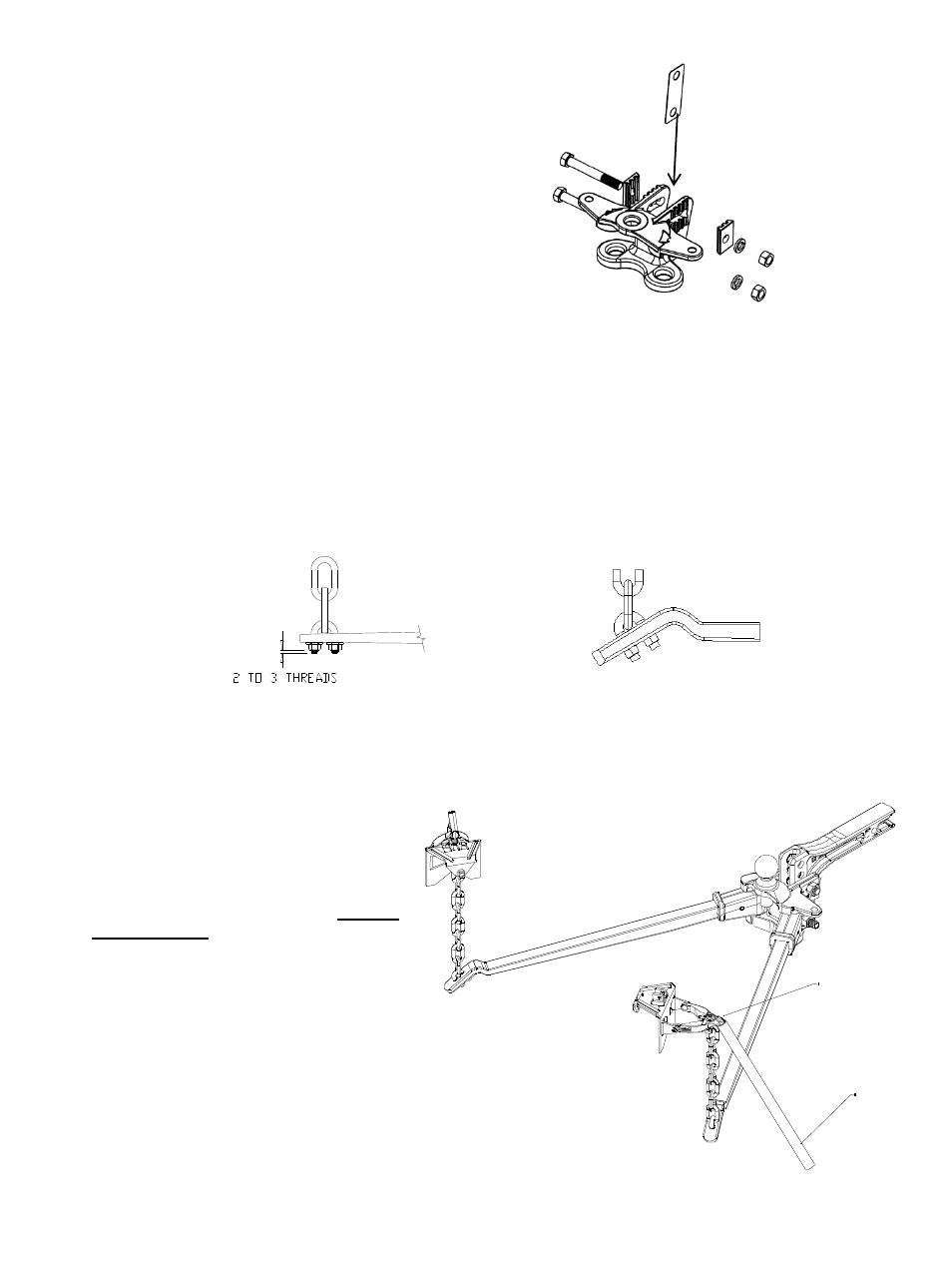

2. Shim will not begin to fit between the head and hitch bar. If this is the case, discard shim and continue
installation. The existing gap is acceptable

3.

Shim will not go in far enough to reach bottom hole.

If this is the case, cut shim in half and use only the

top half for the top bolt. Discard bottom half of shim.

CAUTION: Washer MUST BE aligned parallel with teeth on ballmount. Re-check washer alignment after nut is
tightened. Equal number of teeth must show at top and bottom. Teeth can be stripped when loaded if not properly
aligned.

INITIAL HOOK UP

NOTE: Car and trailer should be loaded and ready for travel before final leveling.

Pick reference points on front wheel well. Measure and record distance to pavement.

Front wheel well to pavement ___________________

Attach chains to spring bars using U-bolts, flat washers, and locknuts. Let 2-3 threads protrude below locknut. Chain
must not bind.

STANDARD SPRING BAR

INTEGRATED CAM SPRING BAR

Using tongue jack lower coupler onto ball and close coupler latch.

Hold the spring bar away from you (trunnion ribbed side up). Set the bottom knob of the trunnion into the lower socket of
the ballmount (G) and slide the knob into the top slot of the ballmount. The spring bars will fit on either side as they are
not made right or left handed.

Position the snap up brackets on trailer

"A" frame so that the chain on the end of

the spring bar is approximately vertical.

Turn 1/2 X 3-1/2 bolt until it contacts frame.

Then tighten 1/4 turn with wrench. DO NOT

OVERTIGHTEN.

Raise trailer tongue and rear of car with

jack. Lower yoke of snap up bracket until

it is parallel with the ground, and slip the

closest link over the hook (If there are

less than 5 links between hook and u-bolt

adjust ballmount angle rearward, and repeat

procedure). With the snap up bracket

handle over the yoke, raise until yoke

has passed “over-center”. Slide the safety

pin through the small hole to lock the yoke

in place. Repeat for other side.

Fig.2

SNAP UP
HANDLE

PLACE CLOSEST
LINK ON HOOK
