Installation Instructions
Chevrolet Silverado 2500 HD, 3500 HD
GMC Sierra 2500 HD, 3500 HD
Does not fit Denali HD due to extensive fascia cutting
Note: Fascia trim required. Obtain vehicle owners approval before cutting
Part Numbers:
65056
License plate holder relocation
and/or modification required to
install hitch, see 49802 or 5443
sold separately.

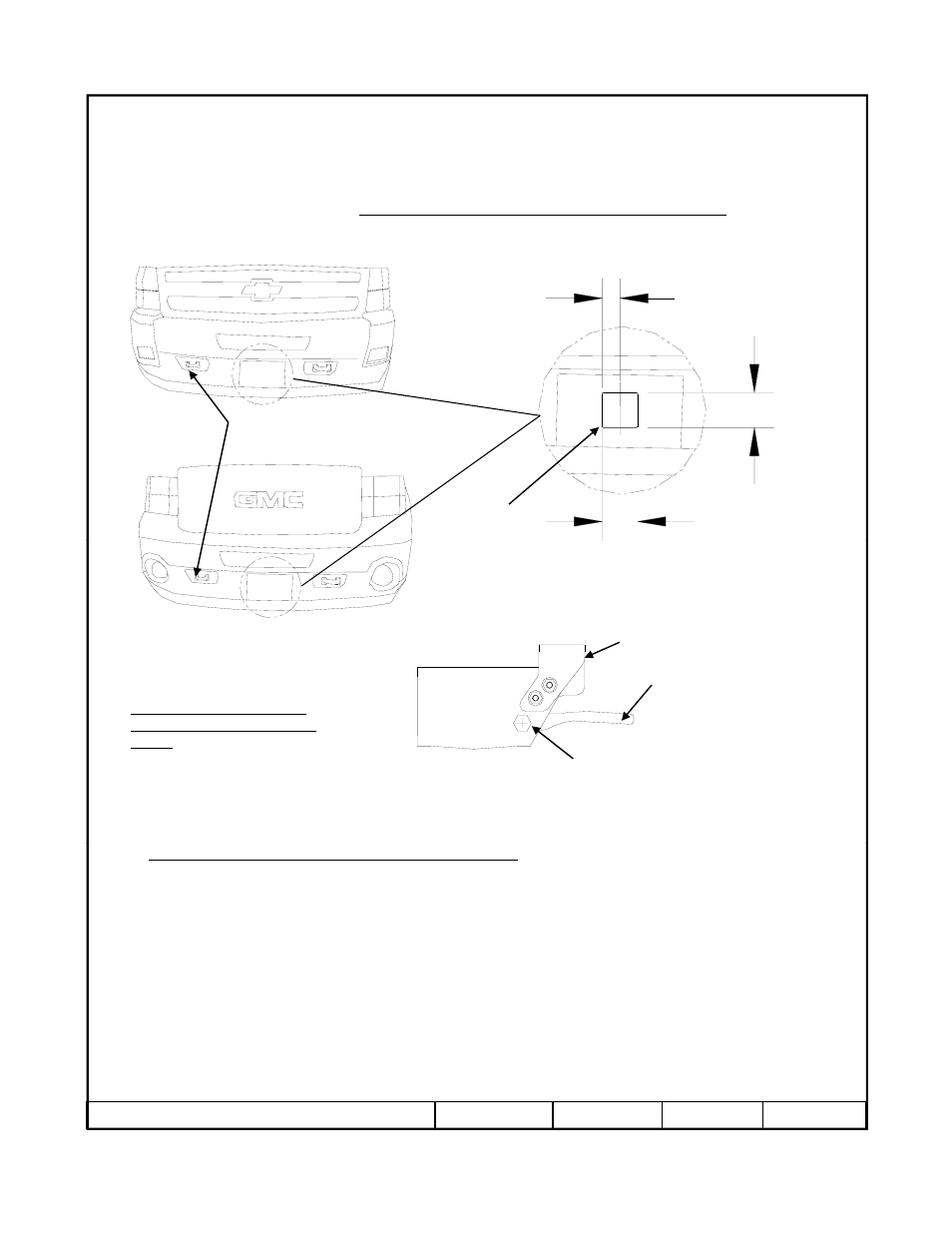

1-5/8"(1.625) [41.275 mm]
Existing tow hook bolt.
(Both sides)
3-1/4“ (3.25) [82.55 mm]
3-1/4“ (3.25) [82.55 mm]
Fascia
Cutout
Tow hook
Bumper support
NOTE: If front mounted license plate is present, license plate holder relocation and/or modification required to install hitch,
see 49802 or 5443 sold separately.
Measure from tow hook bolt.
Fascia trim required. Obtain
vehicle owners approval before
cutting
Note: Obtain vehicle owners approval before cutting. Trim fascia for receiver tube.
1. Measure from the tow hook bolt center to the ground.
2. Subtract 4-1/8”(4.125)[105 mm] from step 1. This is the distance from the ground to bottom of fascia cutout.
3. Mark the location of the bottom of fascia cutout on front of fascia.
4. Measure 3-1/4” up from the bottom of fascia cut. This is the location of the top of fascia cutout.
5. Locate the center of the fascia from left to right and mark 1-5/8” each side. ( 3-1/4” square)
6. Drill (4) 3/8” hole in corners.
7 C f ll t th 3 1/4” h l f th f i 7. Carefully cut the 3-1/4” hole from the fascia.
z 2010 Cequent Performance Products Sheet 2 of 6 65056N 9-2-10 Rev. A
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent
entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a
vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and
SAE J684.
