2.2 Connecting bus lines and power supply

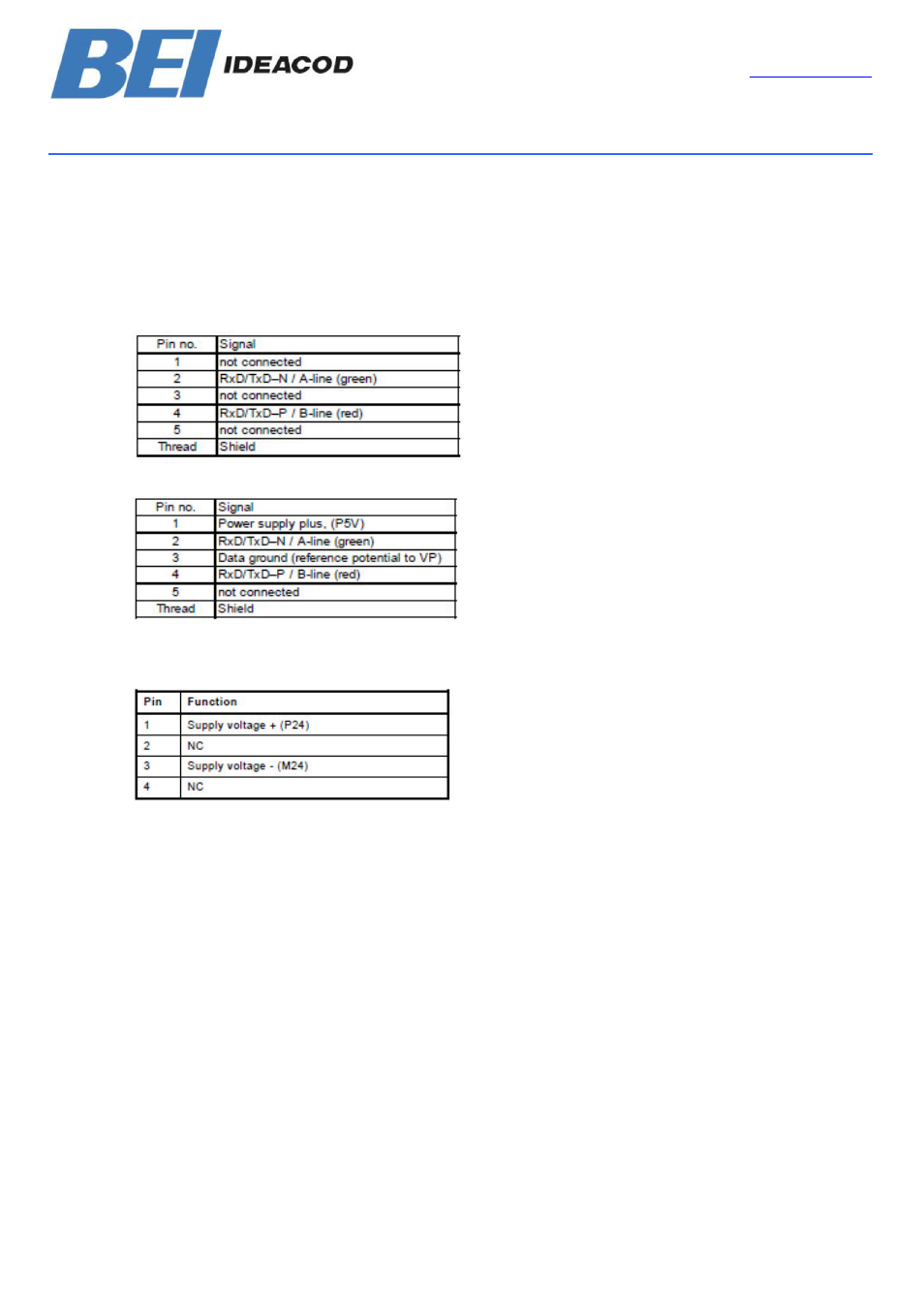

Pin assignment of the B coded 5 pin male M12 connector on the device side:
Pin assignment of the B coded 5 pin female M12 connector on the device side:
Power supply plus (5V) and Data ground are insulated from the supply voltage. Using power supply (P5V)
and Data ground with an external termination line.
Pinning for A coded 4 pin male M12 Power supply connector,
Power supply voltage between +5V DC and +30V DC
