7.2 Configuring the encoder

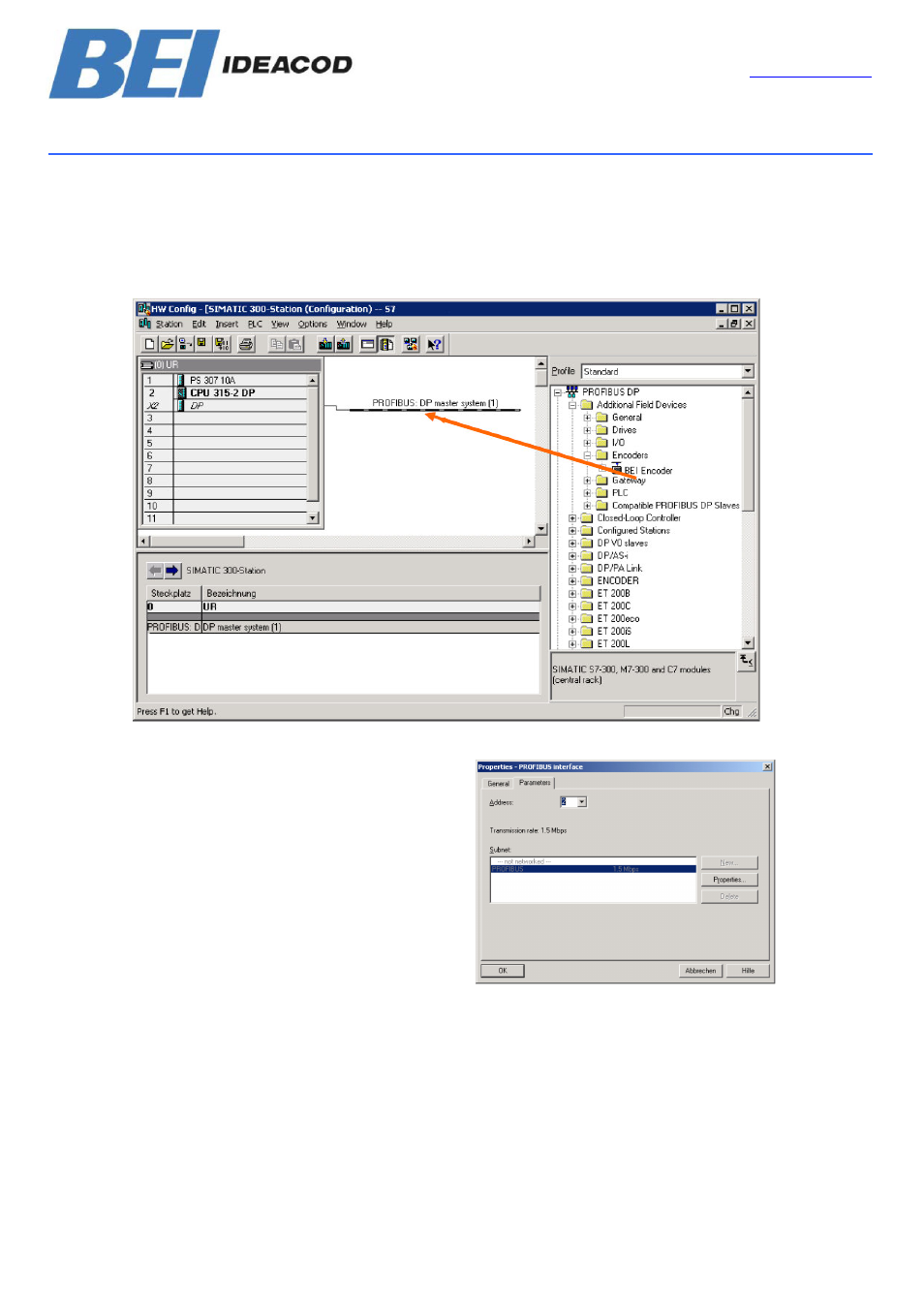

After inserting the Profibus master system in the
hardware configuration (“Insert” – “Master
System”) the BEI IDEACOD encoder can be
chosen from the hardware catalogue and
added to the profibus network: Select the
device “POSI+” and drag it with the mouse to
the network (or choose the network and
double click the “BEI IDEACOD encoder”).
Now the slave address has to be entered (has
to be equal to the address setting in the
connection cap).
