7 Configuring with STEP 7
In the following the configuration of the BEI
IDEACOD encoder with the configuration tool
STEP 7 is shown exemplarily. In this example
STEP 7 Version 5.1 and the CPU 315-2DP
(profibus-master integrated) are used. If there
are questions about other software tools
please contact the manufacturer.
7.1 Installing the GSD file
If BEI IDEACOD encoders are used for the first
time it is necessary to install the GSD file
(„POSI0C22.gsd“) to take over the encoder
into the hardware catalogue of the tool:

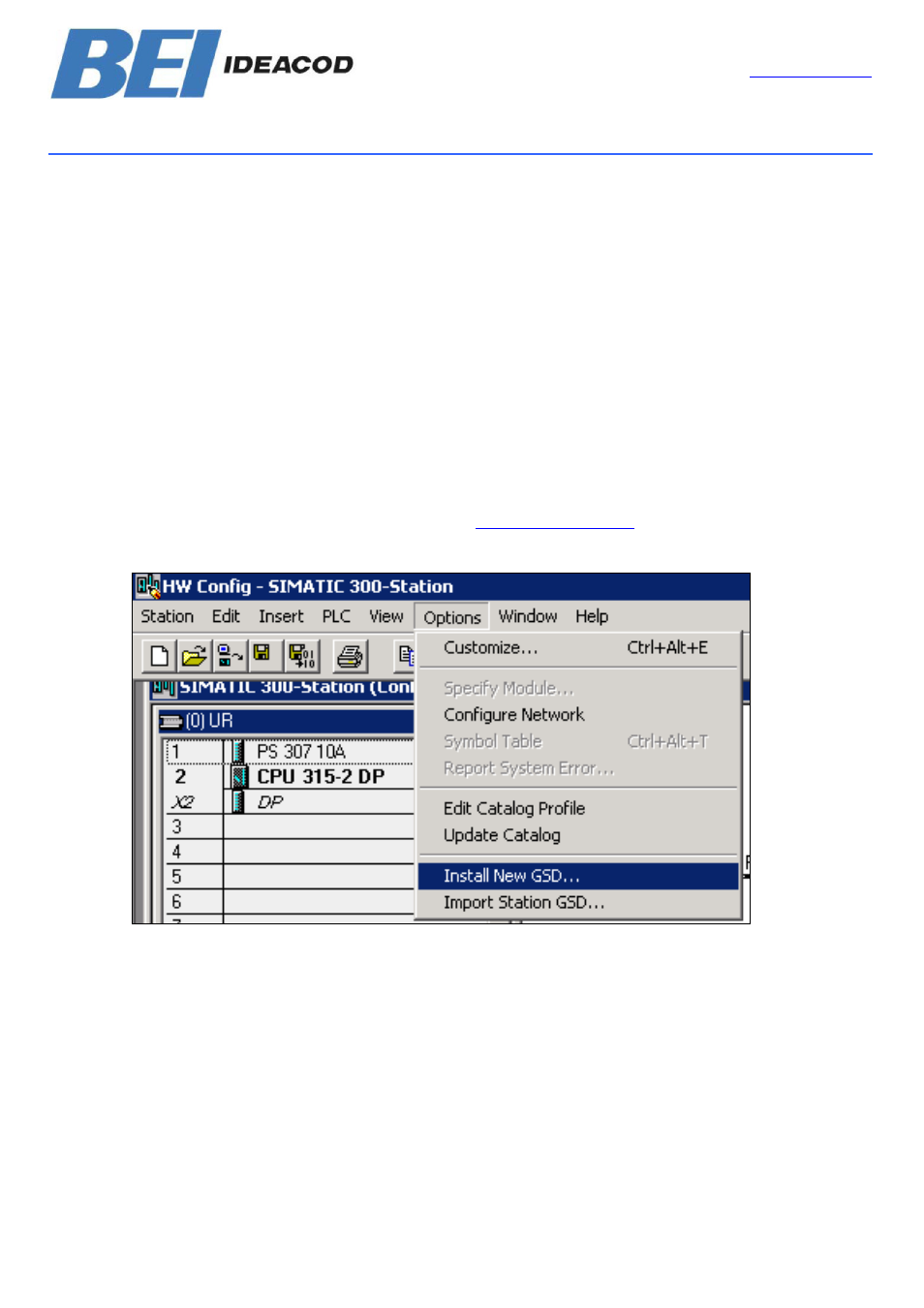

Choose “Install New GSD” in the “HW Config”-
window of the project (menu item “Options”)
and select the GSD-file (“POSI0C22.gsd”).
The GSD file is available from BEI IDEACOD, it
can be downloaded from our homepage
www.bei-ideacod.com .
After the successful installation of the GSD file
the BEI IDEACOD encoder can be found in the
hardware catalogue under „PROFIBUS-DP“ –
„Additional Field Devices“ – „Encoders“ – „
POSI+ “.
In order to represent the encoder with a
bitmap in STEP7 the bitmap file „POSI.bmp“
has to be installed. The procedure is the same
as with the GSD file.
