7.4 Setting the parameters

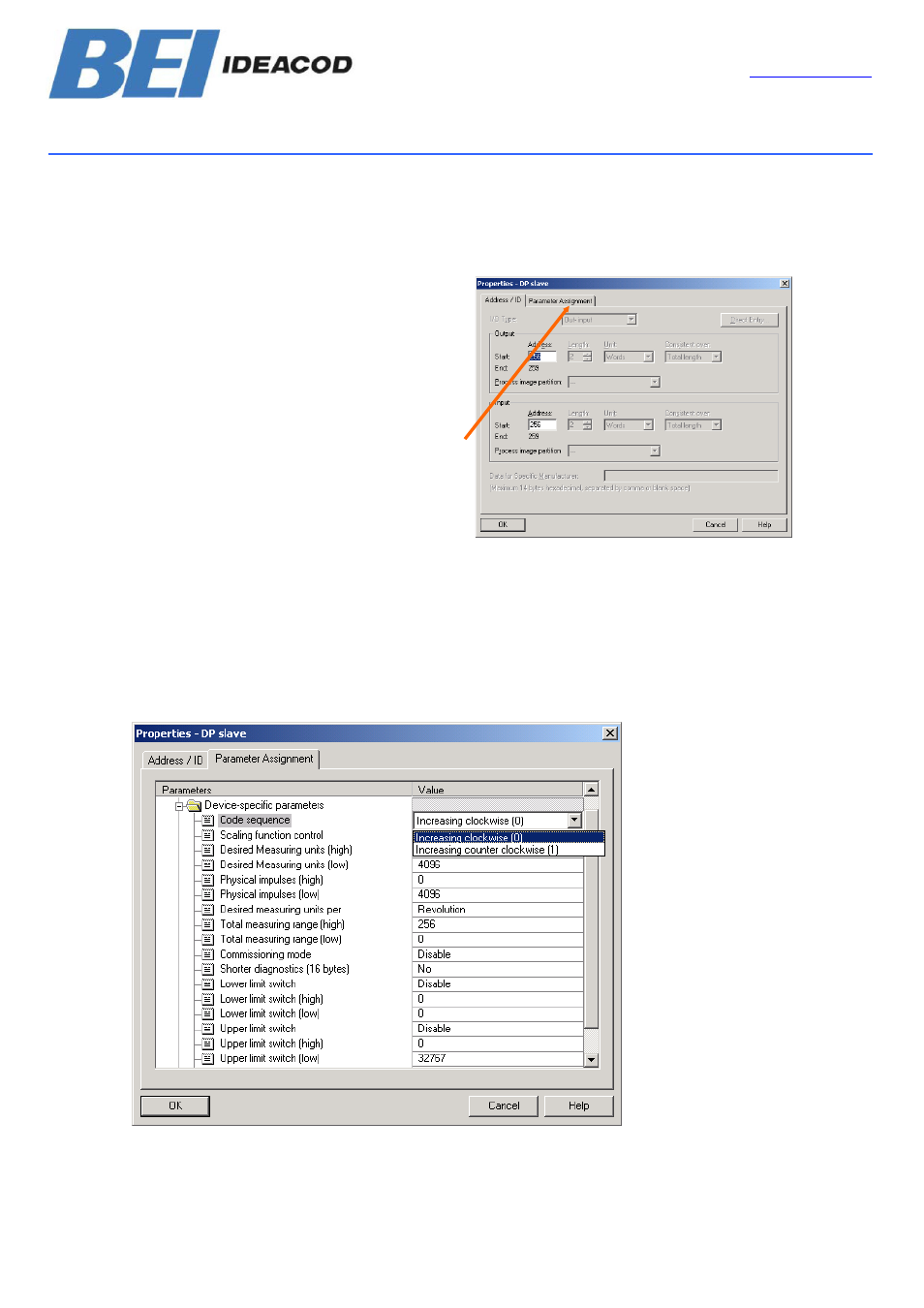

Select the encoder in the hardware
configuration and double click slot one in the
configuration table of the encoder. The dialog
„Properties – DP slave“ appears. The input and
output addresses can be changed (if desired).
To set the encoder parameters the tab
“Parameter Assignment” has to be selected.
After
choosing the „Device-specific
parameters“ the different parameters
(depend on the encoder version) can be set.
If several possibilities are offered for one
parameter the parameters list is opened by
double clicking on it. Numerical values have
to be entered directly. The example shows the
parameters of encoder version BEI IDEACOD
2.2, the version with the highest functionality.
