Analog Way Orchestra2 - Manual (Page 37)

37
6.1 Matrix setup
6. WORKING WITH A MATRIX
6.1 Matrix setup
6.2 Matrix configuration

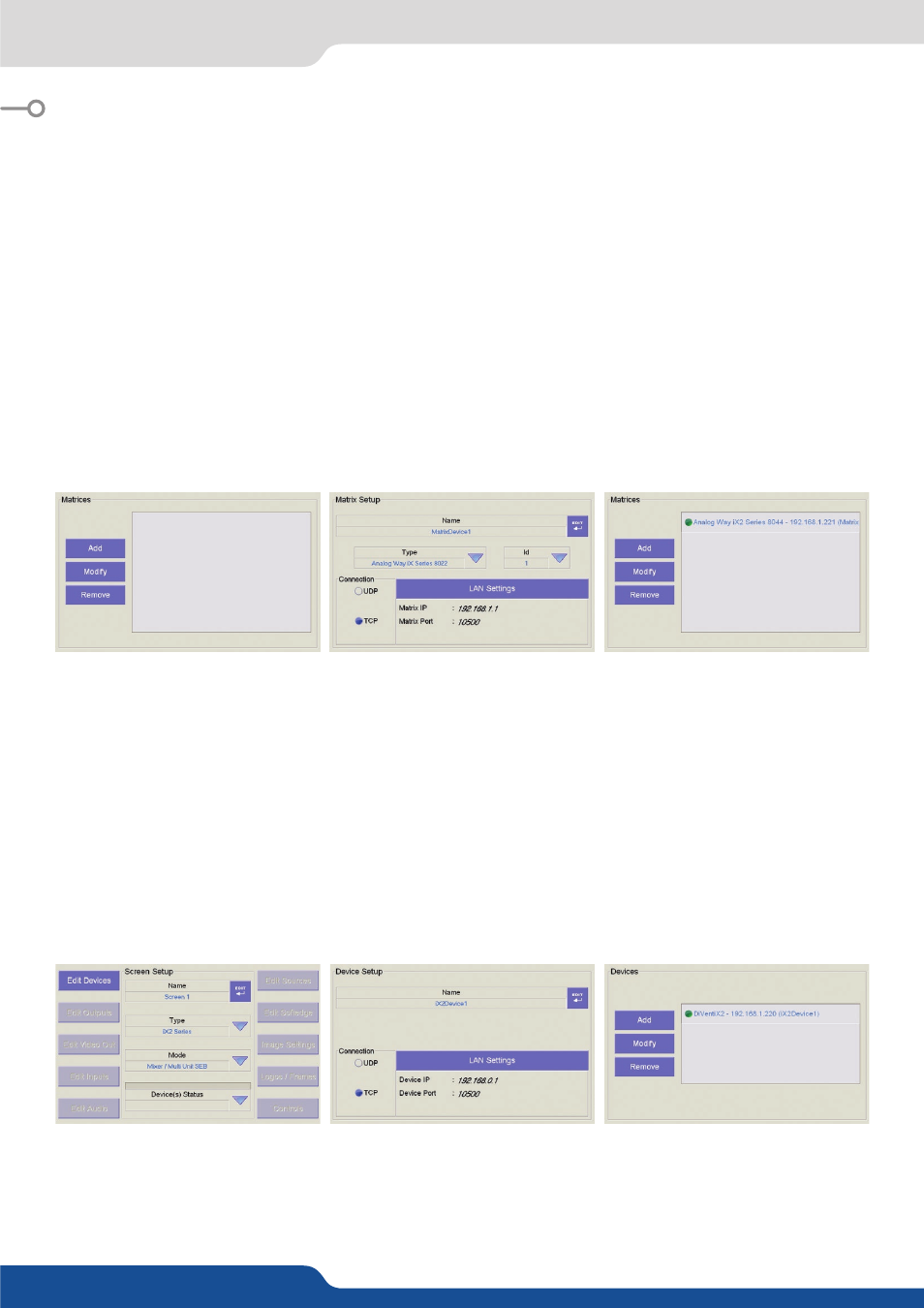

If you are working with a matrix in your setup, you must add it into your show. To do so, follow these few
steps:
1. On the Orchestra² show page, press Matrix Setup to enter the Matrices page.
2. Press Add , then press Edit if you wish to rename your matrix.
3. From the Type dropdown menu, select the type of matrix you are using.
4. Select the connection protocol in the Connection panel (we recommend using TCP).
5. Press LAN settings to enter the LAN settings page, and configure the LAN settings accordingly.
TIP: Please be sure your LAN settings correspond to those of your matrix device.
6. Press the OK button to return to the Matrices page, which should now display the matrix you just configu-
red.
7. Press the OK button again to return to the Orchestra² show page.
Once the matrix has been added, you must add the slave device to a Screen.
1. Select the Screen you wish to work in, and press Screen Setup .
2. Press Edit if you wish to rename the Screen, and choose the slave device type from the Type dropdown
menu.
3. Press Edit Devices , then press Add on the Device Setup page.
4. Press Edit if you wish to rename your device, then select the connection protocol for the device.
5. Press LAN Settings to configure the IP address and port of the device.
6. Press the OK button twice to return to the Devices page, which should now display the device you have
configured.
7. Press the OK button to return to the Screen Setup page.
If you are working with an 8x4 matrix (8 in, 4 out) for example, you will need to define the links between the
slave device and the matrix for the Orchestra² to route signals properly.
