27

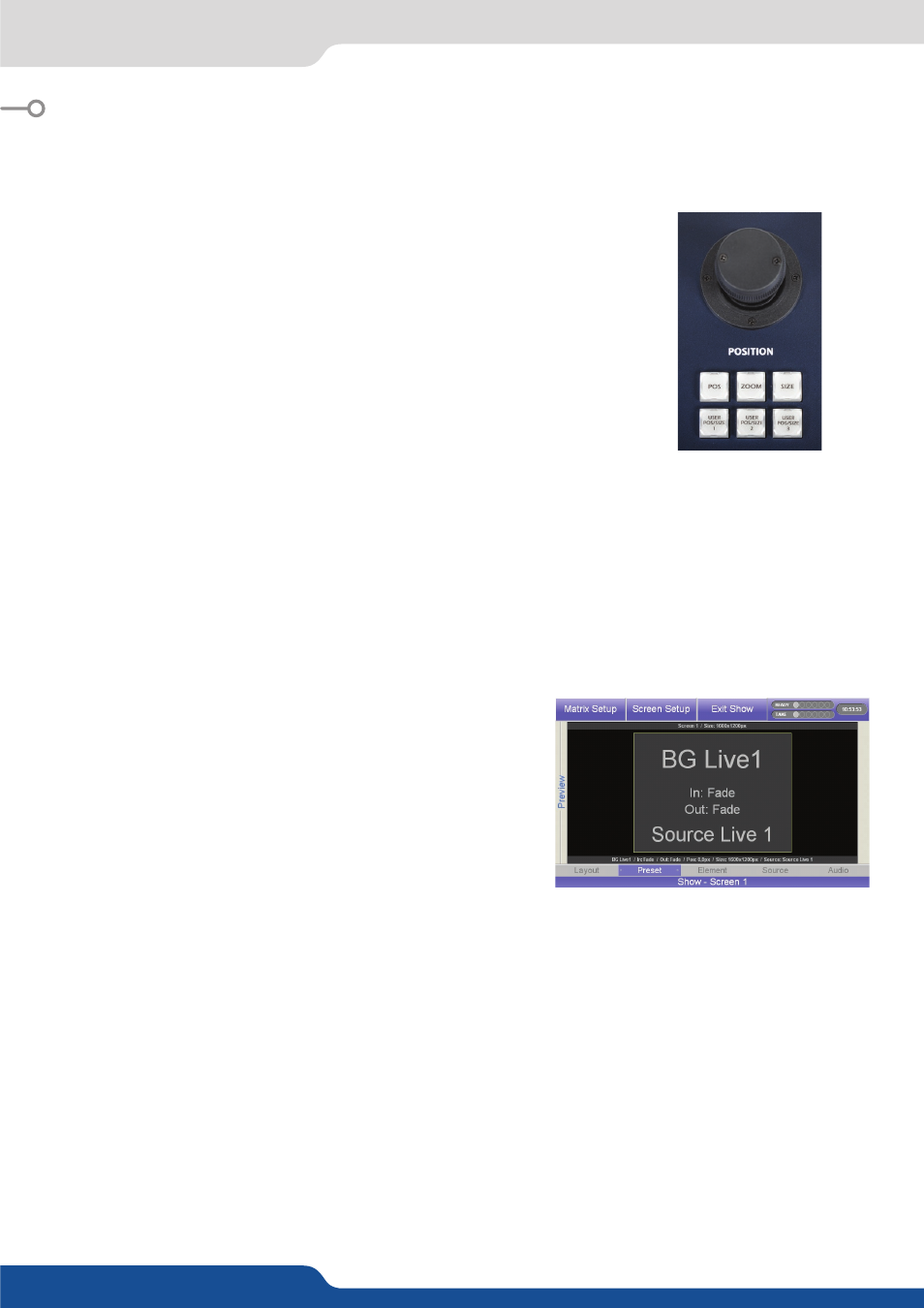

5.1 Using the joystick
The joystick in the Layout section of the Orchestra² allows you to move,
resize or zoom any selected element on the touch screen.
To use the joystick to position elements on screen, select an element (logo,
PIP...) and press the POS button, then, tilt the joystick left to move the
selected element left, tilt right to move right, and so on.
To use the joystick to resize elements on screen, select an element, and press
the SIZE button. Tilt the joystick left to scale it down horizontally, tilt right to
scale it up. Tilt joystick up and down to scale it vertically. You can also rotate
the joystick to scale elements up (clockwise) or down (counterclockwise)
both vertically and horizontally.
When using the joystick to zoom elements on screen, select an element
and press the ZOOM button. When the ZOOM button is active, you can
either zoom into your source, by pressing the SIZE button then tilting the
joystick left to zoom out, or right to zoom in, and so on. Or, you can press
the POS button, then tilting the joystick in different directions moves the
zoomed source around in those directions inside the element.
Any selected layer (Frame, Live Background, PIP, Logo) on the
Orchestra² is represented graphically on the Settings section
tactile screen as a yellow rectangle outline. Information on
the layer is written in the layer outline rectangle for users to
access information quickly and intuitively. The selected layer is
composed of a outline, called Element, which you can access
by pressing Element on the Preview page, and a Source (image)
which you can parameter by pressing Source on the Preview
page. The element or source settings can also be accessed by
turning the last knob of the Settings section left or right.
5.2.2 Snap Function
The snap feature is a powerful tool which helps you to reach all intuitive layers positions. With this tool, your
entire PIP/logo move will be automatically positioned at the closest predefined position. Enable or disable
this function, by long pressing the POS or SIZE buttons.
Once activated, simply use the joystick, each time the layer will be next to a predefined point, the position/
size will be adjust by the unit.
It can be very useful when PIPs are disperse and you want to adjust PIPs below the others, or on the same
line.
5.2.3 Element Settings
To access the element settings of any selected layer (Frame, Live Background, PIP, Logo) on the Orchestra²
press Element at the bottom of the Preview page, or turn the last knob of the Settings section.
Joystick for easy adjustments
(position or size). Adjust the
selected PIP or Logo, X-Axis (Left/
Right), Y-Axis (Up/Down).
5.2.1 Layer settings
5. OPERATING THE ORCHESTRA²
5.1 Using the joystick
5.2 Layer settings
