Analog Way Orchestra2 - Manual (Page 32)

32
5.6 Working with logos
To add a logo to your Screen, proceed as follows:

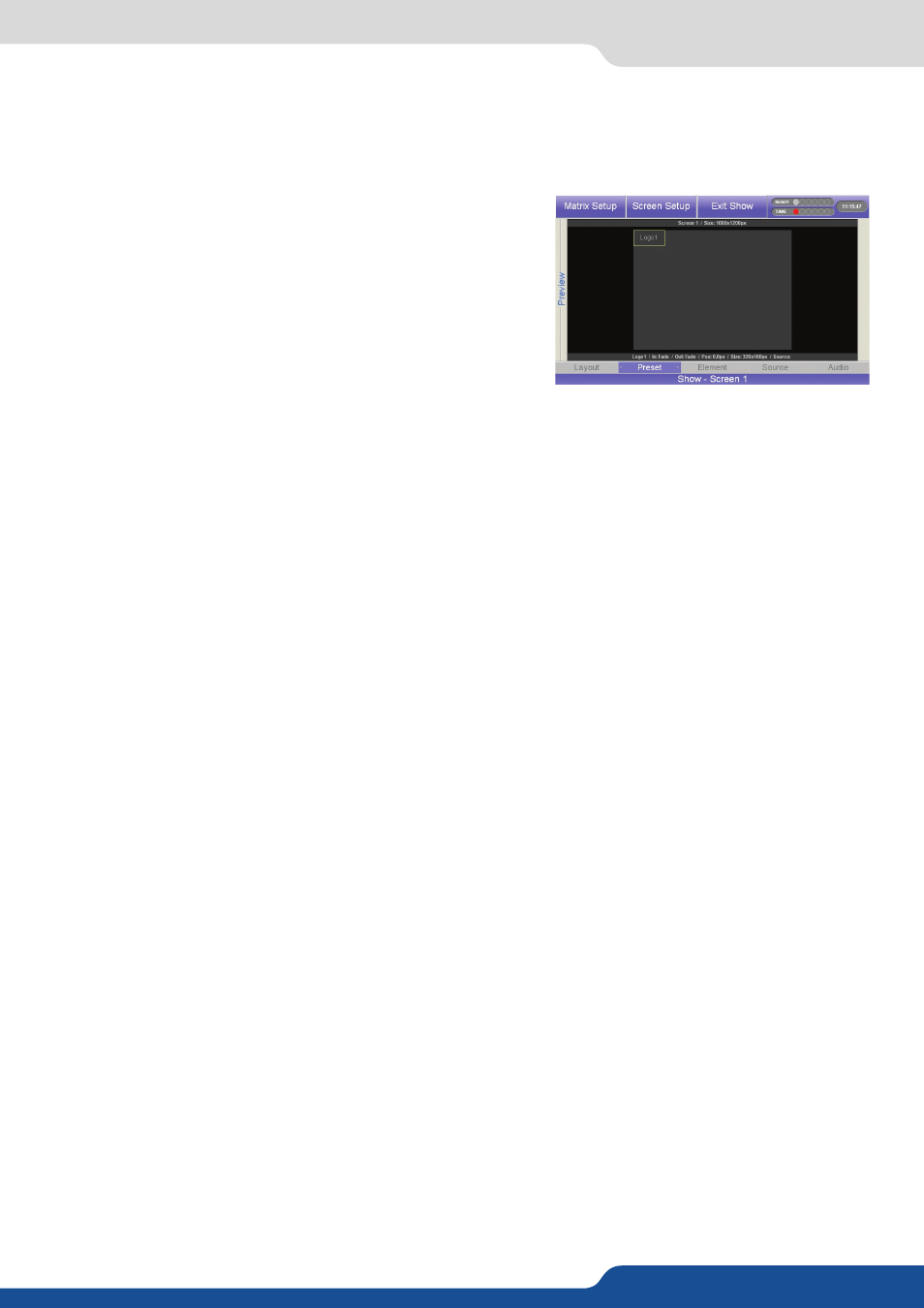

1. Press the ADD LOGO button to activate the Logo outline
rectangle on screen. The touch screen of the Orchestra² will
display a yellow rectangle, indicating the logo position.
2. The blue Source Preview section light will blink to indicate
you can select the source you want to use as a logo. Press a
Source Preview button (#1 to #8). The chosen logo should now
appear on your Preview output in the Logo rectangle, and on
the touch screen of the Orchestra² in the shape of a yellow
rectangle above any Frame or live element.
3. Press the TAKE button to view the result on your Main output.
4. To add another logo, follow steps #1 to #3 again.
5.6.2 Selecting a Logo
To select the LOGO you wish to work with, press several times on the SELECT LOGO button, or press on the
LOGO on the touch screen of the Orchestra².
5.6.3 Manipulating a Logo
Logos on your Screen can be positioned anywhere (keying attributes are available only during capture, see
also Logos & Frames).
To position a logo:
1. Select the logo you wish to move.
2. In the Layout section, press the POS button, and move the logo with the help of the joystick (see also Using
The Joystick).
3. When you have reached the desired position, press the TAKE button to view the result on the Main output.
5.6.4 Logo depth
The Logo depth allows users to move Logos up or down through the successive layer hierarchy. In other
words, you can change the order of a Logo from beneath another Logo to above it, or vice-versa.
1. Select the Logo you want to move up or down.
2. In the Preset Edition Section, press the LOWER button to move the Logo down, press the RAISE button to
move the Logo up
5.6.5 Clearing a Logo
To clear a Logo from your Screen, proceed as follows:
1. Select the LOGO you wish to clear.
2. Press the CLEAR button once. In the Orchestra² Settings section, the touch screen will ask to confirm in
the form of a message on a yellow banner at the bottom of the screen. Press the CLEAR button again to
confirm. The LOGO will disappear from the Preview output.
3. Press the TAKE button to view the result on your Main output.
NOTE: To clear all logos present on screen, in step #2, press the CLEAR LOGOs button rather than the CLEAR
button.
5.6.1 Adding a logo
5.6 Working with logos
