Operational dimensions, Id chuck assembly – Climax FF6200 FLANGE FACER User Manual
Page 5
Climax Portable Machining & Welding Systems Web site: climaxportable.com
Worldwide Phone:
1.503.538.2185 N. America Toll-Free: 1.800.333.8311 Fax: 1.503.538.7600 E-mail: [email protected]
page 5

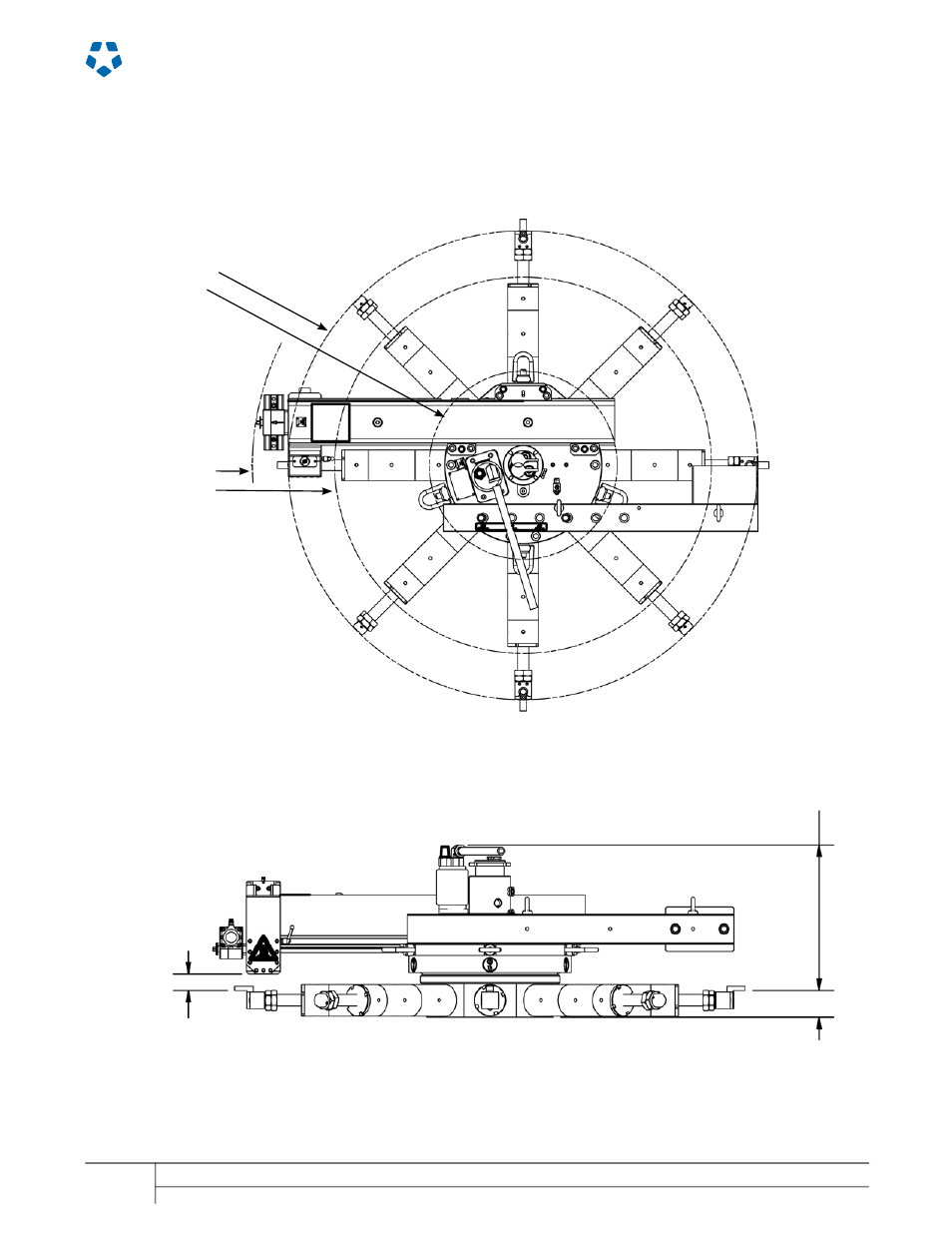

OPERATIONAL DIMENSIONS
Dimensions in Inch (mm)
ID Chuck Assembly
Swing diameter,
Max: Ø57.7 (1465.6)
Min: Ø40.1 (1018.5)
Max Rotating Height:
Single point machining:
Ø14.88 ± 0.25 (378.0 ± 6.4)
Dim A
Dim A
(all ± 0.25 (6.4):
Max. clearance with tool head fully retracted
Turning arm, single point mach only: 1.66 (42.2)
Turning arm, grinding:
1.5 (38.1)
2.75 ± 0.25 (69.9 ± 6.4)
minimum bore depth
NOTE: ± 0.25 (± 6.4) is travel of leveling foot
Chucking and Machining Diameters:
Max: Ø50.0 (1270.0)
Min: Ш20.0 (508.0)
