TOOL CONFIGURATIONS
Climax Portable Machining & Welding Systems Web site: climaxportable.com
Worldwide Phone:
1.503.538.2185 N. America Toll-Free: 1.800.333.8311 Fax: 1.503.538.7600 E-mail: [email protected]
page 3
The FF6200 can be configured to meet your specific machining needs.
5 Hydraulic Power Unit, continued
Single Pump with Air (for use with grinder)
HPU 230V, 10 HP (7.5 kW) single with air 62759
HPU 380V, 10 HP (7.5 kW) single with Air 62760
HPU 415V, 10 HP (7.5 kW) single with Air 62761
HPU 460V, 10 HP (7.5 kW) single with Air 62762
HPU 575V, 10 HP (7.5 kW) single with Air 62763
Pendant Cable, Hose
0.5 in (12.7 mm) Hose and Pendant Cable Assy, 62799
20 ft (6.1 m)
0.5 in (12.7 mm) Hose and Pendant Cable Assy, 62800
30 ft (9.1 m)
0.5 in (12.7 mm) Hose and Pendant Cable Assy, 62801
50 ft (15.2 m)
0.5 in (12.7 mm) Hose and Pendant Cable Assy, 62802
100 ft (30.5 m)
6 Turning Arm Assembly
Turning Arm Assembly with Single Point Tool Head 57875
7 Counterweight Assembly
Counterweight Assembly 58177
8 Chuck Assembly
ID Chuck Assembly 57949
OD Chuck Assembly 61496
ID/OD Chuck Assembly 61495
9 Shipping Container
Wooden Crate for ID Mount Machine 58339
Metal Container for ID Mount Machine 59305
Wooden Crate Set for ID/OD Mount Machine 62641
Metal Container Set for ID/OD Mount Machine 61722
Newberg, OR USA 97132
WWW.CPMT.COM inside U.S. 1-800-333-8311

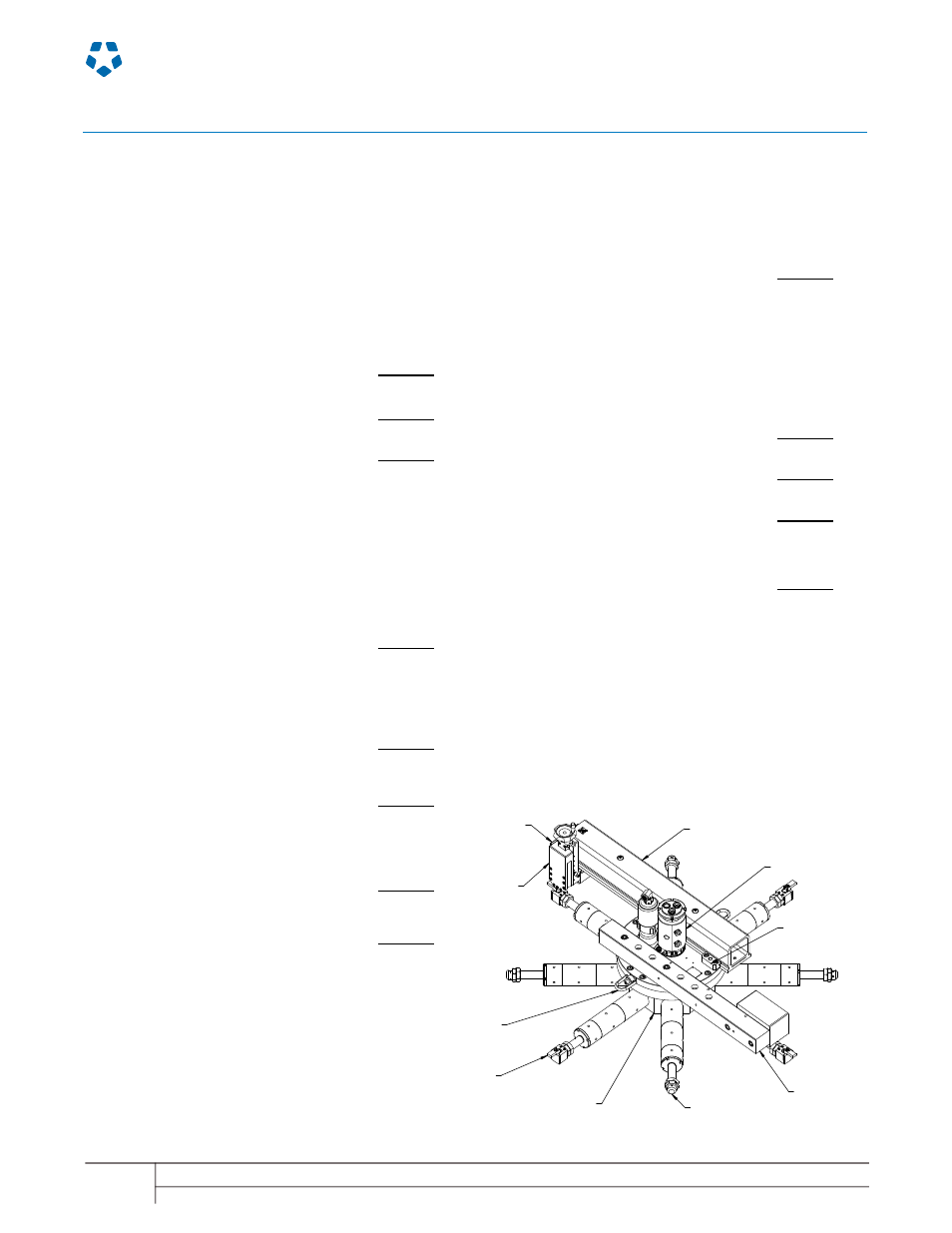

FF6200 FULL MACHINE ASSY MODEL FF6200 FLANGE FACER 20" TO 50"
SWIVELING
TOOL HEAD
TOOL ARM
20 TO 50 INCH RANGE
LEVELING
FOOT
COUNTERWEIGHT
ASSEMBLY
ROTARY
UNION
CHUCKING ASSEMBLY
20 TO 50 INCH RANGE
PNEUMATIC
FEED BOX
NON-LEVELING
FOOT
TOOL ARM
CLAMP
LIFTING
EYES
Overall Machine View
To configure your FF6200
To configure your machine, please follow these steps.
1 Select a Base Package
2 Select a Feed Assembly
3 Select a Drive Motor Assembly
4 Select a Hydraulic Motor
5. Select an Optional Grinder Attachment
6 Select a Hydraulic Power Unit
8 Select a Turning Arm Assembly
9 Select a Counterweight Assembly
0 Select a Chuck Assembly
10 Select a Shipping Container
1 Base Package
Rotary table, tool kit, operator's manual 58182
2 Feed Assembly
Pneumatic Feed Assembly with Remote Air Control 58671
3 Drive Motor Assembly
Pneumatic Motor and Drive Assembly 58189
(Pneumatic drive system includes: Pneumatic
motor w/fittings and mount, rotary union, hoses,
feed trip valve, cam, and pneumatic
conditioning unit with low pressure drop out.)
Hydraulic Drive Assy with Feed Conditioning Unit 58191
**DOES NOT INCLUDE MOTOR **
(Hydraulic drive system includes: Hyd drive system
includes: Hyd motor mount, rotary union, feed trap
valve, cam, and feed pneumatic conditioning unit)
4 Hydraulic Motor
11.3 cu in (185.2 cu cm), 7 - 36 RPM 58331
14.4 cu in (231.1 cu cm), 5.5 - 29 RPM 59911
17.9 cu in (293.3 cu cm), 4.5 - 22 RPM 59912
22.6 cu in (370.3 cu cm), 3.5 - 17 RPM 58332
5. Optional Grinder Attachment
Grinding Attachment for Pneumatic Table Drive Motor 62537
Grinding Attachment for Hydraulic Table Drive Motor 62570
Grinder Rotational Gearbox
Slow Rotation Gearbox for Pneumatic 62542
Motor (gear ratio 160:1)
Slow Rotation Gearbox for Hydraulic Motor 69753
(gear ratio 160:1)
Grinder Tooling
Grinding Wheel 1.5 in (38.1 mm), CBN 125 Grit 62633
Grinding Wheel 2.25 in (57.2 mm), CBN 125 Grit 62634
5 Hydraulic Power Unit
For Hydraulic Drive Machine
Single Pump (single pointing only)
HPU 230V, 10 HP (7.5 kW) single 63264
HPU 380V, 10 HP (7.5 kW) single 63265
HPU 415V, 10 HP (7.5 kW) single 63266
HPU 460V, 10 HP (7.5 kW) single 63267
HPU 575V, 10 HP (7.5 kW) single 63268
