Climax VM1600 GATE VALVE GRINDING & LAPPING - Manual (Page 10)

Feb-10 / VM1350-1600 Gate Valve Grinding & Lapping Machine Brochure.doc Page 10 of 10

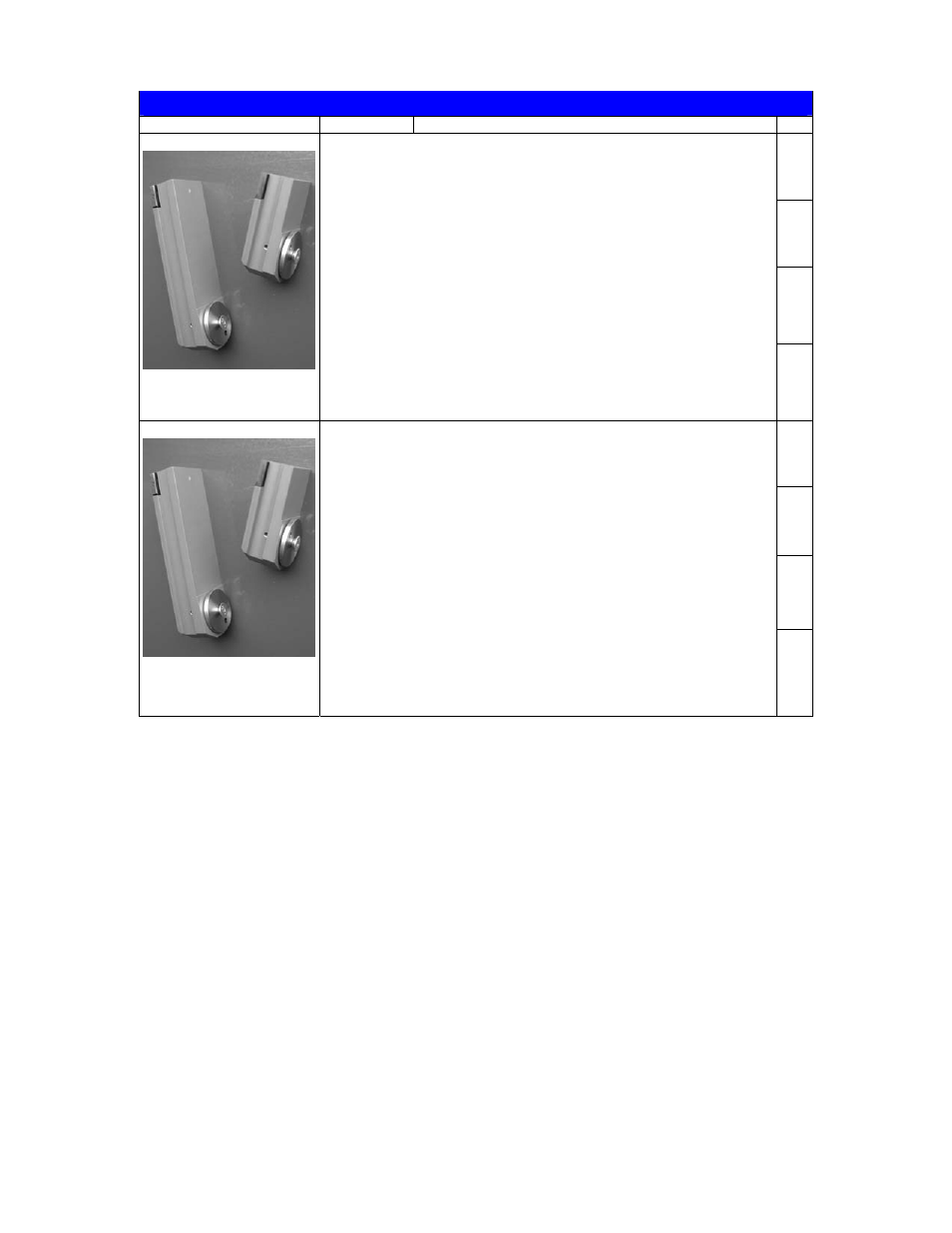

Accessories
P/N Description
Planet Arms 3 degree
The spindles of these arms are designed with a 3 degree
offset. These arms are made to rework the 3 degree relief
angle in gate valves
110-51S-N01 Planet arm #II 3 degrees (2.4”(60 mm) length) (each)
(A total of five required)
Outside grinding diameter 6.3”-13.0”(160-330 mm)
(diameter depends on selected planet wheel)
110-52S-N01 Planet arm #III 3 degrees (4.5”(115 mm) length) (each)
(A total of five required)
Outside grinding diameter 13.0”-21.7”(330-550 mm)
(diameter depends on selected planet wheel)
110-50S-L01 3 degree Planet Arm Set
Includes :

Planet arm #II 3 degree (5 pieces)

Planet arm #III 3 degree (5 pieces)
Planet Arms 5 degree
The spindles of these arms are designed with a 5 degree
offset. These arms are made to rework the 5 degree relief
angle in gate valves
110-61S-N01 Planet arm #II 5 degrees (2.4”(60 mm) length) (each)
(A total of five required)
Outside grinding diameter 6.3”-13.0”(160-330 mm)
(diameter depends on selected planet wheel)
110-62S-N01 Planet arm #III 5 degrees (4.5”(115 mm) length) (each)
(A total of five required)
Outside grinding diameter 13.0”-21.7”(330-550 mm)
(diameter depends on selected planet wheel)
110-60S-L01 5 degree Planet Arm Set
Includes :

Planet arm #II 5 degree (5 pieces)

Planet arm #III 5 degree (5 pieces)
Because CLIMAX is committed to product improvement, the machine you receive may be slightly different to the pictures above.
