tool configurationS
Climax Portable Machining & Welding Systems Web site: climaxportable.com
Worldwide Phone:
1.503.538.2185 N. America Toll-Free: 1.800.333.8311 Fax: 1.503.538.7600 E-mail: [email protected]
page 4

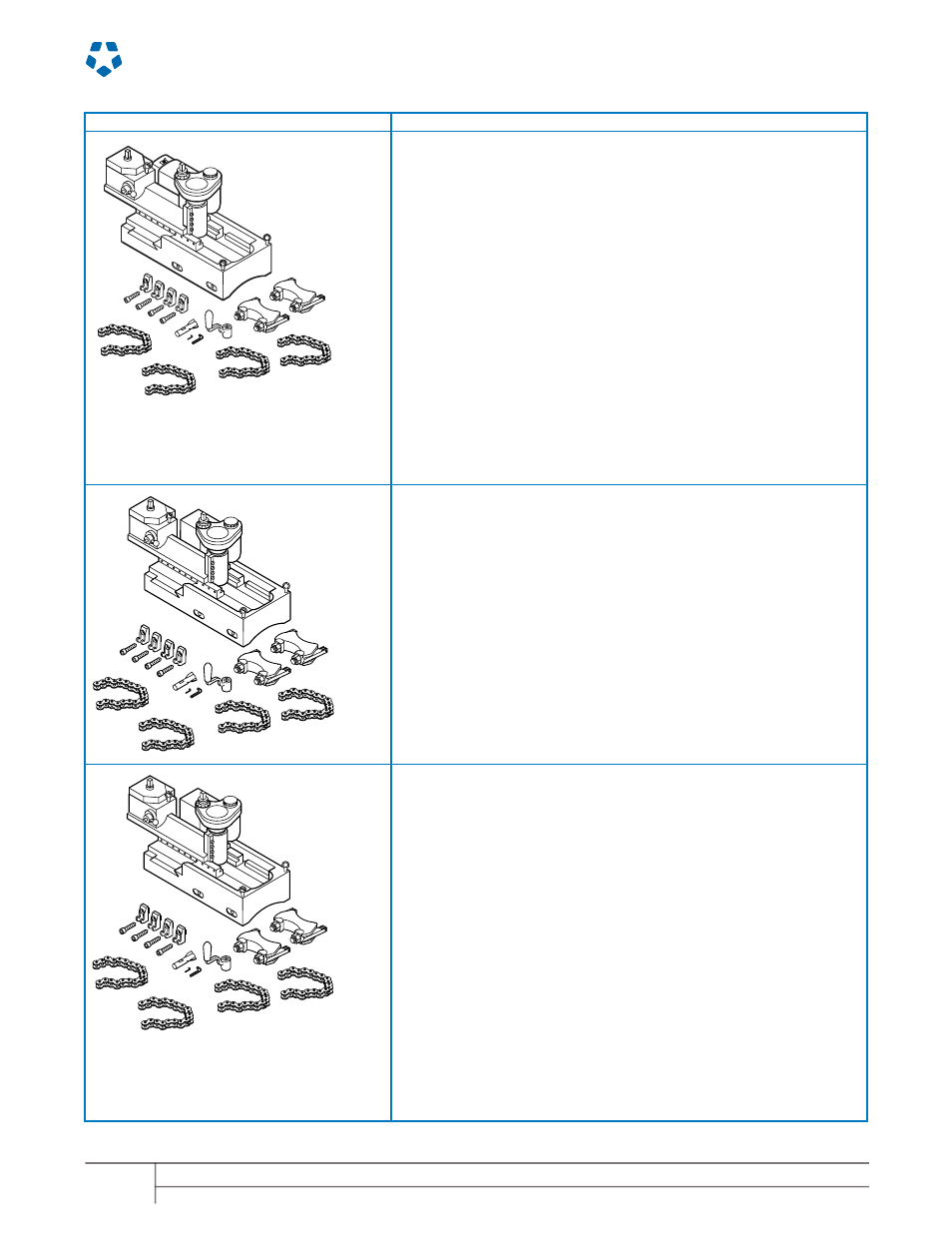

No. Description
KM4000 portable Key Mill, electric, all ce-compliant
Standard key mill Model KM4000 complete with 1.0 Hp (0.75 kW) electric
motor, chain clamp, end mill, hex wrenches, crank, speed control, and instruc
tion manual. Shipped in wooden crate.
10505 KM4000, inch 120V
Inch, 120V motor. 3/4-inch spindle
Approx. net weight 240 lb (110 kg).
10508 KM4000, metric 120V
Metric. 120V motor. 20 mm spindle
Approx. net weight 240 lb (110 kg).
10506 KM4000, inch 230V
Inch, 230V input /120V output motor. 3/4-inch spindle
Approx. net weight 240 lb (110 kg).
10509 KM4000, metric 230V
Metric, 230V input / 120V output motor. 20 mm spindle
Approx. net weight 240 lb (110 kg).
KM4000 portable Key Mill, pneumatic, all ce-compliant
Standard Key Mill Model KM4000 complete with 1.2 hp (0.9 kW) pneumatic
motor*, chain clamp, end mill, hex wrenches, crank, and instruction manual.
Shipped in wooden crate.
10507 KM4000 - inch
As above with 3/4-inch spindle.
Approx. net weight 245 lb (112 kg)
10510 KM4000 - metric
As above with 20 mm spindle
Approx. net weight 245 lb (112 kg)
* Motor requires 40 ft3/min (1 m3/min) at 90 psi (620 kPa).
KM4000 portable Key Mill, Hydraulic, all ce-compliant
Standard Key Mill Model KM4000 complete with 4.0 Hp (2.98 kW) hydraulic
motor, chain clamp, end mill, hex wrenches, crank, and instruction manual.
Shipped in wooden crate.
16297 KM4000 - hydraulic 274 rpm
3/4-inch spindle. Hydraulic motor delivers approx. 274 rpm at the
spindle @ 6 gal/min (22.3 liter/min).
Approx. net weight 233 lb (106 kg).
16314 KM4000 - hydraulic 430 rpm
3/4-inch spindle. Hydraulic motor delivers approx. 430 rpm at the
spindle @ 6 gal/min (22.3 liter/min).
Approx. net weight 233 lb (106 kg).
16315 KM4000 - hydraulic 664 rpm
3/4-inch spindle. Hydraulic motor delivers approx. 664 rpm at the
spindle @ 6 gal/min (22.3 liter/min).
Approx. net weight 233 lb (106 kg).
NOTE: Drawings are for reference only, are not to scale, and
may not represent actual product.
