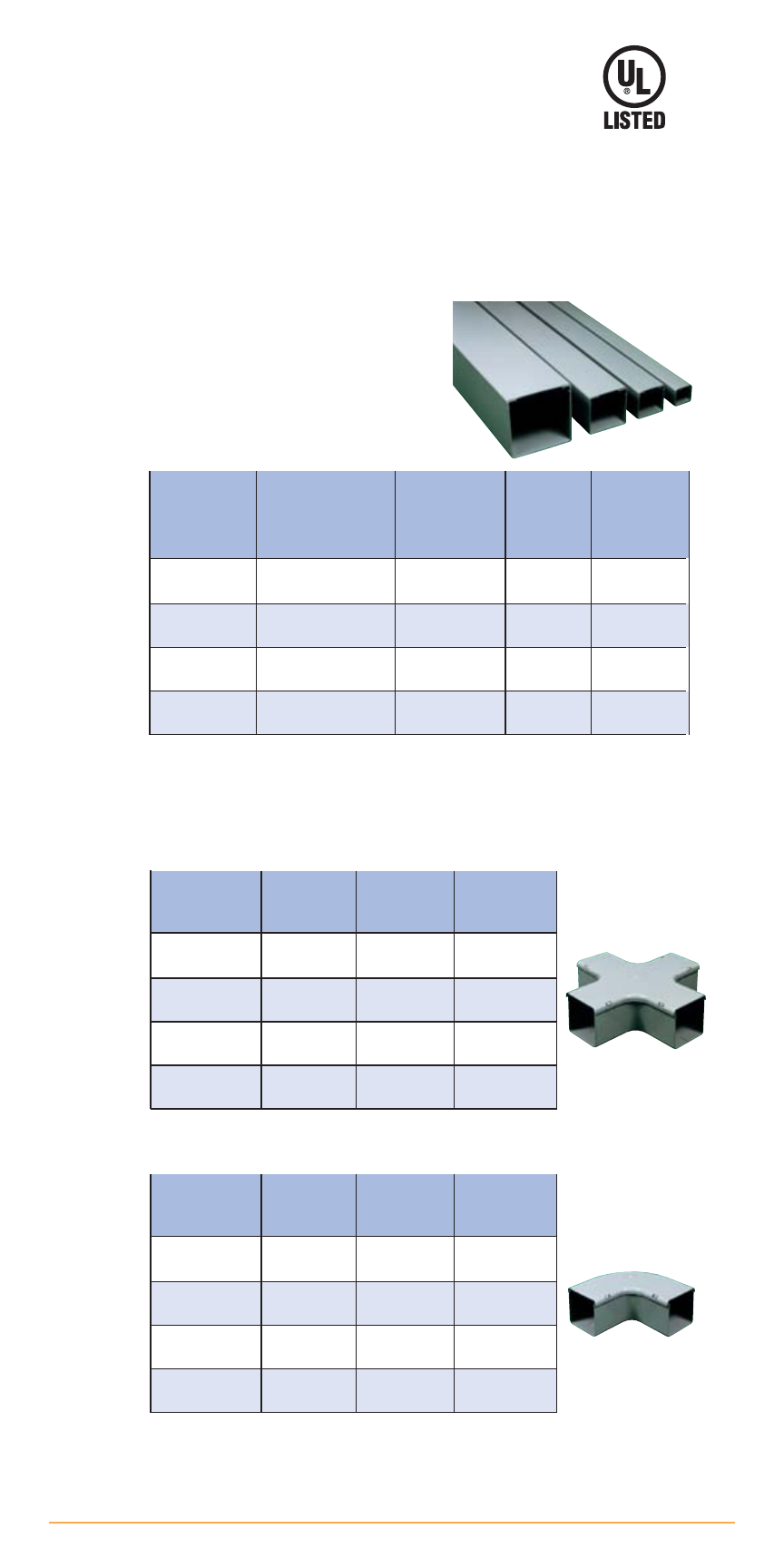

Page 85: Flat cross, 90° bend flat cover

83
Carlon
®
Wiresafe
®
Wireway
and Fittings
Wireway
Fittings
Outside
Std.
Wt.
Part Nominal
Ctn.
(lbs.)
No.
Dimensions
Length
Qty.
per 10'
17011
2 x 2
10'
1
4.7
17013
3 x 3
10'
1
11.2
17015
4 x 4
10'
1
11.2
17017
6 x 6
10'
1
21.4
Std. Ctn. Wt. (lbs.)
Part No.
Size
Qty.
ea.
* EGFCJ
2 x 2
1
0.5
* EGFCL
3 x 3
1
1.3
† EGFCN
4 x 4
1
1.7
† EGFCR
6 x 6
1
4.8
Flat Cross
(Clip-on Cover)
Std. Ctn. Wt. (lbs.)
Part No.
Size
Qty.
ea.
* EGLFJ
2 x 2
1
0.3
* EGLFL
3 x 3
1
0.6
† EGLFN
4 x 4
1
1.1
† EGLFR
6 x 6
1
3.3
90° Bend Flat Cover
(Clip-on Cover)
Except where
noted by
▼
E163227
* Molded fitting–couplings not needed
† Fabricated fitting–order couplings separately
†† No coupling is required for 6" fabricated end cap
Carlon Wire Safe Wireway is the perfect solution for
containing electrical, electronic, and communication wire
and cable. It’s easy to install,
provides durable protection,
and eliminates the need to pull
conductors.
