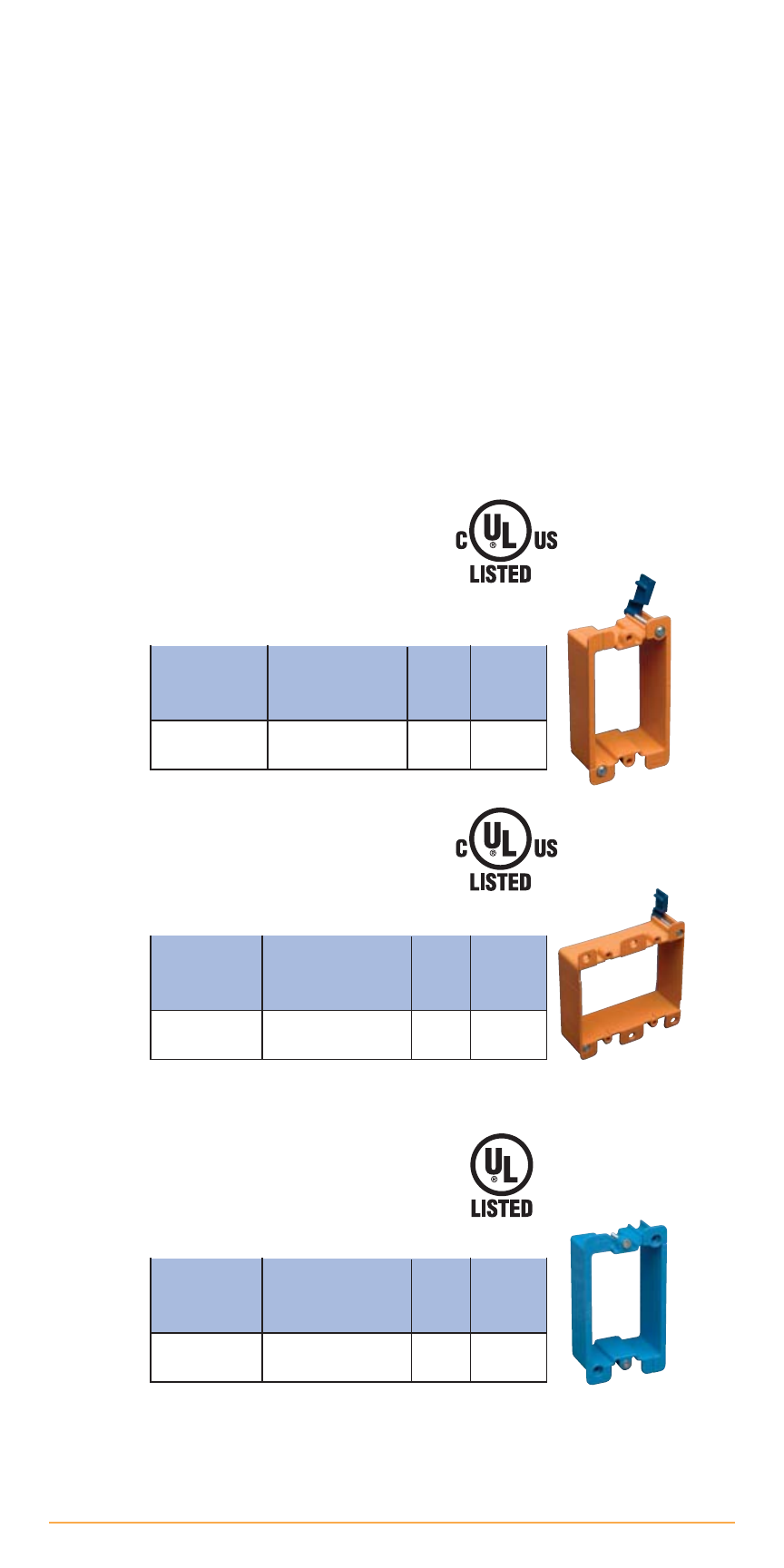

Old Work Brackets
Carlon Old Work Brackets are designed specifically
for the installation of low-voltage devices such as
a cable television, datacommunication or
telephone jacks in an existing wall. The Backless
Box design accommodates the space and bend
radius requirements of coaxial or data/communica-
tion cables. It also eliminates the need for metal
plates, lags or screws, and can be installed
vertically or horizontally. Available in one-and
two-gang styles.
†
Not UL Classified for fire resistance
Std. Std. Ctn.
Part Size
Ctn.
Wt.
No.
Qty.
(lbs.)
† SC100R
2
1
/
4
" x 3
1
/
4
" 12
1.4
One-Gang
Std. Std. Ctn.
Part Size
Ctn.
Wt.
No.
Qty.
(lbs.)
† SC200R 3.92" x 4.00"
6
.9
Two-Gang
Std. Std. Ctn.
Part Size
Ctn.
Wt.
No.
Qty.
(lbs.)
B1EXTB
2
1
/
4
" x 3
1
/
4
"
25
3
Single Gang
Box Extender
E216492
E42728
E216492
