Table 8. Dynamic Accuracy (continued)

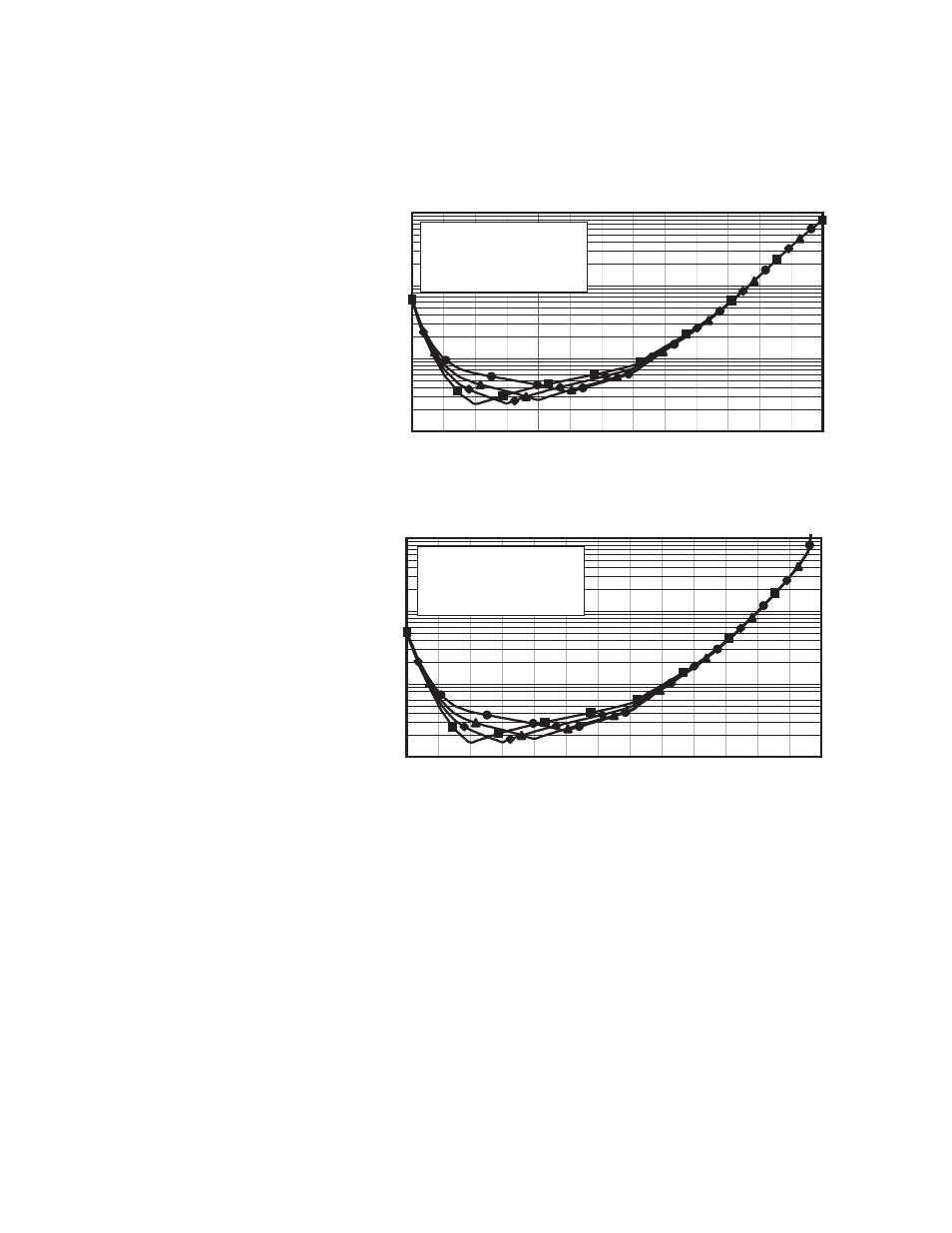

Dynamic Accuracy 0.500 GHz
Magnitude
0.01
0.1
1
10
-120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10
Test port power (dBm)
N5230A Option 140/145/146/240/245/246
Accuracy (dB)
■ -10 dBm at 0.500 GHz
♦ -20 dBm at 0.500 GHz
▲ -30 dBm at 0.500 GHz
● -40 dBm at 0.500 GHz
Phase
0.1
1
10
100
-120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10
Test port power (dBm)
N5230A Option 140/145/146/240/245/246
Accuracy (degrees)
■ -10 dBm at 0.500 GHz
♦ -20 dBm at 0.500 GHz
▲ -30 dBm at 0.500 GHz
● -40 dBm at 0.500 GHz
