Mi x e r C o n t r o l s a n d I n d i c a t o r s
C h a p t e r 3
Antex Electronics Corporation
Antex StudioCard 3-5
Mixer
Controls and
Indicators
In this section are descriptions of all the controls and indicators
of the Antex Mixer display, including its sub-menus.
Main Screen
Controls and
Indicators

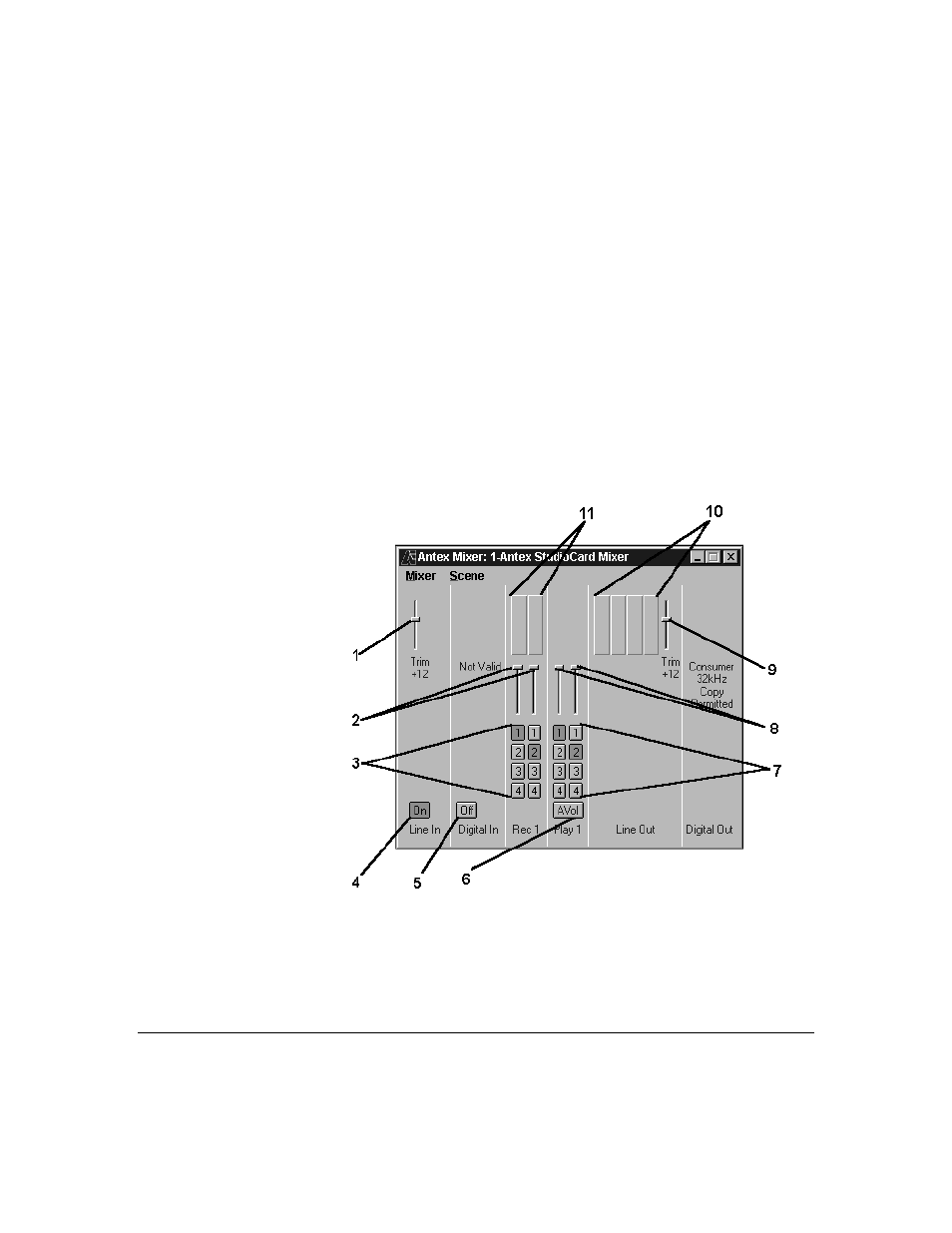

A simplified display of the Antex Mixer is shown below. The
default configuration actually displays four record and play
controls, only one is shown for clarity as they are identical.
Each of these controls and indicators is described in the table
on the next page.
