Ma k i n g B o a r d - t o - B o a r d C l o c k C o n n e c t i o n s C h a p t e r 5
Antex Electronics Corporation Antex StudioCard 5-11
Making Board-
to-Board
Clock
Connections
With the housing still removed from your computer, follow the
instructions below to continue the process of installing multiple
StudioCard.

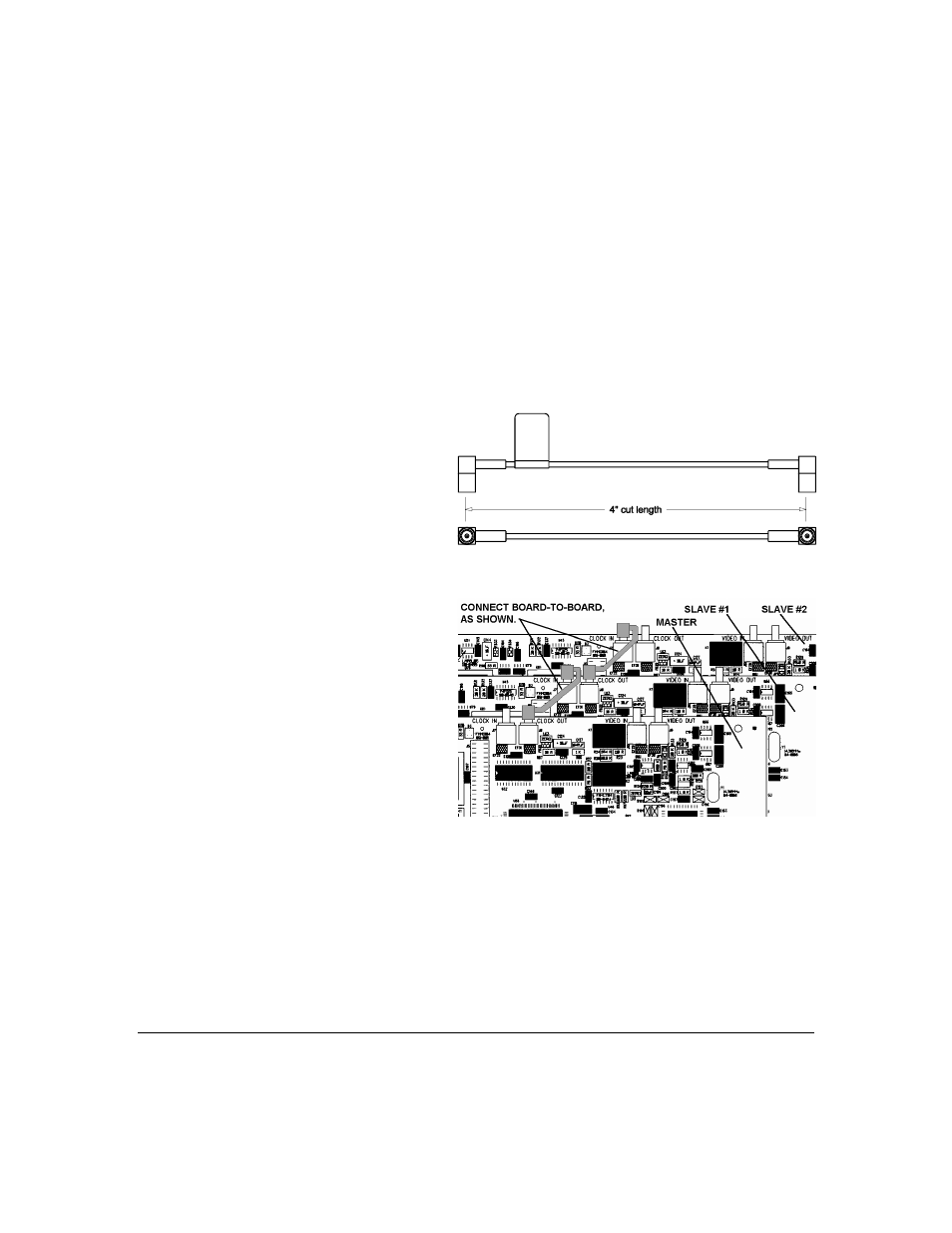

Step 1 Locate your
Interboard
Word Clock
Cable(s)
(IWCC).
Step 2 Starting from
the master
adapter,
connect the
IWCC from the
Clock Out of
the master card
to the Clock In
of the first
slave. Repeat
this process
from one slave
to the next.
Step 3 Replace the housing on your computer, plug it into the wall
outlet, and power it ON.
The final step in this process is to configure the cards using the
Antex Mixer. Continue now to the last section of this chapter,
Configuring Clock Source Settings.
