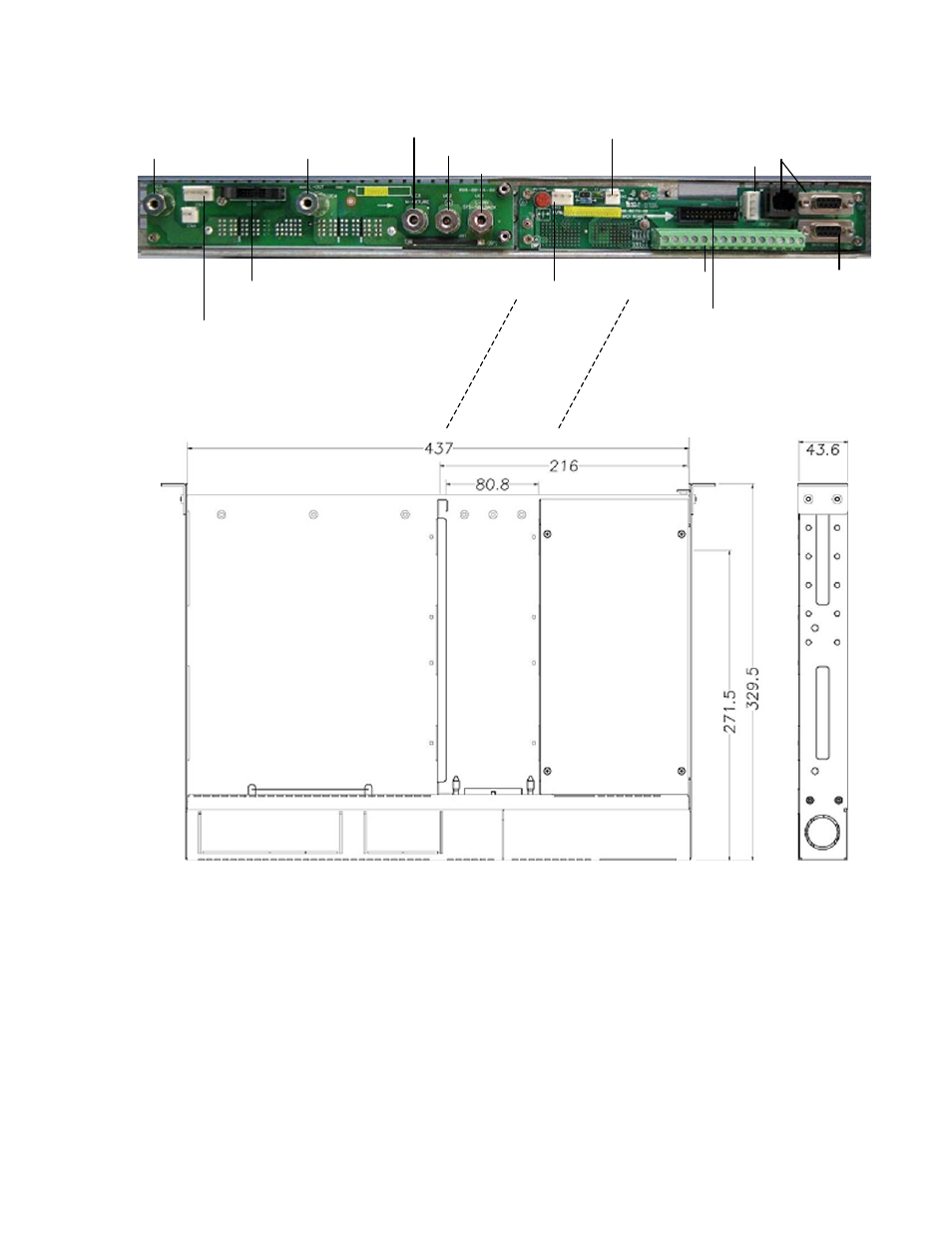

11.6 Mechanical Dimensions of INEX Controller/Interface/STS Shelf
STS
Controller
Interface
slot
slot
slot
CN2: Signal port
between STS & inverter
UC1: AC line
CN12: Power connector
of controller
CN3: CAN bus interface
CN7-11: relay contacts
UC4: AC output
UC2: AC ground
CN13: RS-232 port
CN2, CN6:
(future option)
UC3: AC neutral
CN1: Signal port between
interface module & shelf
UC5: AC input
CN4 (future option)
CN1: Signal port
between STS & MBS
