INEX Inverter System features include:
• Pure sine wave output with low distortion
• Versatile module design allows a variety of configurations for different power needs
• Easily expands capacity up to 18kVA with N+1 redundancy
• “All master” dynamic mechanism eliminates single-point failure to optimize reliability
• Hot-pluggable connection allows module addition or removal without cutting power
• Ultimate high power density reducing space demand
• High efficiency (> 88%)
• Comprehensive LCD/LED display provides system status, and user-friendly panel eases program settings.
1.2.1 WinPower Software
WinPower is a power management software specifically designed to monitor and control the INEX inverter system
via a personal computer. It is available to download via the Argus website (www.argusdcpower.com).
To remotely monitor and control INEX inverters, connect the USB cable (A-B type) to the port on the front panel of
the interface module. Then follow instructions stated in the WinPower manual to properly install the software to a
personal computer physically connected to the INEX inverter system.
1.3 Model and Part Numbers
This product is available to order under the following part numbers:
U
Model Number Description Part Number
INV-4810A 1000VA/800W inverter module (I/P: 48Vdc, O/P: 120Vac, 60Hz)......................014-114-10
INV-4810EA 1000VA/800W inverter module (I/P: 48Vdc, O/P: 230Vac, 50Hz)......................014-115-10
INV-4815A 1500VA/1200W inverter module (I/P: 48Vdc, O/P: 120Vac, 60Hz)....................014-116-10
INV-4815EA 1500VA/1200W inverter module (I/P: 48Vdc, O/P: 230Vac, 50Hz)....................014-117-10
MC-1000A Controller module................................................................................................018-593-10
STS-050A
50A static transfer switch module .......................................................................019-050-10
S
MBSDU-50-2U-19A
S
Discontinued, see 020-424-10 ............................................................................
S
020-417-10
S
MBSDU-50-2U-19-UA MBS+DU panel (maintenance bypass switch and NEMA AC distribution) ........020-422-10
MBSDU-50-2U-19A
MBS+DU panel (maintenance bypass switch and IEC AC distribution).............020-424-10
INVSS-2EA-1U-19A Inverter shelf .......................................................................................................030-419-10
STSSS-I-1EA-1U-19A Controller/STS shelf (includes interface module IFC-1000NSA)........................030-420-10
MC-BLANK Controller
blank plate ..........................................................................................614-616-10
IFC-BLANK Interface blank plate............................................................................................614-617-10
INV-BLANK Inverter/STS blank plate .....................................................................................614-618-10
The above information is valid at the time of publication. Consult factory for up-to-date ordering information.

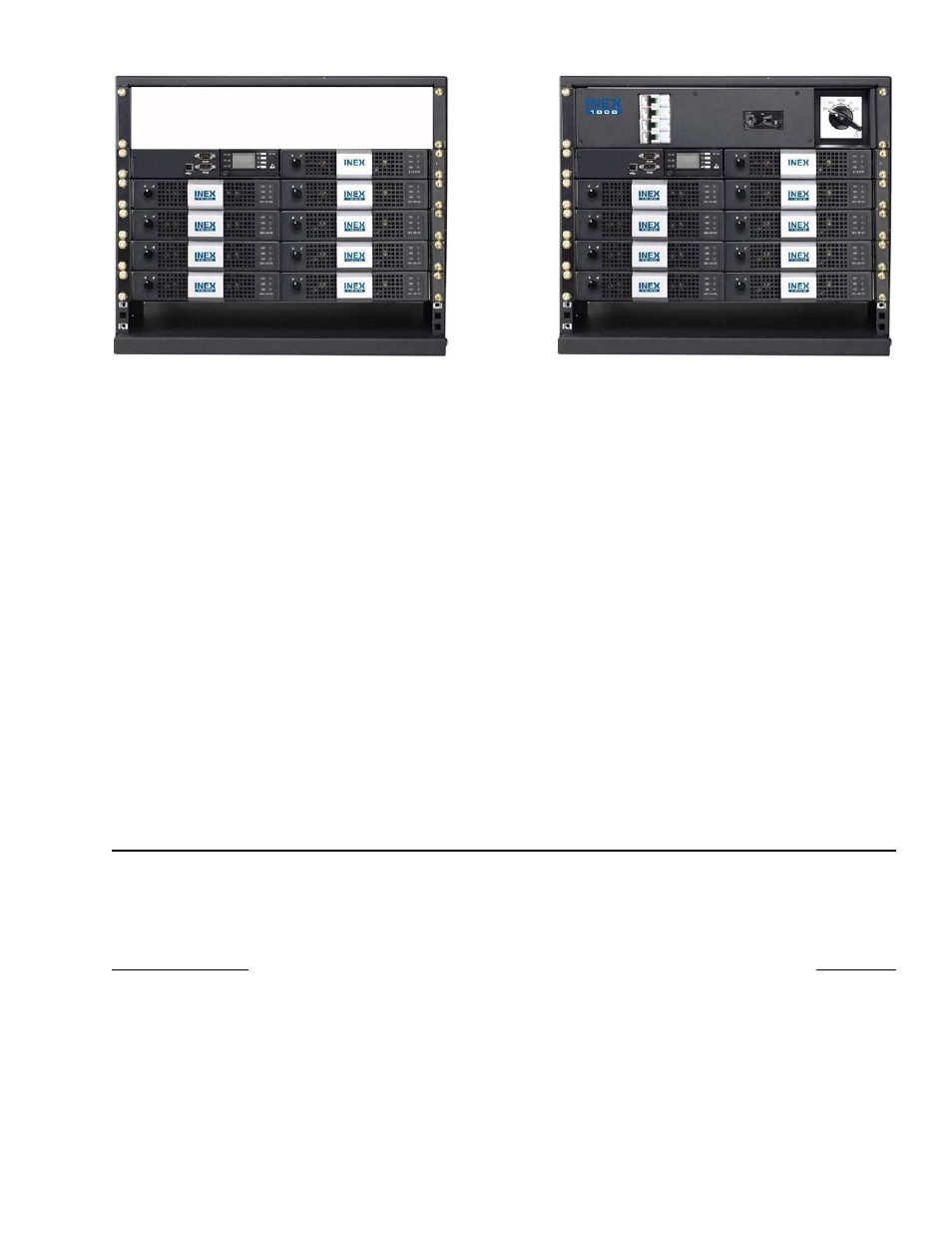

INEX Inverter system with STS and
control/metering
INEX Inverter system with STS,
control/metering, and MBS/distribution
