Alpha Technologies INEX Inverter System User Manual
Page 22
Argus Technologies Ltd.
014-114-C0 Rev D WC
Printed in Canada. © 2008 Argus Technologies Ltd. ARGUS and INEX are registered trademarks of Argus Technologies Ltd. All Rights Reserved.
Page 12 of 43
9. For inverter systems without a controller, open collector terminals are available on the inverter shelf
backplane for the inverter fail alarm.
10. Check the AC output voltage. Using Table A, as well as local wiring rules, choose appropriate gauge wire.
11. Thread selected AC neutral and line wires through left-side panel knockout, and attach one cable to one AC
neutral (UC3) stud and the other to AC line (UC5) stud.
12. Secure the connection with two supplied M5x12 cross hex-washer type nickel screws and washers.
13. Install the other end of wires to the AC distribution or load.

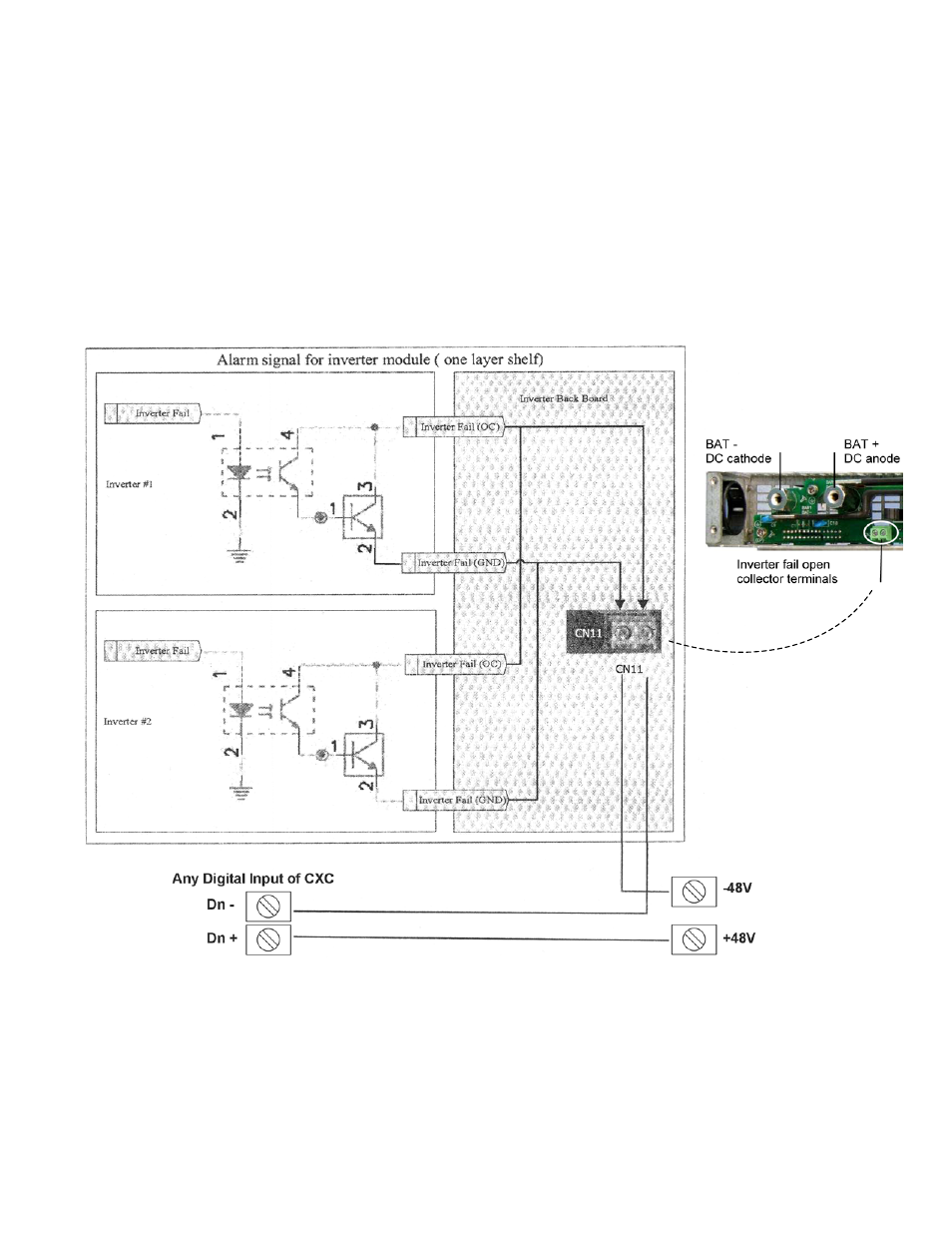

To connect the INEX inverter with an Argus Cordex™ system controller (CXC), use the contacts of CN11 on the
INEX inverter shelf to connect to any available digital input on the CXC. See the following example:
