8.2 STS Fan Replacement
1. Unlock the STS and slide the module 10 cm (4”) out of the shelf. Wait two minutes for module capacitors to
discharge.
2. Remove the six (6) screws that secure the front cover to the module.
3. Gently slide the front cover (with the fans) out of the module case.
4. Disconnect the fan power connectors (one per fan).
5. Note the direction of airflow and remove the fans from the assembly.
6. Install the replacement fans following the preceding steps in reverse order.
8.3 Replacement Parts
The INEX Inverter System offers a complete spare parts kit for each model number. Spare parts kits include the
power modules. Parts (those included in the spare parts kit) can be ordered individually or as a complete parts kit.
To order an individual part, give the full description along with the complete model and part number.
U
Model Number Description Part Number
INV-4810A 1000VA/800W inverter module (I/P: 48Vdc, O/P: 120Vac, 50/60Hz).................014-114-10
INV-4810EA 1000VA/800W inverter module (I/P: 48Vdc, O/P: 230Vac, 50/60Hz).................014-115-10
INV-4815A 1500VA/1200W inverter module (I/P: 48Vdc, O/P: 120Vac, 50/60Hz)...............014-116-10
INV-4815EA 1500VA/1200W inverter module (I/P: 48Vdc, O/P: 230Vac, 50/60Hz)...............014-117-10
MC-1000A Controller module................................................................................................018-593-10
STS-050A
50A static transfer switch module .......................................................................019-050-10
Fan INEX inverter/STS module fan............................................................................500-419-10
Cover INEX inverter shelf rear cover.............................................................................614-844-10
Cover INEX STS shelf rear cover, large........................................................................614-845-10
Cover INEX STS shelf rear cover, small .......................................................................614-846-10
The above information is valid at the time of publication. Consult factory for up-to-date ordering information.

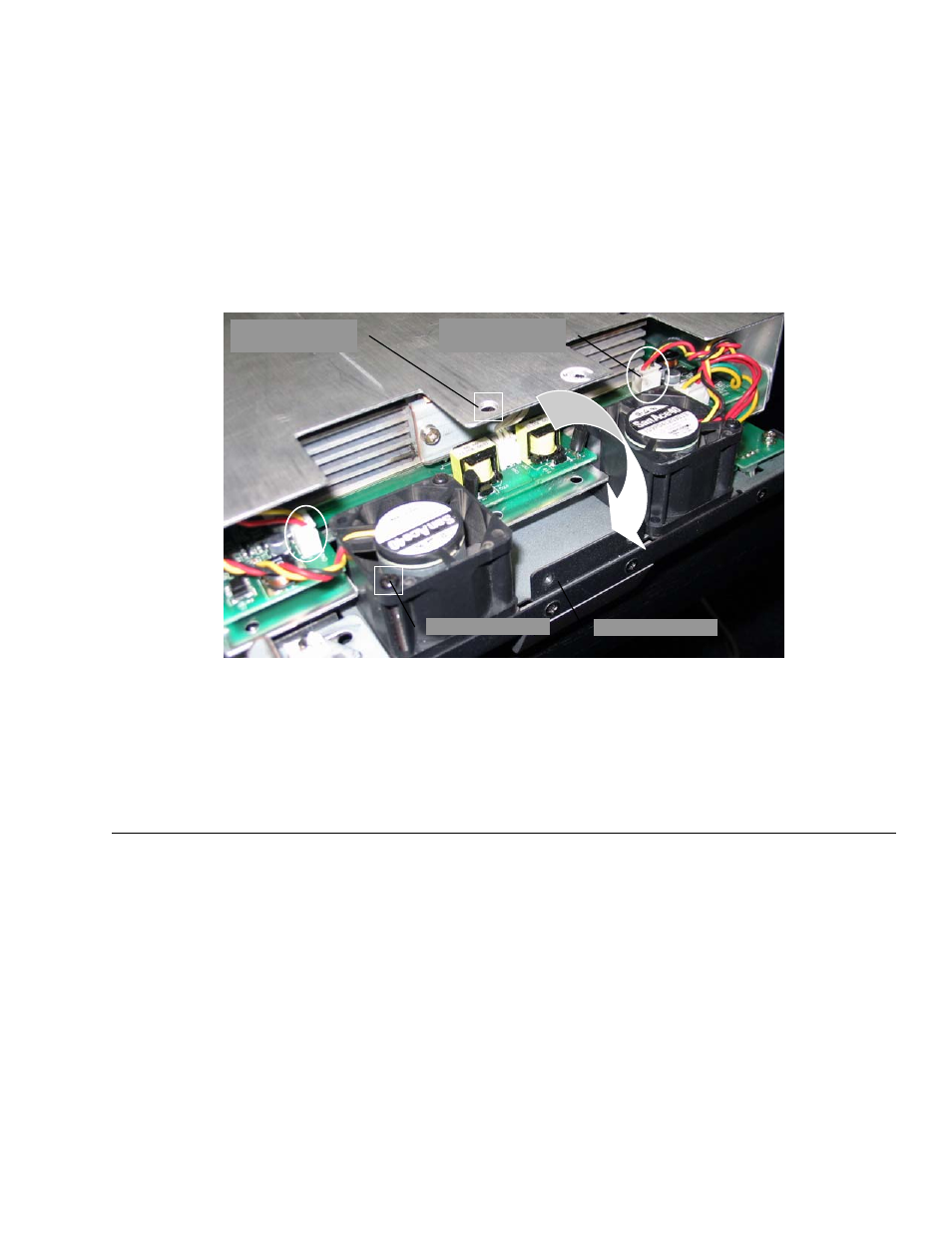

Fan power connector
(2 places)
Fan screw (2 per fan)
Screw hole (6 places)
for front panel
Front cover w/fans
