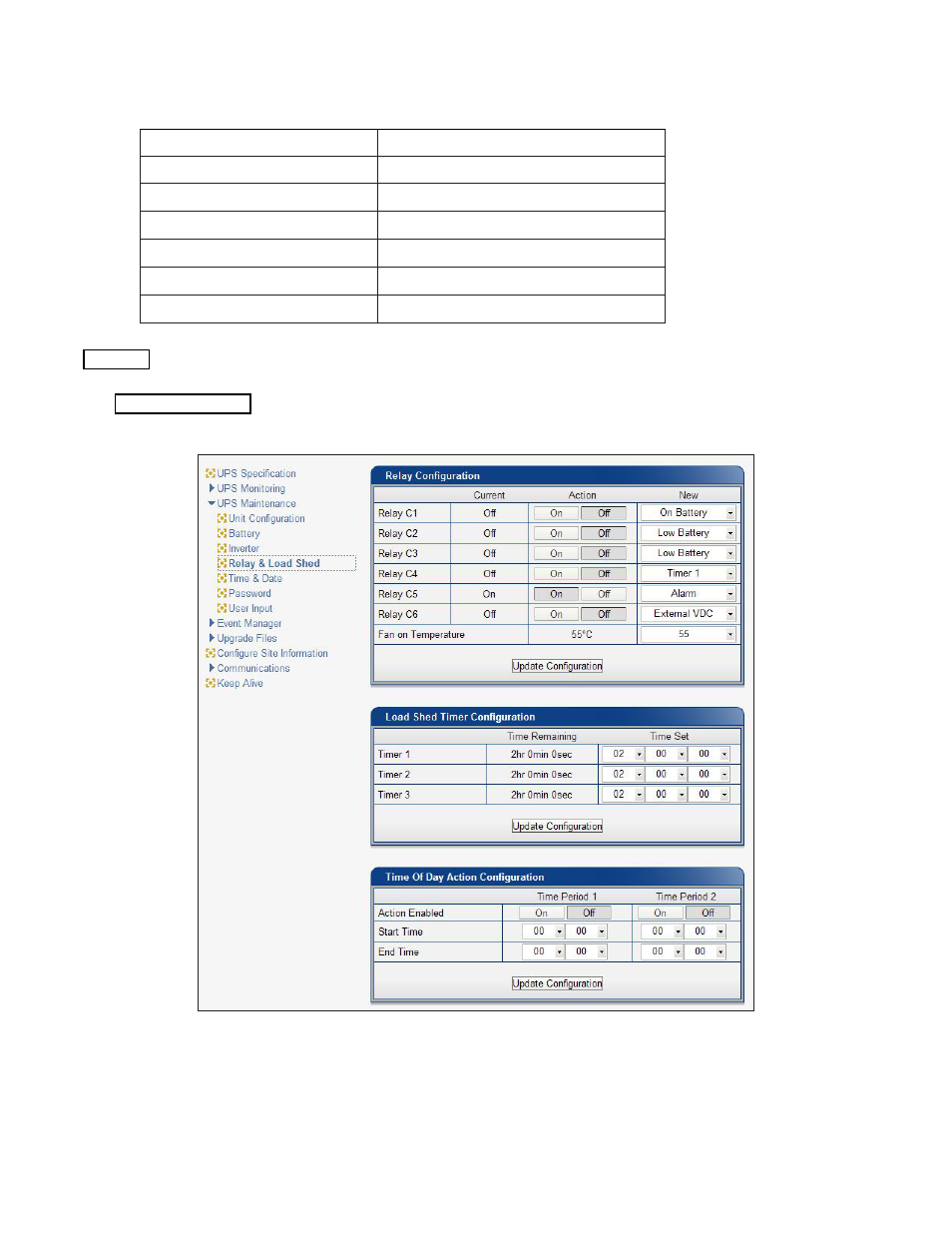

Figure 25 — UPS Maintenance: Relay & Load Shed screen
UPS Maintenance > Relay & Load Shed
The Alpha FXM has up to 6 dry contacts (C1 to C6) on the front panel, which can be configured to open or close
for any of the following trigger conditions:
On Battery Timer 3
Low Battery 48 Vdc (Only available with contact C6)
Timer 1 Generator
Alarm Temperature
Fault Low Battery, Shutdown
Disabled Low Battery and Line
Timer 2 LVD
Figure 25 shows the defaults for Relays C1 to C5. For Relay C6, the default factory configuration is +48 Vdc out-
put, but it can be factory configured as a dry contact.
See Table S on page 80 for factory defaults.
