017-230-B4 Rev B 32
6.3.2 UPS Specifications

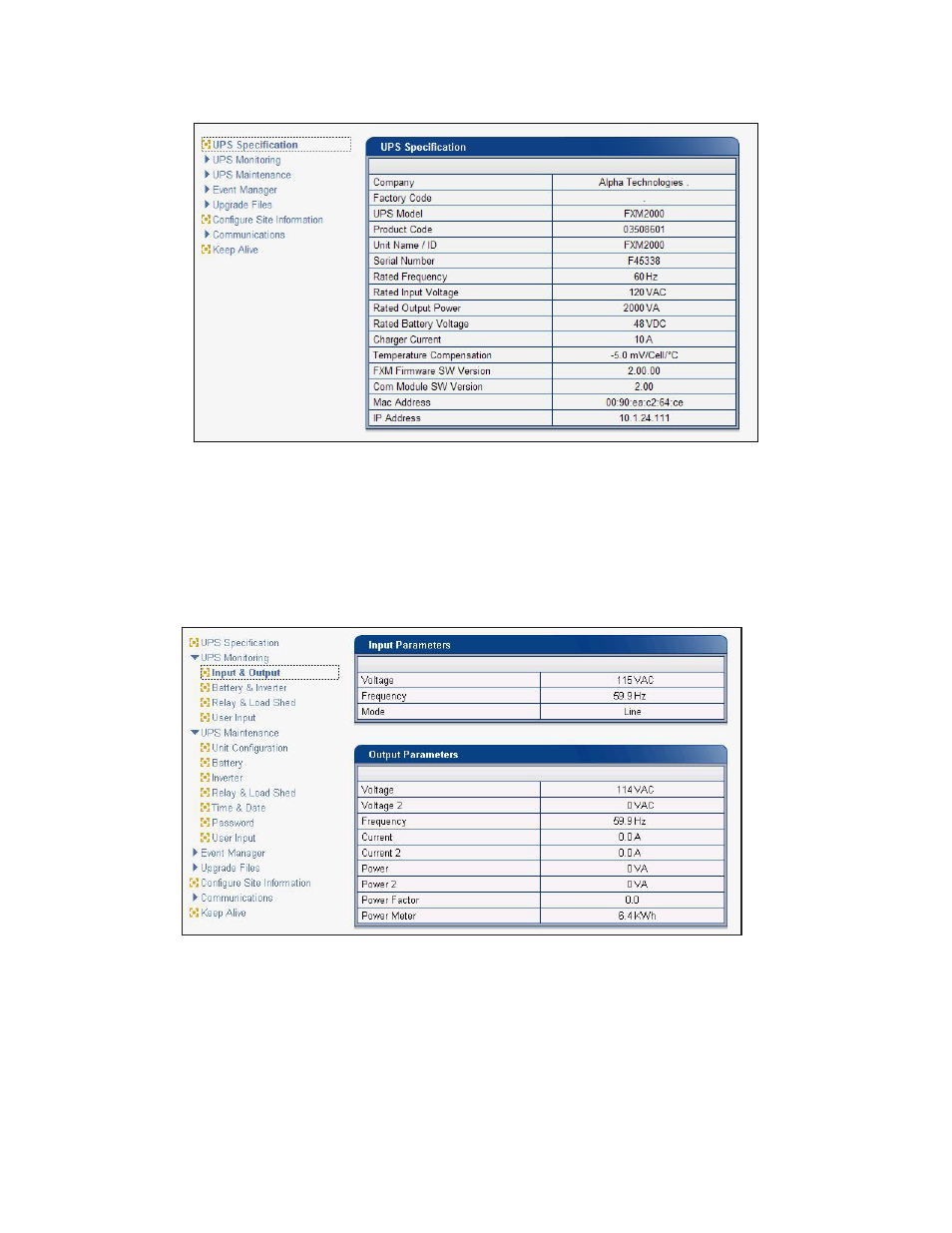

This screen displays the Alpha FXM2000 specifications.
Figure 14 — UPS Specification screen
6.3.3 UPS Monitoring
These read-only screens show the Alpha FXM current input and output values and other measurements.
UPS Monitoring > Input & Output
Shows the current line input and Alpha FXM output values and the Alpha FXM present operating mode.
Figure 15 — UPS Monitoring: Input & Output screen
