Extron Electronics PowerCage FOX 3G HD-SDI User Guide User Manual
Page 28

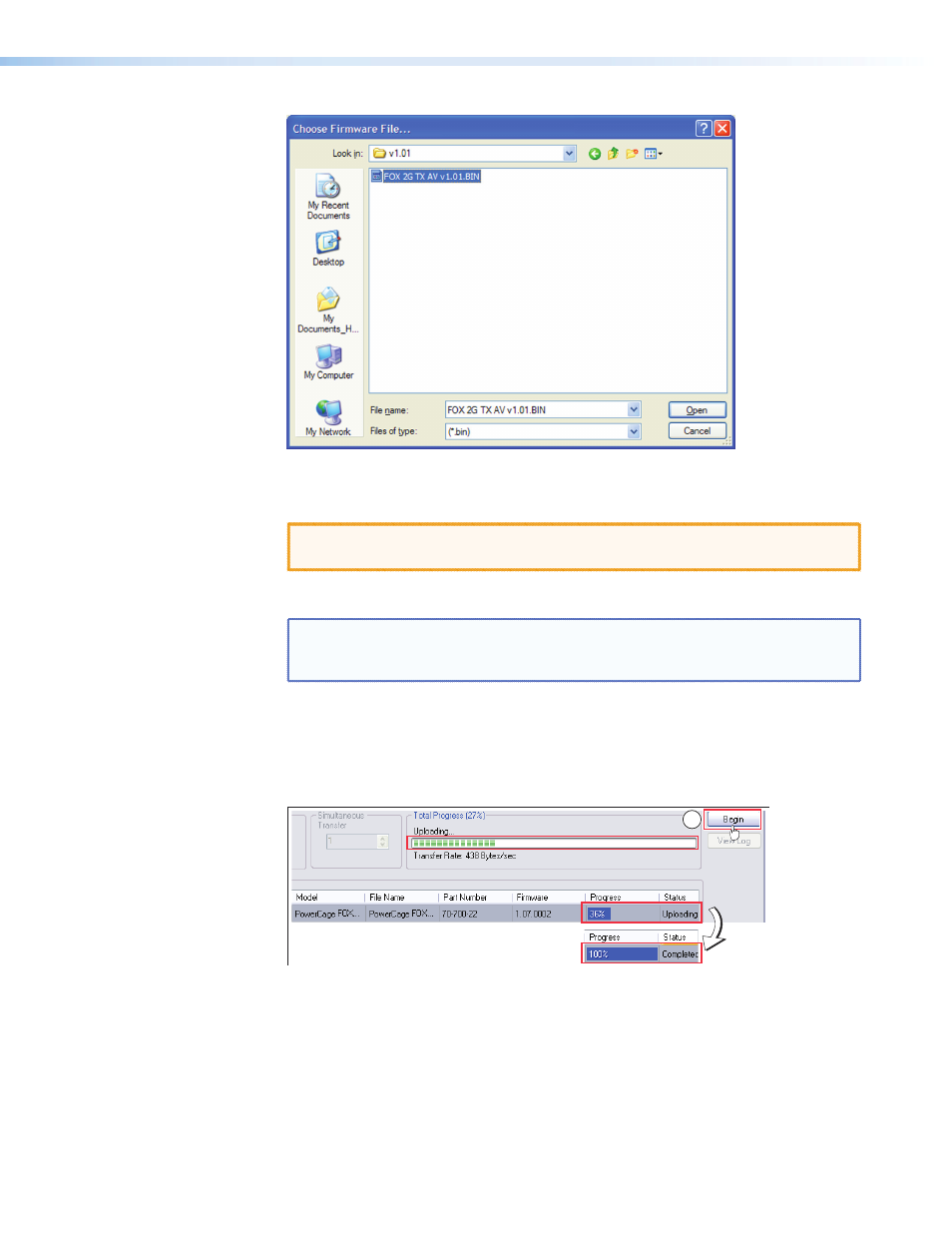

Figure 20.
Choose Firmware File Window
5.
Navigate to and select the new firmware file, which has a .bin extension.
CAUTION: The firmware file must have a .bin extension. Other file types can
cause the transceiver to stop functioning.
6.
Click
Open
. The Choose Firmware File window closes.
NOTE: When downloaded from the Extron website, the firmware is placed in a
subfolder of
C:\Program Files\Extron\Firmware
or
C:\Program
Files
(x86)\Extron\Firmware
(for Windows 7).
7.
On the Firmware Loader window, click
Begin
.
The Total Progress and Progress status bars show the progress of the upload. The
firmware upload to the unit may take several minutes. Once the status bars have
progressed from 0% to 100%, and Status is listed as Completed, the firmware loader
utility resets the unit.
7
Figure 21.
Firmware Loader Screen
8.
Click
Exit
to close the Firmware Loader.
PowerCage Fox 3G HD-SDI • Remote Communication and Control
22
