Symbols Used in this Guide
When you are programming using SIS, certain characters are most conveniently
represented by the hexadecimal equivalent of their ASCII value. The table below shows the
hexadecimal equivalent of each ASCII command:

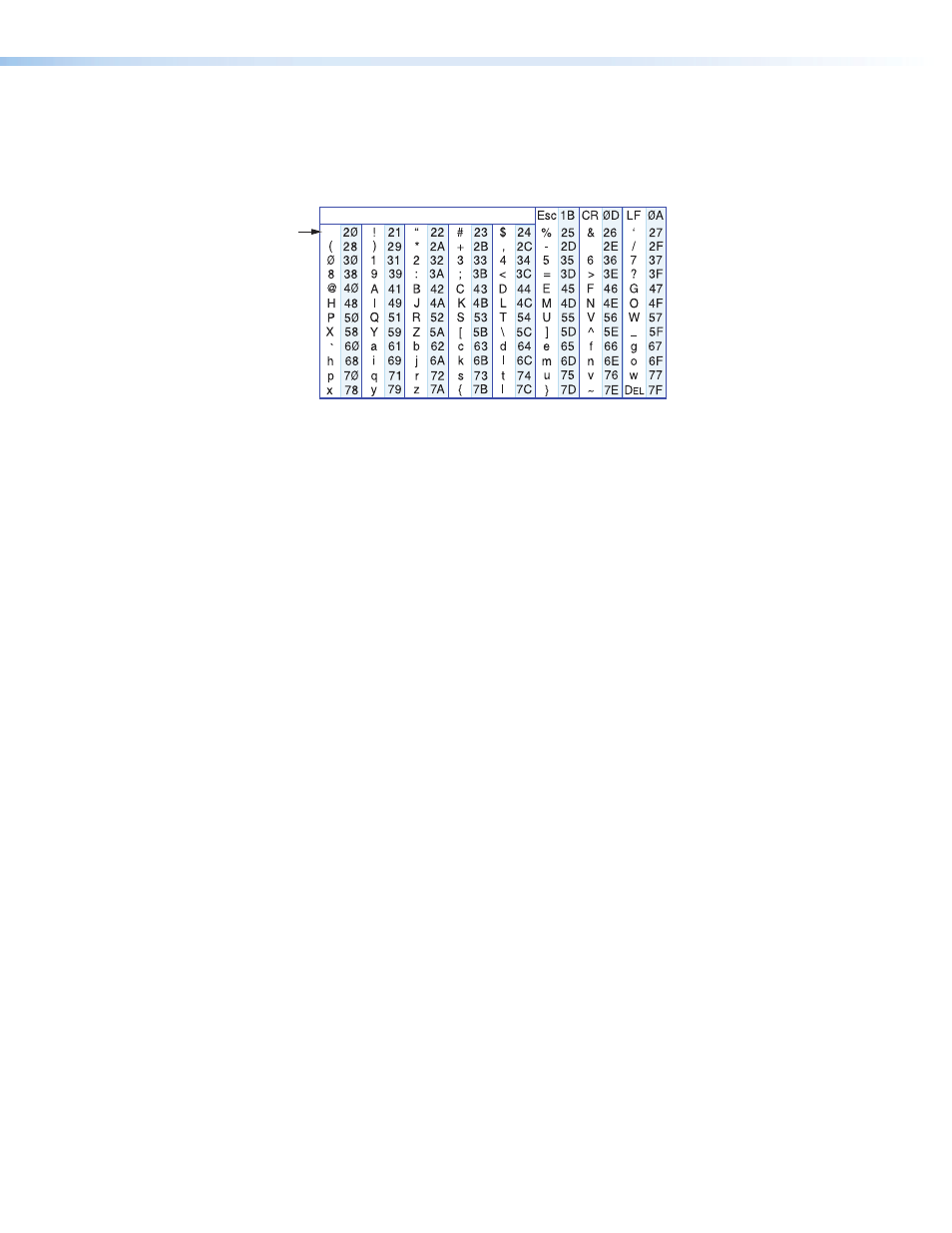

ASCII to Hex Conversion Table
•
Space
The symbols (X/ values) defined in this section are the variables used in the fields of the
Command/Response Table that begins on the next page.
]
= carriage return with line feed
}
= carriage return (no line feed)
• = space character
E
= Escape key (W or hex 1B)
X%
= On or Off status
0 = Off
1 = On
X^
= Input rate status
0 = No input
1 = 270 Mbps
2 = 1.485 Gbps
3 = 2.97 Gbps
4 = Rate unknown
X2!
= SM (singlemode) or MM (multimode)
X2@
= Tx (transmitter), Rx (receiver), or Tr (transceiver), depending on the mode
X2%
= DIP switch position
0 = Off; 1 = On
00 = Switch 1 off, switch 2 off (bidirectional transceiver)
01 = Switch 1 off, switch 2 on (transmitter with local monitor outputs)
10 = Switch 1 on, switch 2 off (receiver with daisy chaining)
11 = Switch 1 on, switch 2 on (spare — functions as receiver with daisy chaining)
Error Messages
E10 — Invalid command
E13 — Invalid parameter
E14 — Not valid for this configuration
PowerCage Fox 3G HD-SDI • Remote Communication and Control 13
