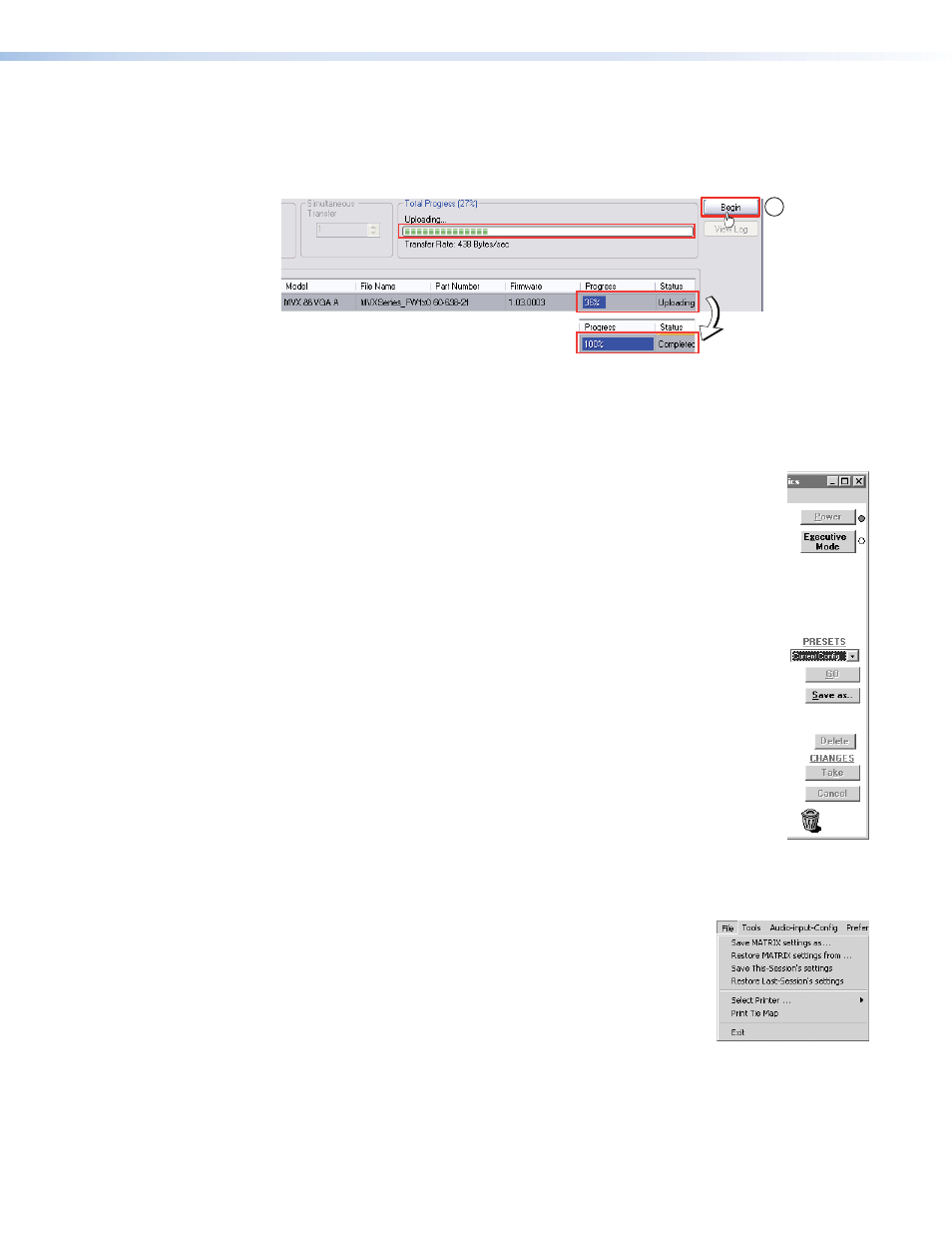

12. In the Firmware Loader window, click Begin (see figure 34 ).
The Total Progress and Progress status bars show the upload progress. The firmware
upload may take several minutes. Once the status bars have progressed from 0% to
100% , and Status is listed as Completed , the firmware loader utility resets the switcher.
12
Figure 34. Firmware Loader Screen
13. Click Exit to close the Firmware Loader.
Windows Buttons, Drop Boxes, and Trash Can
The buttons, drop boxes, and trash can on the right side of the Matrix
Switchers Control Program window perform the following functions:
Power — Unavailable for MVX switcher, because the switcher power cannot
be controlled via software.
Executive mode (front panel security lockout) — Allows you to lock out
front panel operations, except for the view-only mode functions.
Presets menu — Displays a list of up to 16 presets. You can select a preset
from the list to display it in the window or click Take to recall it.
Go — Activates the selected preset as the current configuration.
Save as ... — Allows the current set of ties to be saved as a preset. Enter the
preset number when prompted to do so.
Delete — Allows you to delete a selected preset.
Changes – Take — Allows you to apply any changes made to the displayed
configuration.
Changes – Cancel — Returns to the previous screen, undoing any changes
you have made.
Trash can — Drag and drop from an input or output button to the trash can
to erase all ties associated with that input or output.
Windows menus
File menu
Save MATRIX settings as ... — Saves a complete set of up
to 16 presets, plus the last active setting (preset #0), to a file.
Saved settings include audio gain settings (if specified), assigned
icons, and icon captions.
Restore MATRIX settings from ... — Loads and activates a
previously saved setting file.
Save This-Session’s settings — Saves a complete set of up to 16 presets, plus the
last active setting (preset #0), to overwrite the current file. Saved settings include audio
gain settings (if specified), assigned icons, and icon captions.
MVX 44 / 48 / 84 / 88 VGA Matrix Switchers • Remote Operation 52
