Worksheet Example 2: Daily Configuration
continues from worksheet example 1 by showing the video and audio ties that
make up the configuration of preset 1. A black line shows video ties and a red line shows
the audio ties.
In this example:
•
The image of the speaker, from the main podium camera (input 1), is:
•
Displayed in the main hall (output 1)
•
Displayed in the conference room (output 4) to the overflow crowd
•
Displayed in the lobby (output 8)
•
Tied to the VCR (output 6)
•
The speaker has a presentation on her laptop computer (input 4) that is:
•
Displayed in the main hall (output 2)
•
Displayed locally on the podium (output 3).
•
The audio from her microphone (input 3) is:
•
Played in the hall (output 1)
•
Played in the conference room (output 4)
•
Sent to the VCR
•
Classical music from the CD player (input 5) is:
•
Played in the background in the main hall on sound system #2 (output 5)
•
Played in the lobby (output 8).
Main
Hall
PJ#1
Main
Hall
PJ#2
Podium
monitor
VCR
(USP 405)
Lobby
monitor
Conf.
room
Sound
system
#2
Camera
main
podium
Podium
Mic
VTG 300
Classroom
#2 VCR
(DVS 406)
Laptop
USP 405
Audio
CD
Camera
#2
2
3
4
5
6
7
8
Output destinations
1
1
2
3
4
5
6
7
8

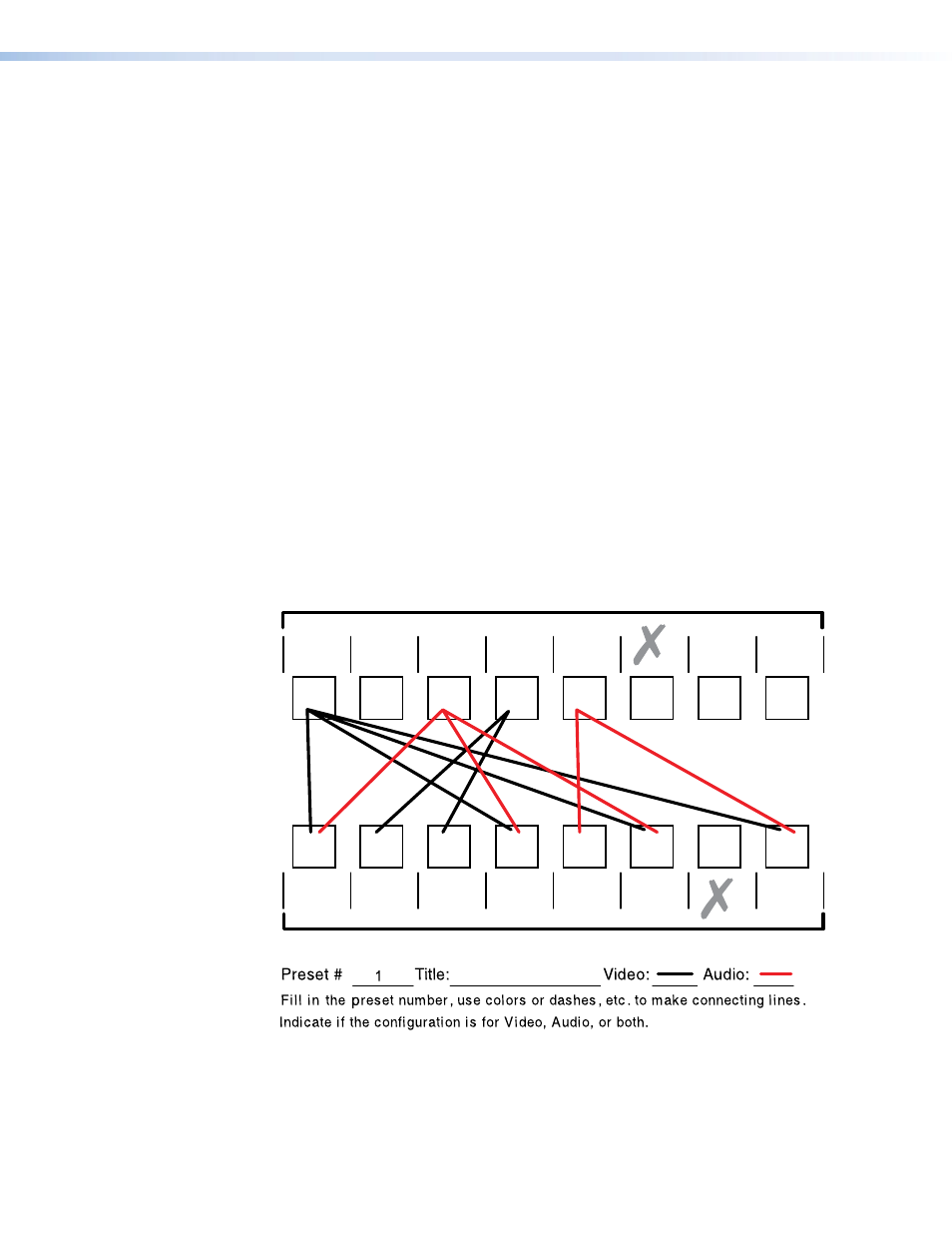

Worksheet Example
