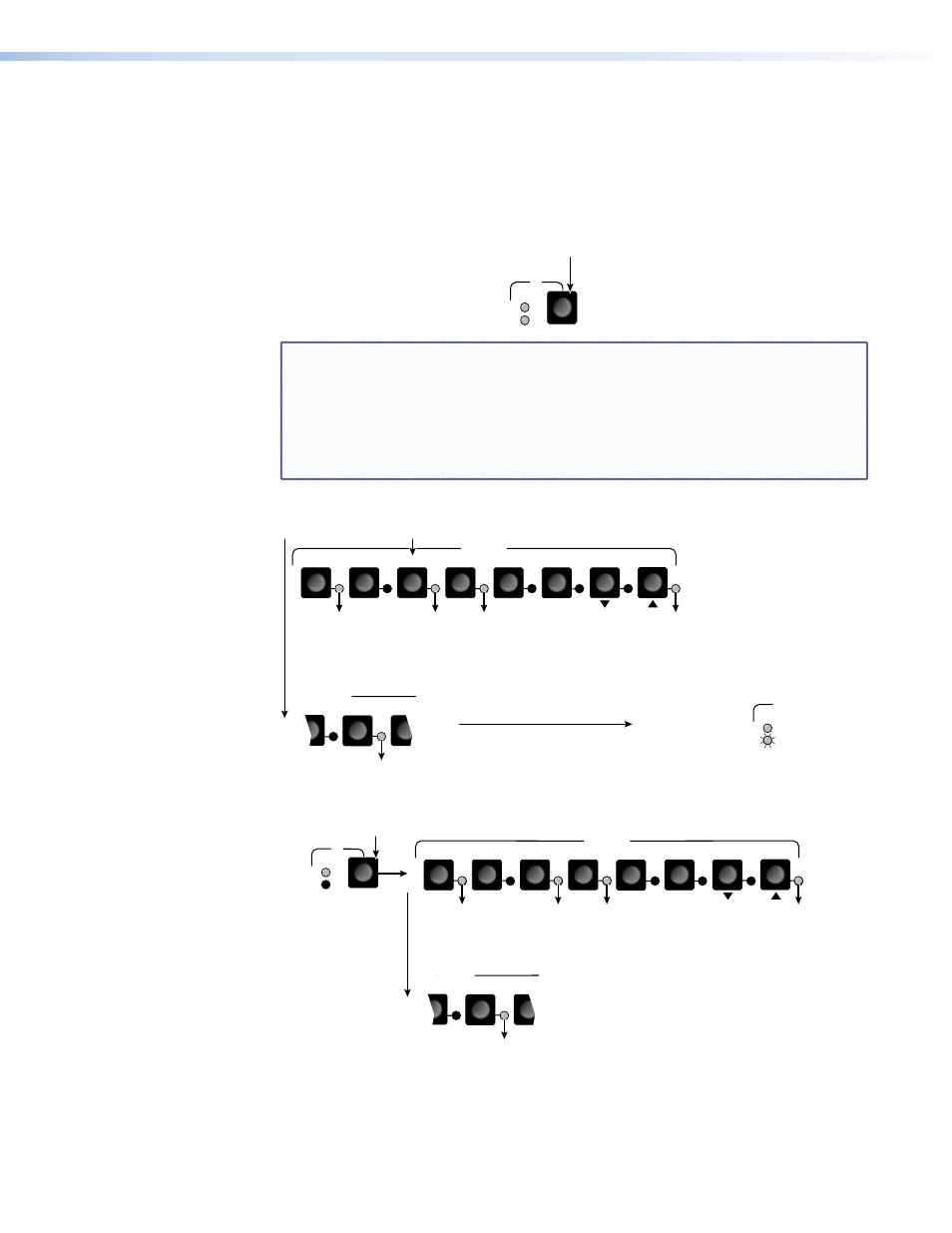

Example 5: View ties by selecting outputs
In the following example, the video and audio, audio-only, and video-only ties in the current
configuration are viewed by selecting various outputs. The example shows the front panel
indications that result from your actions.
1. Select video and audio for viewing: If necessary, press and release the I/O button to
cycle through the selections until the both LEDs light.
I/O
AUD
VID
Press the button.
The video LED lights when video is selected.
The audio LED lights when audio is selected.
NOTE: Allow the 5-second timeout to deselect the input buttons before you select
an output button. If an input button is still selected, the indications will
not be as described and you may inadvertently establish potential ties that
could be created by pressing the Enter button.
If you do inadvertently establish a potential tie by selecting an input and
output button, do not press the Enter button. Allow the 5-second
timeout to deselect all input and output buttons.
2. Select an output: Press and release the output 3 button.
7 6 2 4 1
INPUTS
OUTPUTS
8 3
6 4 5
5
I/O
AUD
VID +dB
-dB
Press and release the Output 3 button.
The Output 3 LED lights to indicate that output 3 is selected and it is receiving video or video
and audio. The source (or sources, if audio is broken away) is indicated by the Input LED(s).
The Output 1, Output 4, and Output 8 LEDs also light to indicate that they are receiving
video
from the indicated input. These unselected outputs may or not be receiving audio; you cannot
tell from these indications.
The Input 5 LED lights to indicate that the video from this
input is tied to output 3 (and to all the other lit outputs).
The audio LED blinks
to indicate that, for at
least one tie, audio is
routed from a different
source or not tied at
all (audio breakaway).
3. Deselect audio: Press and release the I/O button.
2
OUTPUTS
1 8 6 5 4 3 7
I/O
AUD
VID +dB
-dB
4
INPUTS
6 4 5
Press the button.
The video LED lights
when video is selected.
The audio LED is
off
when audio is deselected.
The Output 3 LED lights to indicate that output 3 is selected and it is receiving video. The
source is indicated by the Input LED(s).
The Output 1, Output 4, and Output 8 LEDs also light to indicate that they are receiving
video
from the indicated input.
The Input 5 LED lights to indicate that video from this
input is tied to output 3 (and to all the other lit outputs).
MVX 44 / 48 / 84 / 88 VGA Matrix Switchers • Operation 19
