HSA 822M • Introduction HSA 822M • Introduction
Introduction
About the HSA 822M Hideaway ® Enclosures
The Extron HSA 822M is a furniture-mounted, motorized,
architectural solution for inconspicuous computer video
interface connector access and control.
The HSA 822M (figure 1-1) provides space for four double space
(double-height) or eight single space Extron Architectural
Adapter Plates (AAPs), two standard grounded AC power
receptacles, and four RJ-45 (Category [CAT] 6) connectors. The
HSA is available in a version with US power outlets and an
international version with several different types of power
outlets, including Universal
, UK, French, Israeli, Australian,
Indian, European, and Swiss receptacles.
The Universal AC outlet is fully compatible with
Europlug, British, Indian, Danish, and Italian plug
types. See the Universal AC outlet guide on the Extron
Web site,
www.extron.com , for compatibility details on
all plug types.
Open
Closed

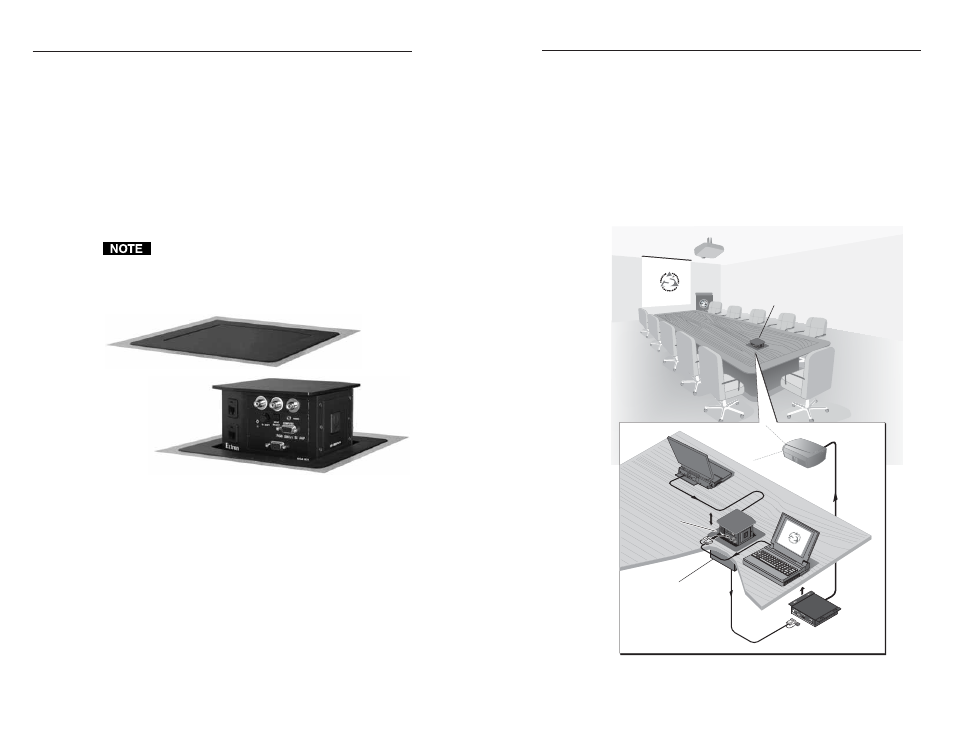

Figure 1-1 — HSA 822M hideaway enclosure
The motorized action is controlled by contact closure. The
control mechanism uses discrete high or low signals to report
the HSA’s up or down position. Safety devices prevent injury
and equipment damage.
The installed enclosure fits nearly flush within a table or
podium top, storing the AAPs and connectors out of the way
and out of sight. To access the AAPs and connectors, the user
touches a button, sends a control system command, or presses
down on the top of the enclosure. A stepper motor slowly raises
the AAPs and connectors into view.
The AAP spaces and RJ-45 connectors are arranged back-to
back, while the AC receptacles are back-to-back on the sides
perpendicular to the AAPs.
1-2
A cable inside the enclosure connects the user AC receptacles to
a power connector on the underside of the enclosure. The same
power cable supplies the stepper motor that drives the panel up
and down.
Cables inside the enclosure route the front panel RJ-45 signal
lines to RJ-45 connectors on the underside of the enclosure.
With an optional conversion kit, one or more of the RJ-45 (data)
lines can be converted to an RJ-11 (telephone) line.
The functionality of the HSA 822M can be optimized with one
through four RGB 580xi AAPs connected to one through four
RGB 580xi Remote Interfaces (figure 1-2).
Projector
Extron
HSA 822M
Extron
RGB 580xi
Surface Access
Enclosure
SO G SE RR DD SP V-SY NC W IDT H NE G S YN C CO MP S YN C
INP UT S
RG B 5 80 xi
AN AL OG AU DIO
CO NT RO L VID EO OU TP UT LE VE L A B C D E PE AK ING
Extron
HSA 822M
Extron
RGB 580xi
Remote Interface
Both Sides CO MPU TER INP UT SEL ECT AU DIO
CO MP UT ER INP UT SE LE CT AU DIO
Figure 1-2 — HSA 822M and RGB 580xi xi xi xi xi configuration
1-3
