HSA 822M • Packaging for Shipment
Packaging for Shipment, Cont’d
HSA 822M • Packaging for Shipment
3
.
Bolt the clamshell to the enclosure with two bolts and flat
washers included in the return kit (figure B-3).

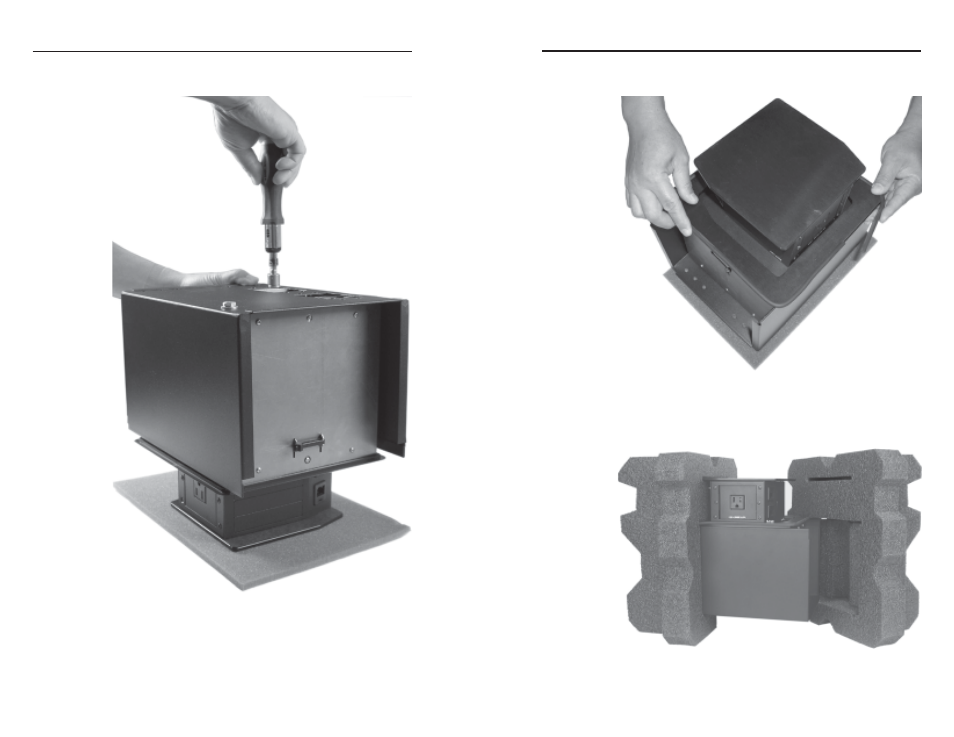

Figure B-3 — Attaching the clamshell
4
.
Place the enclosure and clamshell rightside-up on a
horizontal surface. To protect the finish, place the
enclosure on a soft cloth or rubber mat.
B-5
B-4
5
.
Install the rubber strips that protect the flanged edges of
the top of the surface enclosure (figure B-4).
Figure B-4 — Installing protective strips
6
.
Insert the HSA 822M and the clamshell into one of the
foam shells (figure B-5). Either open end of the clamshell
and the open top panel fits into the recesses in the foam.
Figure B-5 — Installing the foam shell
