HSA 822M • Packaging for Shipment
Packaging for Shipment, Cont’d
HSA 822M • Packaging for Shipment
B-6
7
.
Insert the opposite end of the HSA 822M and the clamshell
into the remaining foam shell (figure B-6). Firmly push the
foam shells together as far as they will go to completely
suspend the HSA and clamshell. The sides of the
clamshell protrude through slots in the foam.

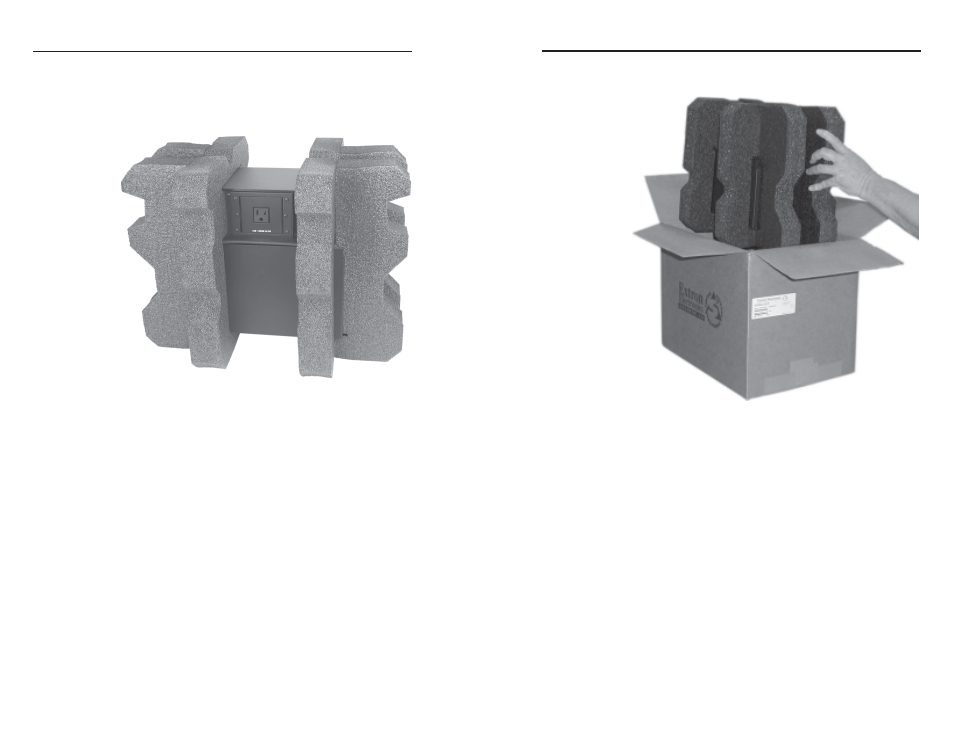

Figure B-6 — HSA suspended in the foam
B-7
8
.
Lower the foam-protected HSA into the shipping carton
(figure B-7).
Figure B-7 — Placing the HSA in the shipping carton
9
.
Close the shipping carton and seal it with high quality
shipping tape.
10
.
Ship the HSA to Extron using a reputable shipping
company.
