HSA 822M • Reference Information HSA 822M • Reference Information
Reference Information
A-2
Specifications
Control/remote
Contact closure .............. (1) 3.5 mm female captive screw connector,
10 pole
Contact closure/level pin configuration
Pin 1 = up, pin 2 = down, pin 3 = stop,
pin 5 = enable push operation, pin 6 = status up,
pin 7 = status down, pin 9 = status power,
pins 4, 8, and 10 = ground
General
The Universal AC outlet is fully compatible with Europlug,
British, Indian, Danish, and Italian plug types. See the
Universal AC outlet guide on the Extron Web site,
www.extron.com , for compatibility details on all plug types
Power .............................. 100 VAC to 240 VAC, 50-60 Hz, 25 watts, internal
Temperature/humidity . Storage: -40 to +158°F (-40 to +70°C) /
10% to 90%, noncondensing
Operating: +32 to +122°F (0 to +50°C) /
10% to 90%, noncondensing
Rack mount .................... No, but furniture mountable
Enclosure type ............... Metal
Enclosure approximate dimensions
CAUTION Use the appropriate metal Extron routing template or refer to
the surface cutout dimensions here before cutting a hole in the
furniture or other surface. Pay special attention to the direction
the unit will face; the unit’s AAP and connector access side is
underlined. Extron is not responsible for miscut mounting
holes.
Top plate (outer rim) ........................... 8.470" W x 8.750" D
(21.51 cm W x 22.23 cm D)
Top plate (vertically lifting plate) ..... 6.220" W x 6.500" D
(15.80 cm W x 16.51 cm D)
Surface cutout ...................................... 7.90" ±0.0325" W (AAP access from
front and back) x 8.250" ±0.0325" D
(20.07 ±0.083 cm W x 20.96 ±0.083 cm D)

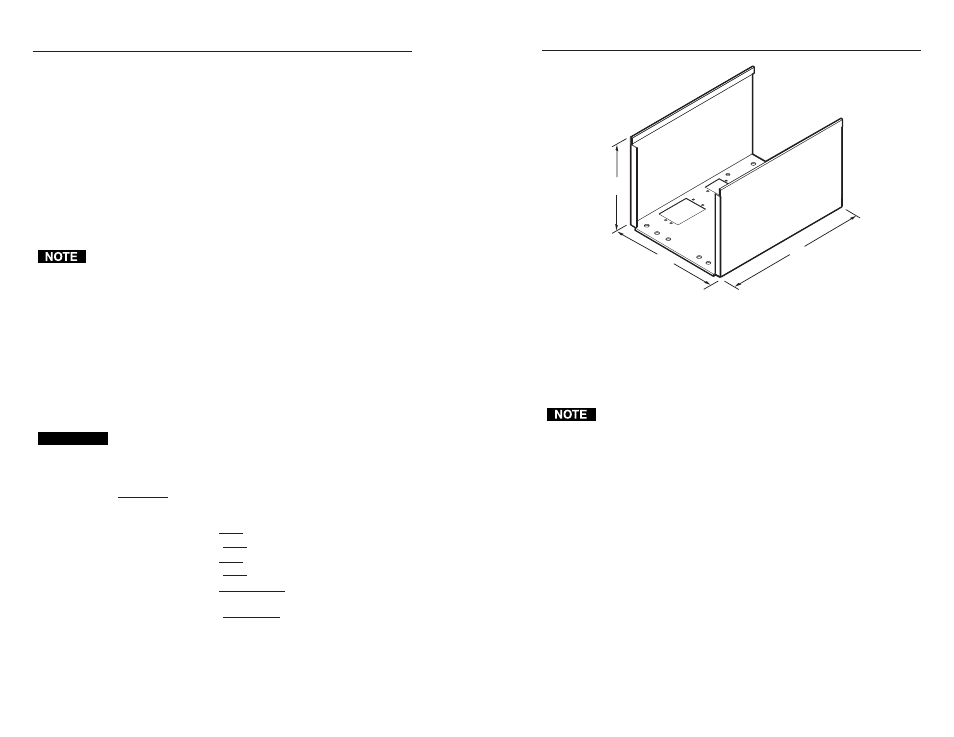

Clamshell (figure A-1) ........................ A = 7.24" (18.39 cm)
B = 8.25" (21.0 cm)
C = 10.98" (27.89 cm)
A
B
C
Figure A-1 — Clamshell dimensions
Product/shipping weight ......... 10.0 lbs (4.5 kg)/17 lbs (8 kg)
Listings ........................................ CSA, c-UL
Compliances ............................... CE
MTBF (stepper motor) ............... 100,000 cycles
Warranty ..................................... 3 years parts and labor
Specifications are subject to change without notice.
A-3
