HSA 822M • Reference Information HSA 822M • Reference Information
Reference Information, cont’d
A-6

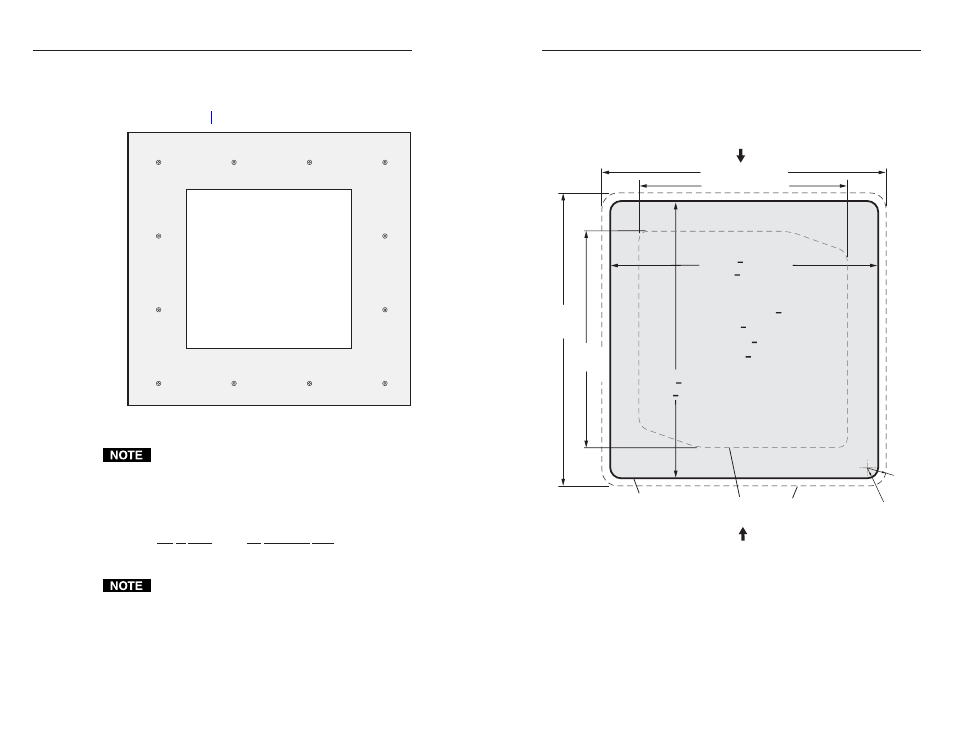

Top Plate Dimensions
The preferred and recommended method for cutting the table is
to use the metal routing template, part #70-191-01 (figure A-2 and
chapter 2, “Installation”).
USER ACCESS
EXTRON ELECTRONICS
USER ACCESS
Figure A-2 — HSA 822 metal routing template
The HSA 822M mounts in exactly the same size hole as
the HSA 822 and uses the same metal mounting
template.
If you choose not to use metal routing template available from
Extron, the cut-out template (figure A-3 on the next page) will
help you properly prepare the mounting surface. The cutout
template is not to scale and is for reference only. The surface
cut-out area dimensions for the template are marked in bold
type
.
The HSA 822M mounts in exactly the same size hole as
the HSA 822 and uses the same paper cut-out template.
For a full size paper template, visit the Extron Web site
(
www.extron.com ) or call the Extron S 3 Sales & Technical
Support Hotline.
HSA 822M cut-out template
User Access (Connectors and AAP Openings)
7.900 0.0325"
(20.07 0.083 cm)
8.250 0.0325"
(20.96 0.083 cm)
SURFACE CUT-OUT
AREA = 7.900 0.0325"
(20.07 0.083 cm) x
8.250 0.0325"
(20.96 0.083 cm)
Cut surface material
out along this line.
Tilting Plate Top Panel
Cut-Out Template for Extron's
HSA 822M
TEMPLATE IS NOT FULL SIZE.
Cut-Out Radius:
0.25"
(0.6 cm)
6.220" (15.80 cm)
8.470" (21.51 cm)
6.500"
(16.51 cm)
0.5"
(1.3 cm)
8.750"
(22.23 cm)
User Access (Connectors and AAP Openings)
+
+
+
+
+
+
+
+
Figure A-3 — HSA 822M cut-out template
A-7
