Operation
MultiLab 4010-1
16
ba76141e03
03/2014
4
Operation
4.1
General operating principles
4.1.1 Keypad
In this operating manual, keys are indicated by brackets <..>.
The key symbol (e.g. ) generally indicates a short keystroke
(press and release) in this operating manual. A long keystroke (press and hold
for approx. 2 sec) is indicated by the underscore behind the key symbol (e.g.
).

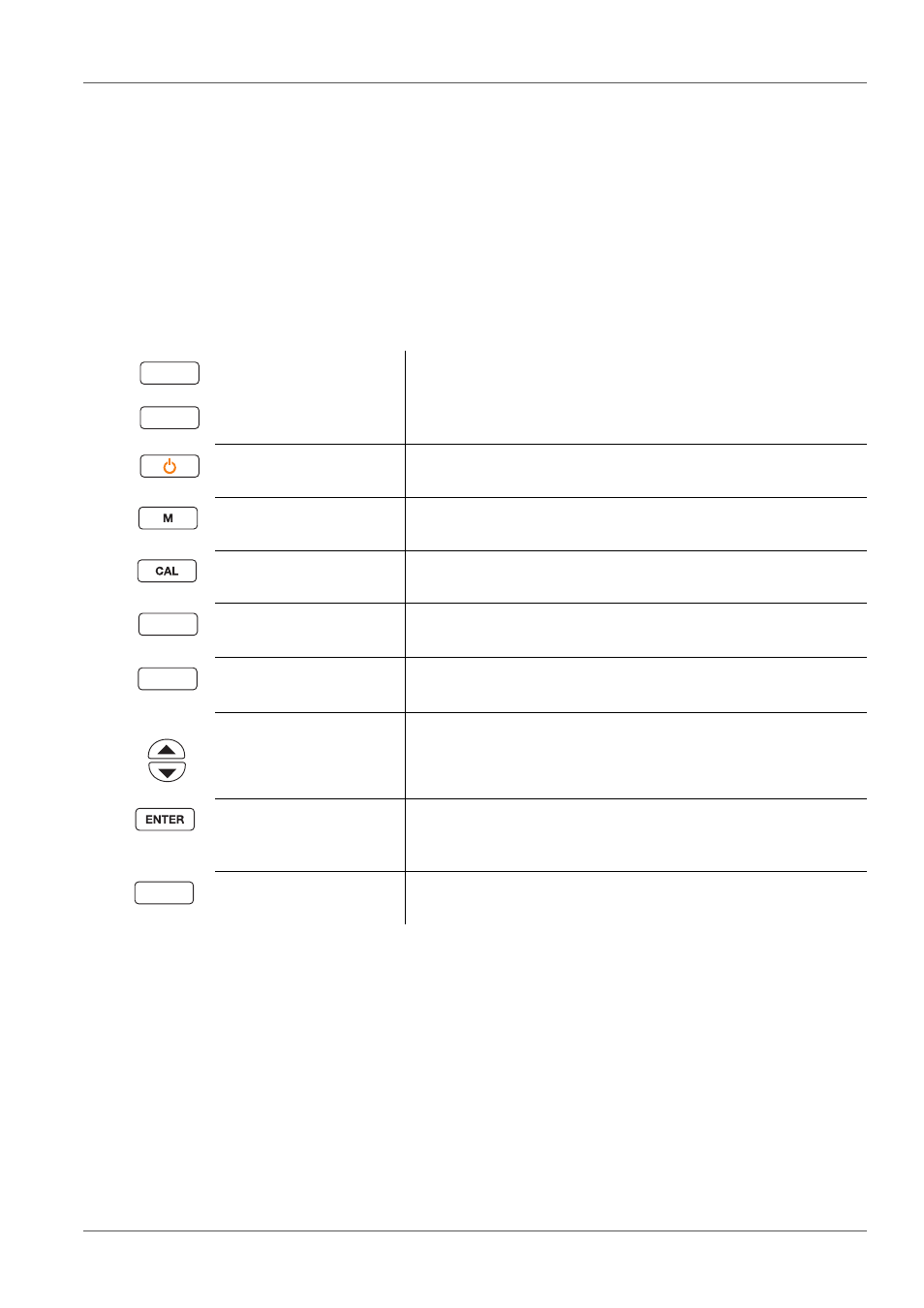

Softkeys providing situation dependent functions, e.g.:
Switches the meter on or off
Selects the measured parameter / Quits the settings
Calls up the calibration procedure
Displays the calibration data
Saves a measured value manually
Opens the menu for the automatic save function
Displays the manually stored measured values
Displays the automatically stored measured values
<><>:
<__><__>:
Menu control, navigation
Increments, decrements values
Increments, decrements values continuously
:
:
Opens the menu for measurement settings / confirms
entries
Opens the menu for system settings
Freezes the measured value (HOLD function)
Switches the AutoRead measurement on or off
F1
F2
STO
STO
RCL
AR
AR
