Host PC Settings:
In order to set up your Host PC, make sure you have full Windows Administrator rights.
Disable any firewalls and all other Ethernet and WiFi connections on this PC.
Then follow these steps to configure your TCP/IP settings for communication with the EVSE.
The NIC on the host PC should be connected to the ASA5505 firewall port number 0/6. A network
cable connects port 0/0 on the firewall to port 1 on the Charging Station Network Ethernet Switch.

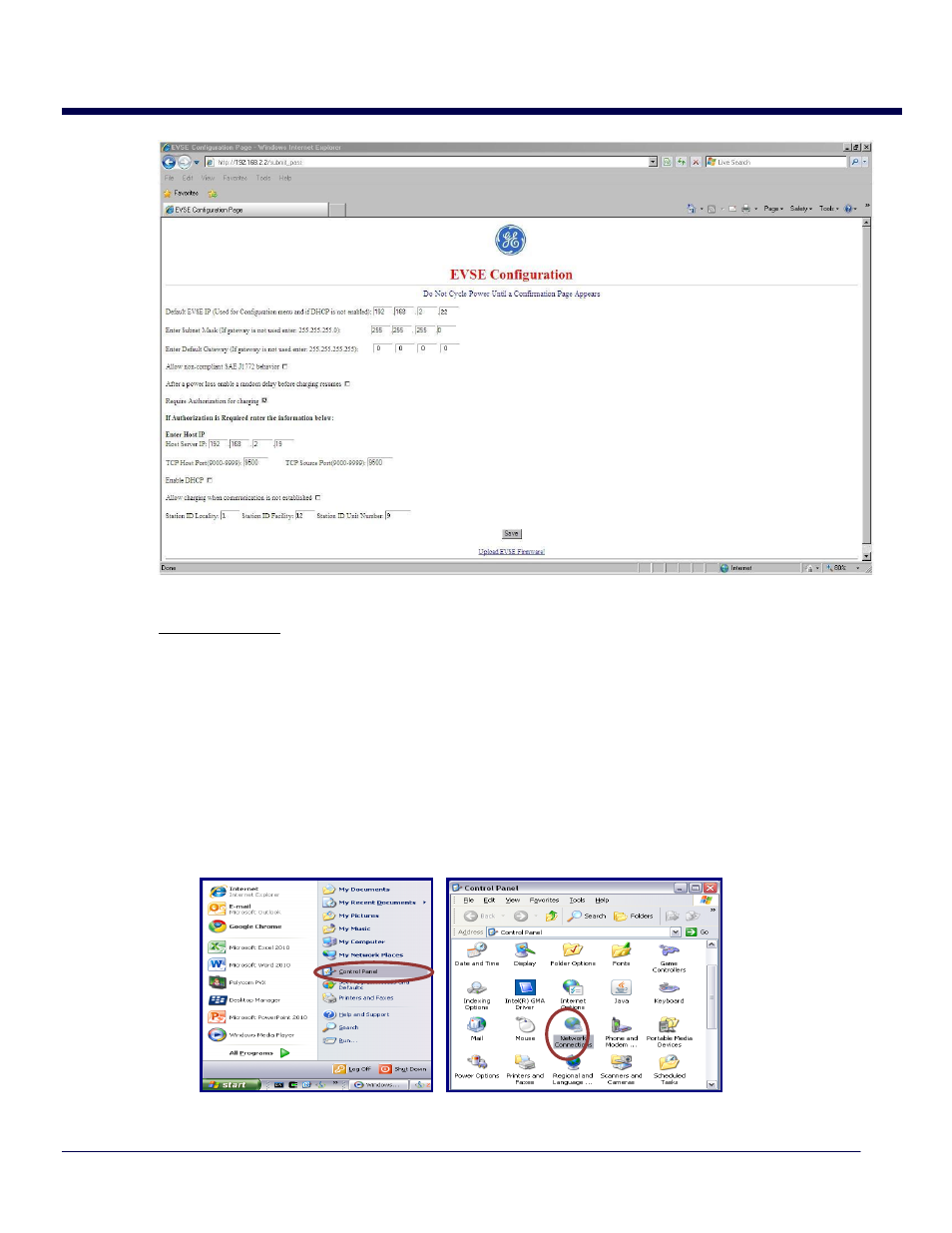

To configure the network settings on a PC running Windows XP Press the Start button and open the
Control Panel. Select the Network Connections applet.
Figure 72: Network Connections
