Ev charging station, User manual & installation instructions – GE Industrial Solutions NEMA EVSE CHARGING STATION User Manual
Page 22
g
EV Charging Station
User Manual & Installation Instructions
GE EV Charging Station User Manual
22 of 86

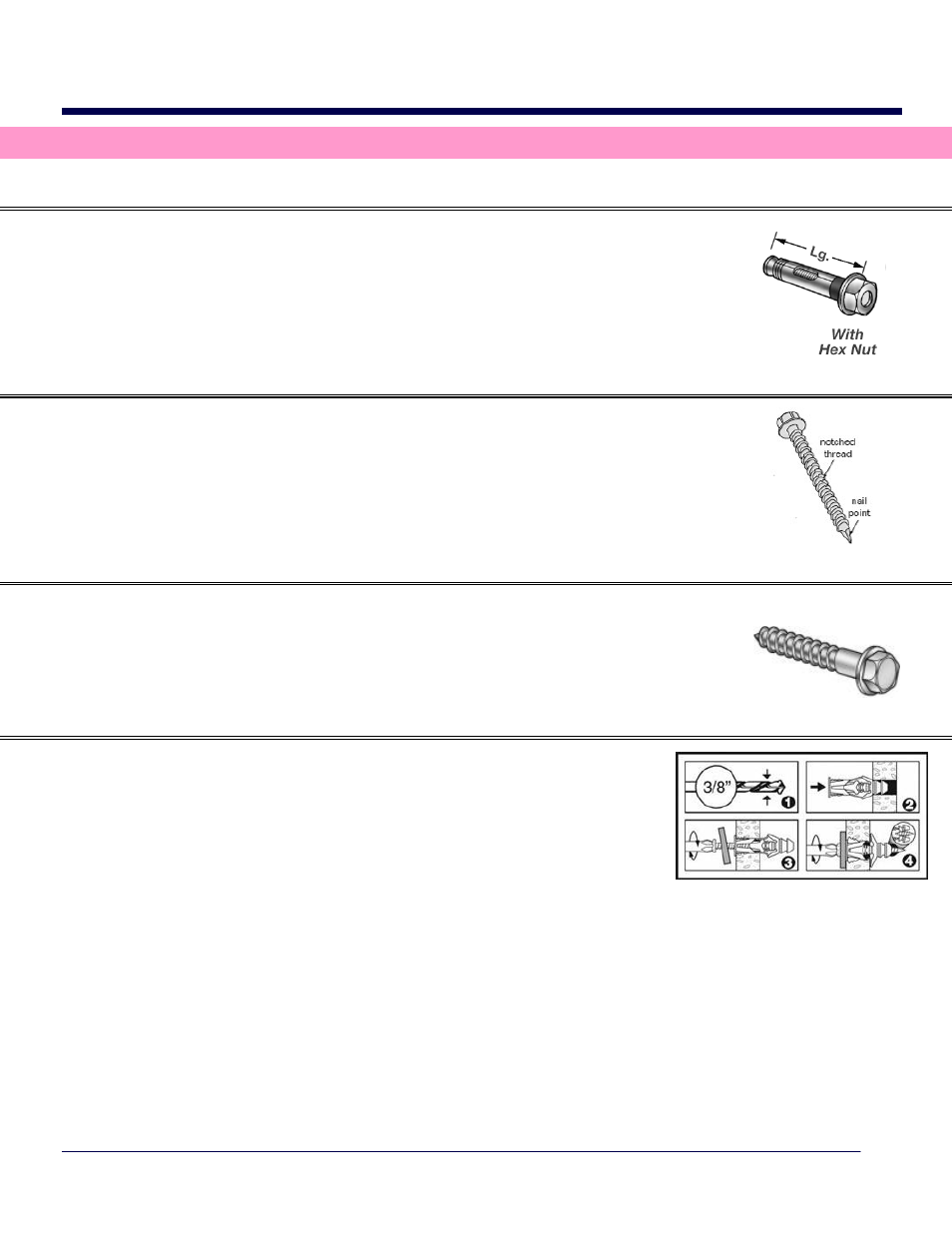

- Table 6 –
Wall Mount EVSE Mounting Fasteners
Fastener Type
Supplier
Part Number Qty
Application
3/8" x 1-7/8" Concrete Anchor
McMaster-Carr
96892A258
6
Concrete Wall
Pre-drill hole dia. 3/8"
3/8" x 1-3/4" Concrete Hex Screw
Tapcon
LDT38134
6
Concrete Wall
Pre-drill hole dia. 5/16"
3/8" x 2" Hex Head Lag Bolt
McMaster-Carr
95526A525
3
Stud Wall
Pre-drill hole dia. 3/8" Hardwood
(into wood stud)
Pre-drill hole dia. 1/4" Softwood
Hollow Wall Anchor
Cobra Anchors
TripleGrip
6
Drywall
Pre-drill hole dia. 3/8"
(into sheetrock)
