EV Charging Station
User Manual & Installation Instructions
GE EV Charging Station User Manual
38 of 86
Secure the individual wires in the RFID cable inside the provided Phoenix connector, as shown in
Figures 39 and 40.
Attach the Phoenix connector to the controller in its designated location, as shown in Figure 41 and
42. Make sure to press the Phoenix collector fully into the female socket.

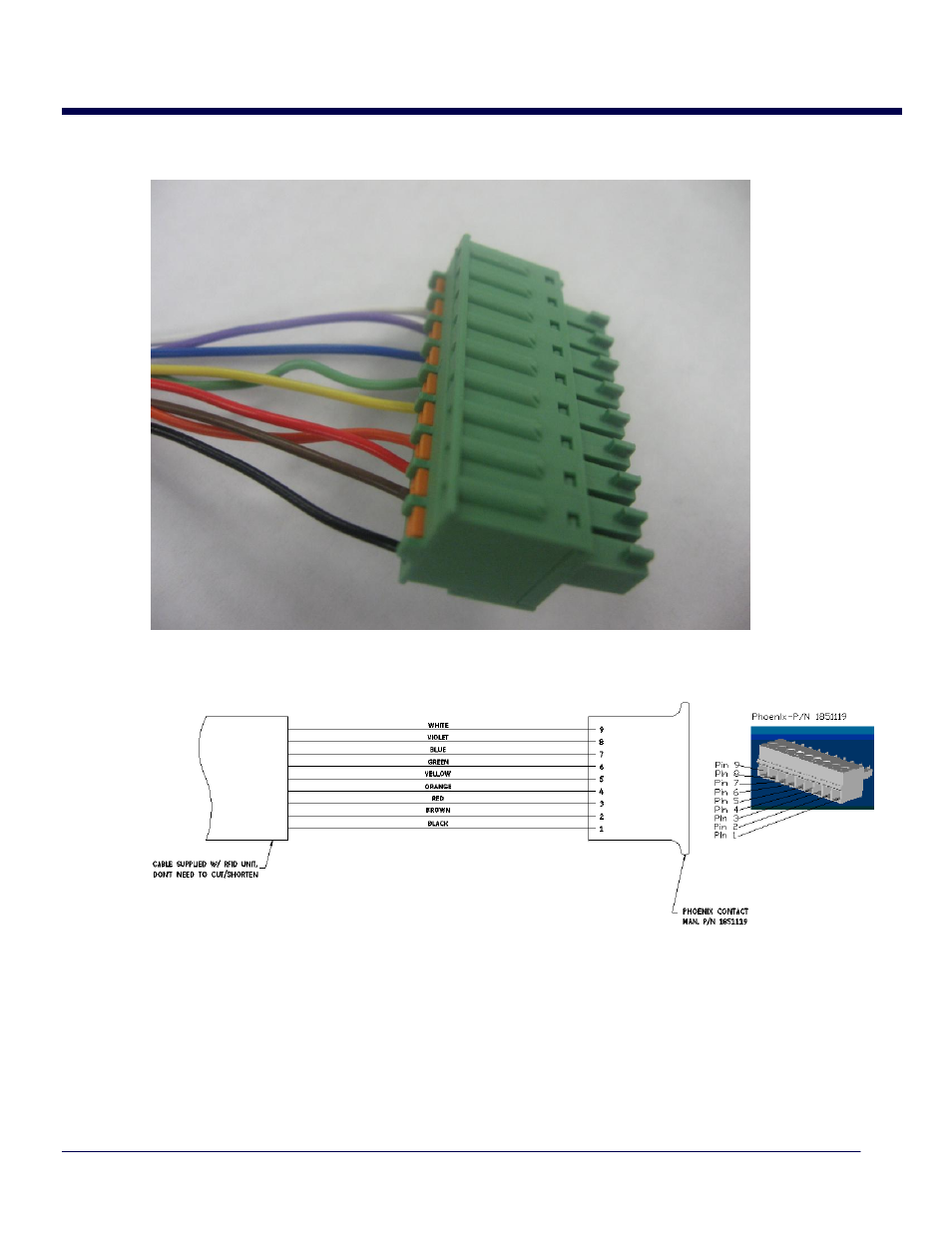

Figure 39: RFID Phoenix Connector
Figure 40: RFID wiring
