GE Industrial Solutions QRW010-025-035-040 Series User Manual
Page 33
Lineage Power
33
Data Sheet
August 24, 2010
36 Vdc - 75 Vdc Input, 1.0 to 12 Vdc Output; 10 A to 40 A
QRW010/025/035/040 Series Power Modules; dc-dc Converters

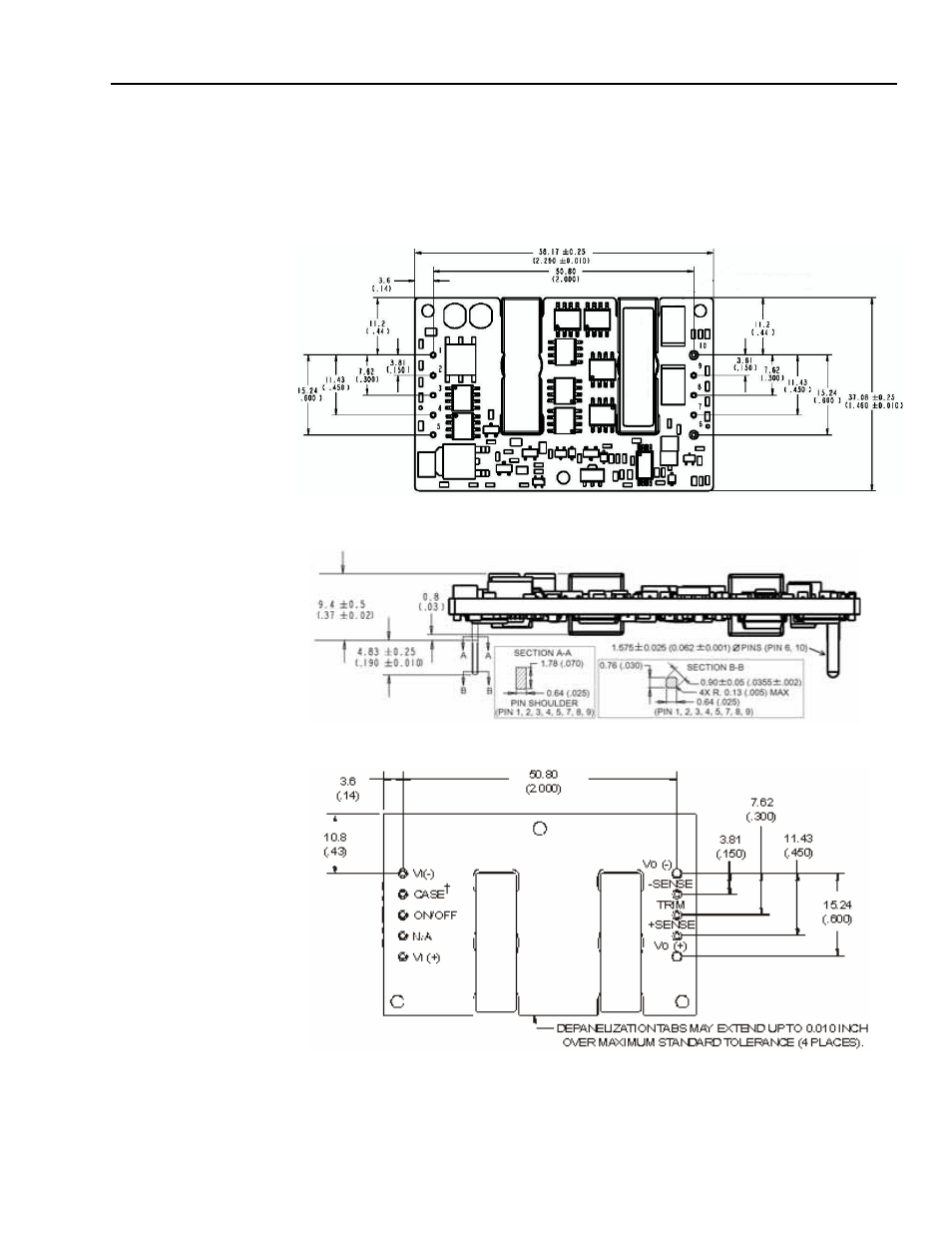

Outline Diagram
Dimensions are in millimeters and (inches)
Tolerences: x.x mm 0.5 mm (x.xx in. 0.02 in.)
x.xx mm 0.25 mm (x.xxx in. 0.010 in.)
1-0454
*Top Side label includes Lineage name, product designation, and data code.
†
Optional Features, Pin is not present unless one of these options is specified.
Top View
Side View
Bottom View
