August 24, 2010 36 Vdc - 75 Vdc Input, 1.0 to 12 Vdc Output; 10 A to 40 A
QRW010/025/035/040 Series Power Modules; dc-dc Converters
Characteristic Curves
The following figures provide typical characteristics curves for the QRW025A0A (VO = 5.0V) module at room temperature (TA =
25 °C)

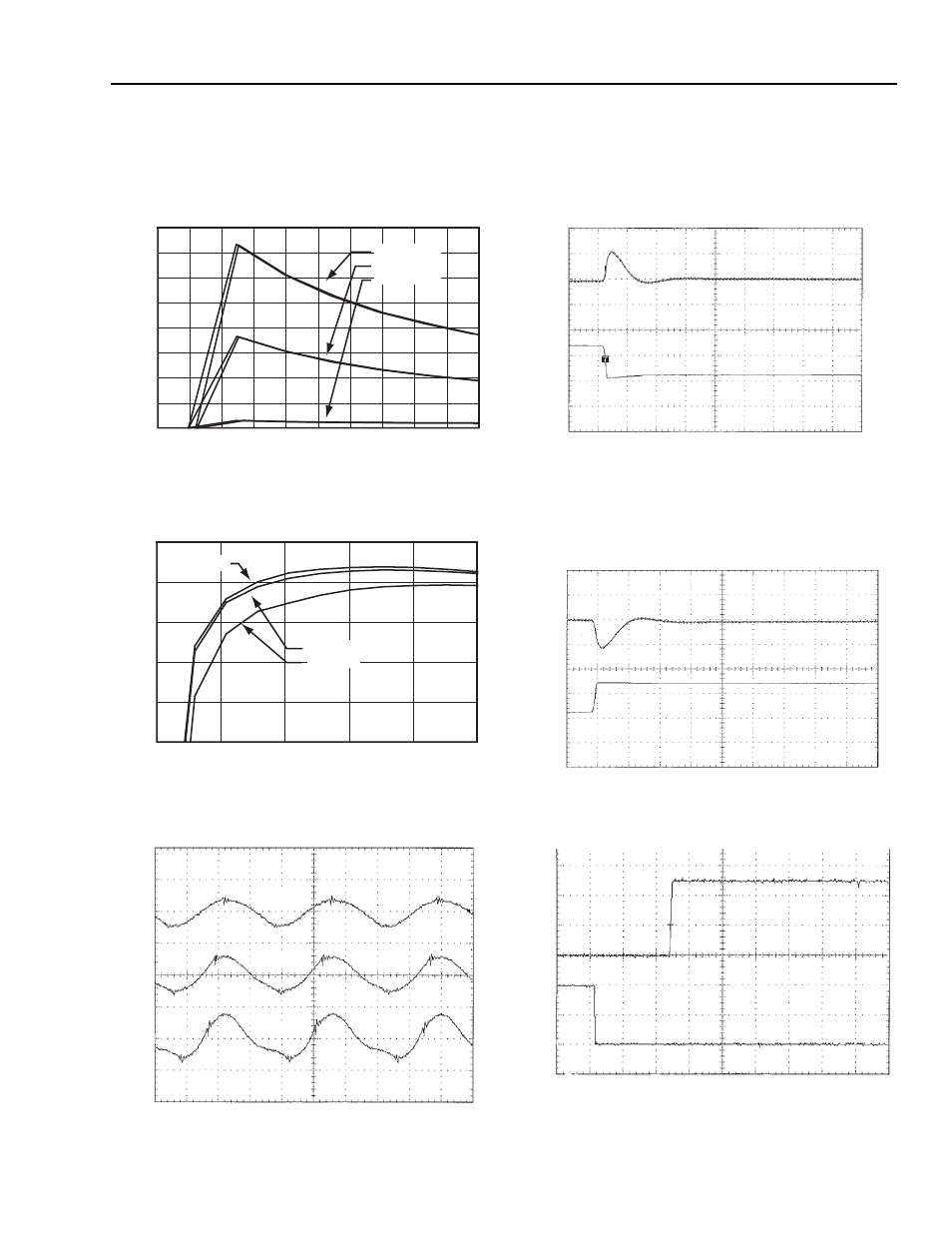

Figure 37. Input Voltage and Current Characteristics.
Figure 38. Converter Efficiency vs. Output Current.
Figure 39. Output Ripple Voltage (IO = IO, max).
Tested with a 220µF aluminium and a 1.0µF ceramic capacitor
across the load.
Figure 40. Transient Response to Step Decrease in
Load from 50% to 25% of Full Load
(VI = 48 Vdc).
Figure 41. Transient Response to Step Increase in Load
from 50% to 75% of Full Load
(VI = 48 Vdc).
Tested with a 10µF aluminium and a 1.0µF tantalum capacitor across
the load.
Figure 42. Start-up from Remote On/Off (IO = IO, max).
