August 24, 2010 36 Vdc - 75 Vdc Input, 1.0 to 12 Vdc Output; 10 A to 40 A
QRW010/025/035/040 Series Power Modules; dc-dc Converters
Characteristic Curves
The following figures provide typical characteristics curves for the QRW035A0G (VO = 2.5 V) module at room temperature (TA
= 25 °C)

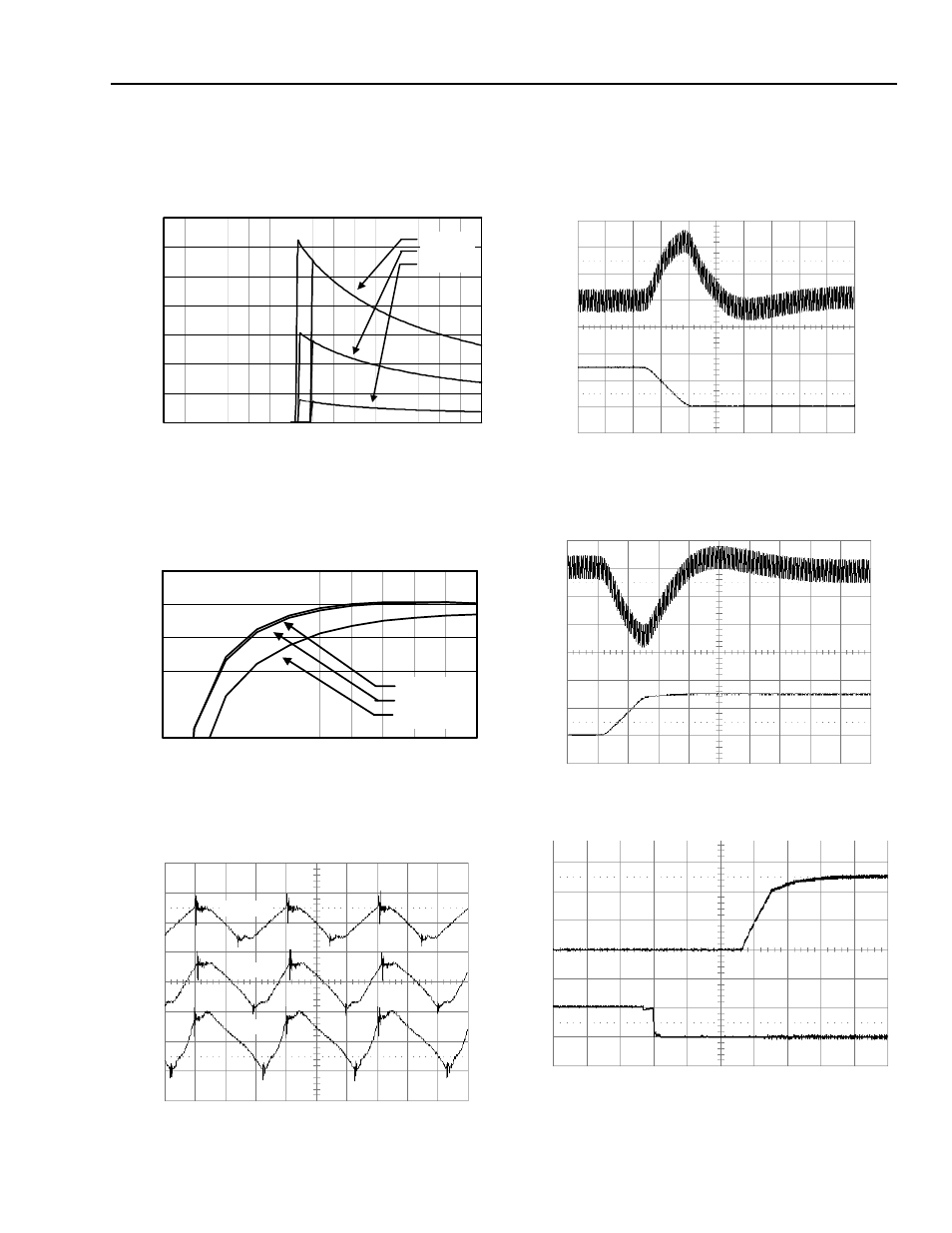

Figure 25. Input Voltage and Current Characteristics.
Figure 26. Converter Efficiency vs. Output Current.
Figure 27. Output Ripple Voltage (IO = IO, max).
Tested with a 220µF aluminium and a 1.0µF ceramic capacitor
across the load.
Figure 28. Transient Response to Step Decrease in
Load from 50% to 25% of Full Load
(VI = 48 Vdc).
Figure 29. Transient Response to Step Increase in
Load from 50% to 75% of Full Load
(VI = 48 Vdc).
Tested with a 10µF aluminium and a 1.0µF tantalum capacitor
across the load.
Figure 30. Start-up from Remote On/Off (IO = IO, max).
0
0.5
1
1.5
2
2.5
3
3.5
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75
INPUT VOLTAGE, V I (V)
IN
PU
T CU
RR
ENT
, I
I
(A
)
I O = 35 A
I O = 17.5 A
I O = 3.5 A
70
75
80
85
90
95
0 4 7 11 14 18 21 25 28 32 35
OUTPUT CURRENT, I
O
(A)
EF
FI
CI
E
NCY
,
η
(%
)
V I = 36 V
V I = 48 V
V I = 75 V
TIME t, (1µs/div)
OUTPUT V
OL
TA
GE, V
O
(V)
(50 mV/div)
36V, 35A
48V, 35A
75V, 35A
TIME, t (.10 ms/div)
OUTPUT CURRENT
, I
O
(A)
(5 A/div)
OUTPUT V
OL
TA
GE, V
O
(V
)
(50 mV/div)
TIME, t (.10 ms/div)
OUTPUT CURRENT
, I
O
(A)
(5 A/div)
OUTPUT V
OL
TA
GE, V
O
(V)
(50
m V/div)
TIME, t (1 ms/div)
REMO
TE ON/OFF PIN, V ON/OFF
(V)
OUTPUT V
OL
TA
GE, V
O
(V)
(1 V/div)
