GE
Preliminary Data Sheet
CAR2512TE Front-End
Input: 90V
AC
to 264V
AC
; Output: 12 V
DC
@ 2500W; 3.3/5V
DC
standby @ 15W
February 7, 2014 ©2013 General Electric Company. All rights reserved. Page 14

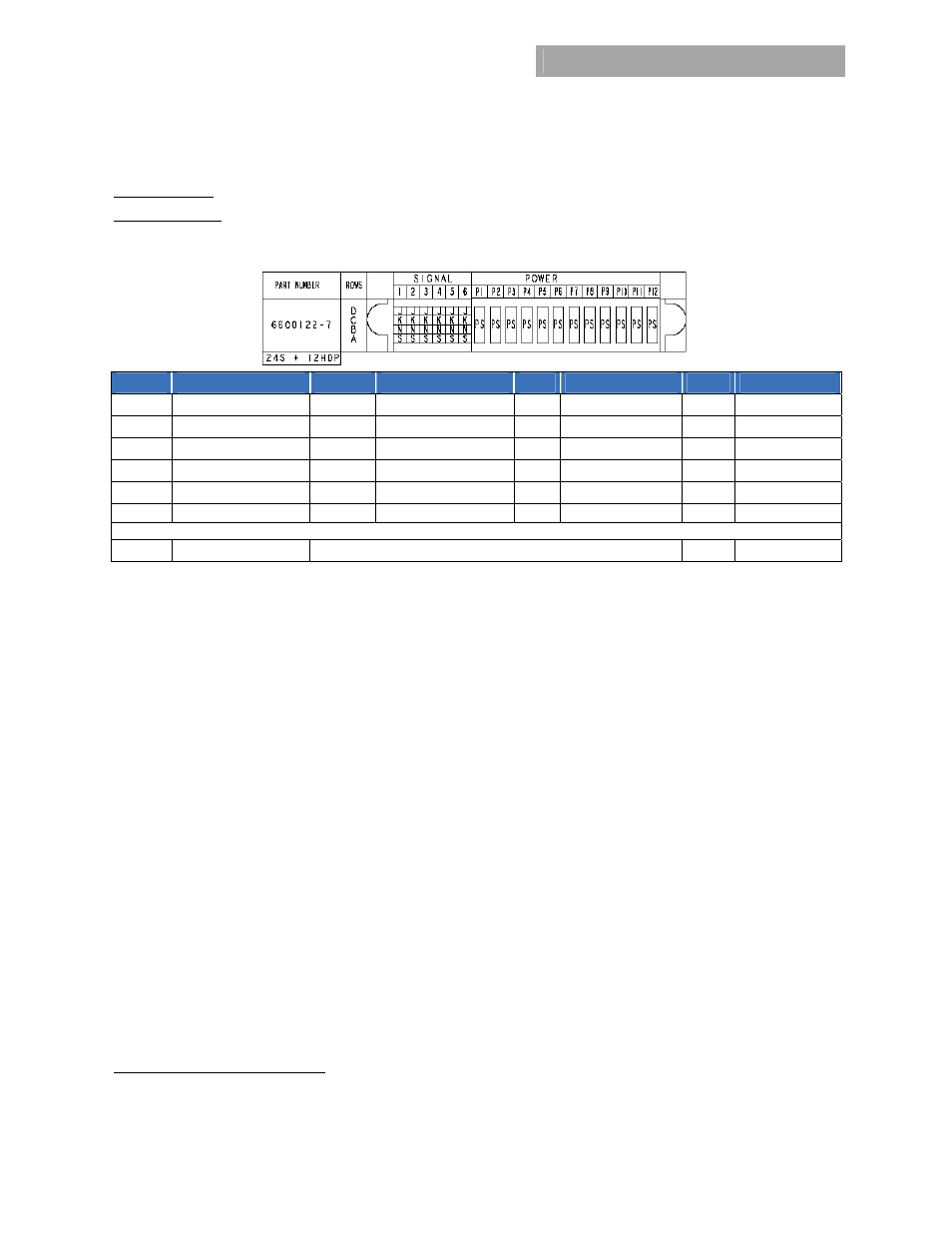

Connector Pin Assignments
Input Connector: IEC320, C20; mating connector: IEC320, C19 type
Output Connector: Tyco P/N 6600122-7 or equivalent
Mating connector: Primary Source: FCI berg P/N 51915-176LF
Secondary Source: Tyco P/N 6450171-5
Pin Function Pin Function Pin Function Pin Function
A1 V
STDBY
B1 Fault C1 IShare D1 VProg
A2 PS Present B2 Current Monitor (Imon) C2 V
STDBY
D2 OVP Test Point 6
A3 V
STDBY
Return B3 Interlock C3 Over_Temp_Warning D3 Remote ON/OFF
A4 n/c B4 V
STDBY
Return C4 I 2 C Address (A0) D4 DC_OK
A5 Remote Sense (+) B5 SDA (I 2 C bus) C5 I 2 C Address (A1) D5 AC_OK
A6 Remote Sense (-) B6 SCL (I 2 C bus) C6 I 2 C Address (A2) D6 SMBAlert
P1 – P6 Output Return P7– P12 +12V
OUT
6 For factory use
