GE Industrial Solutions 9-36V ProLynx 5A User Manual
36v prolynx, 5a: non-isolated dc-dc power modules, Data sheet

GE
Data Sheet
July 23, 2013
©2012 General Electric Company. All rights reserved.

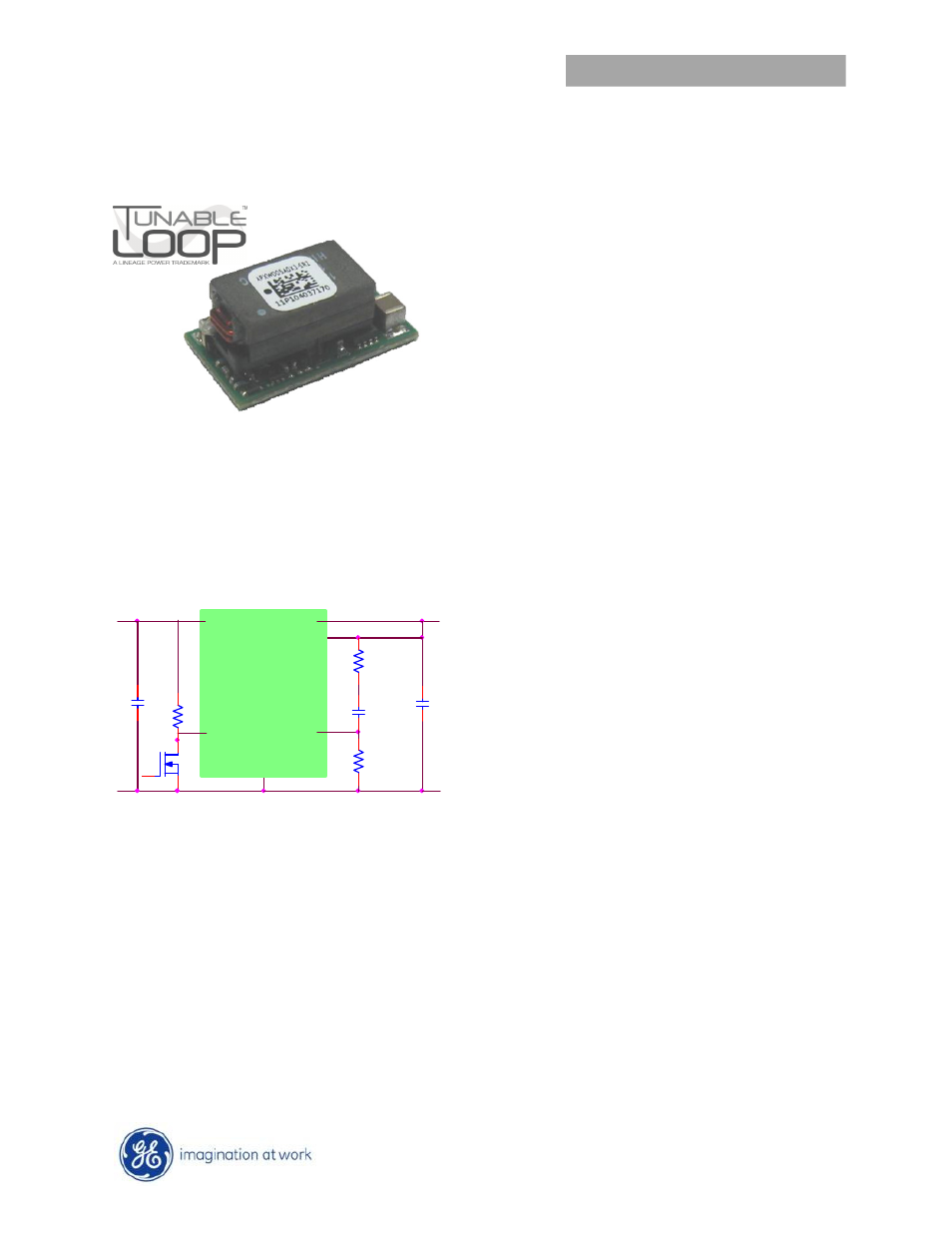

9-36V ProLynx
TM
5A: Non-Isolated DC-DC Power Modules
9Vdc –36Vdc input; 3Vdc to 18Vdc output; 5A to 2.5A Scaled output current
9Vdc –24Vdc input; -3.3Vdc to -18Vdc output
1
; 5A to 0.7A Scaled output current
Features
•
Compliant to RoHS EU Directive 2002/95/EC (Z versions)
•
Compatible in a Pb-free or SnPb reflow environment (Z
versions)
•
Compliant to IPC-9592 (September 2008), Category 2,
Class II
•
Extra Wide Input voltage range (9Vdc–36Vdc)
•
Output voltage programmable from 3Vdc to 18 Vdc via
external resistor
•
Tunable Loop
TM
to optimize dynamic output voltage
response
•
Patent Pending AutoLimit
automatic scaling of current
limit with output voltage
•
Output overcurrent protection (non-latching)
•
Overtemperature protection
•
Remote On/Off
•
Remote Sense
•
Small size: 20.3 mm x 11.4 mm x 8.5 mm (0.8 in x 0.45 in
x 0.335 in)
•
Wide operating temperature range [-40°C to
105°C(Ruggedized: -D), 85°C(Regular)]
•
UL* 60950-1, 2
nd
Ed. Recognized, CSA
†
C22.2 No.
60950-1-07 Certified, and VDE
‡
(EN60950-1, 2
nd
Ed.)
Licensed
•
ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
•
Industrial equipment
•
Distributed power architectures
•
Intermediate bus voltage applications
•
Telecommunications equipment
Description
The 9-36V ProLynx
TM
series of power modules are non-isolated dc-dc converters that can deliver up to 5A of output current. These
modules operate over an extra wide range of input voltage (V
IN
= 9Vdc – 36Vdc) and provide a precisely regulated output voltage
from 3Vdc to 18Vdc, programmable via an external resistor. Two new features added with this family of products are the ability to
externally tune the voltage control loop and a variable current limit inversely
dependent
on output voltage. Other features include
remote On/Off, adjustable output voltage, over current and over temperature protection. The Ruggedized version (-D) is capable of
operation up to 105°C and withstand high levels of shock and vibration. The Tunable Loop
TM
, allows the user to optimize the
dynamic response of the converter to match the load with reduced amount of output capacitance leading to savings on cost and
PWB area and AutoLimit enables the module to deliver the max possible output power across the entire voltage range. The 9-36V
ProLynx can also be used for negative output voltage
loads through the use of a specific application schematic
* UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
1
Output range linked to input voltage range see page 24
RoHS Compliant
Co
VOUT
Vin+
SENSE
Q1
Vout+
TRIM
ON/OFF
Cin
VIN
MODULE
RTUNE
GND
RTrim
CTUNE
R
