9
3. Figure 4 (c)
With breaker closed loosen locking screw. Move
stabilizer ASM into engagement with breaker latch
and lock in place with locking screw.
Note:
The stabilizer assembly is slightly different for RL
version breakers, but can be adjusted in similar
manner as explained above.
Figure 5. Flux shifter mounting area.
Flux Shifter Test
The operation of the flux shifter may be tested by
closing the breaker, then applying 9 Vdc to the flux
shifter leads (red is positive). The breaker should trip
and reset. If necessary, repeat the adjustments in the
previous procedures.
Figure 6. Flux shifter assembly installed, as viewed from the
bottom of the breaker (RL-1600 shown).

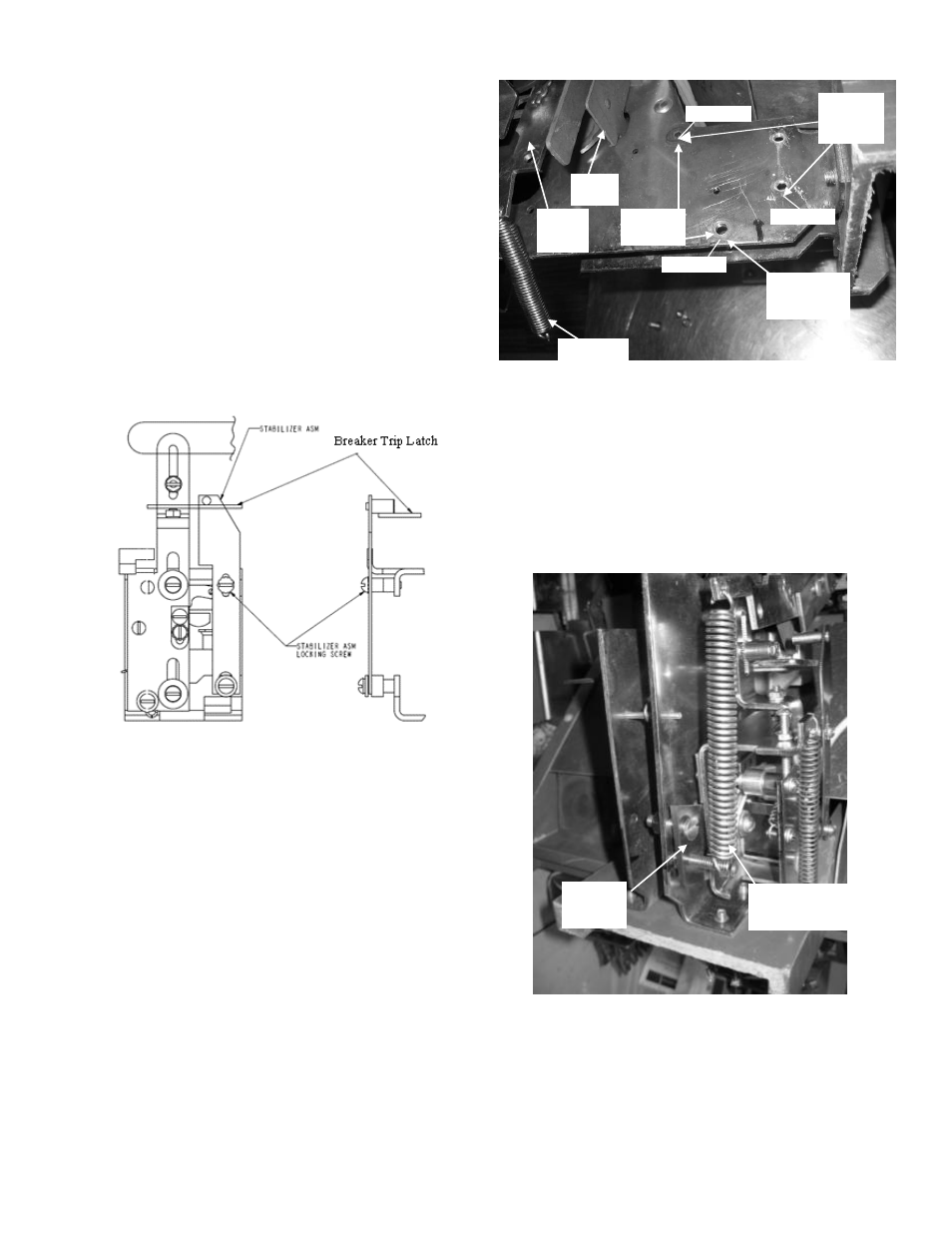

Figure 4 (b)
Figure 4 (c)
RL
mounting
plate [13]
Original breaker
reset spring
Breaker
Reset
Link
Trip
Paddle
Reset Spring
Mounting
Hole for
LA-Gold
Mounting
Hole for RL
Drill hole to
.257 dia for RL
only
Hole A
Hole B
Hole C
