GE Industrial Solutions Entelliguard TU, MicroVersaTrip Plus and PM Conversion Kits User Manual
Page 11
11

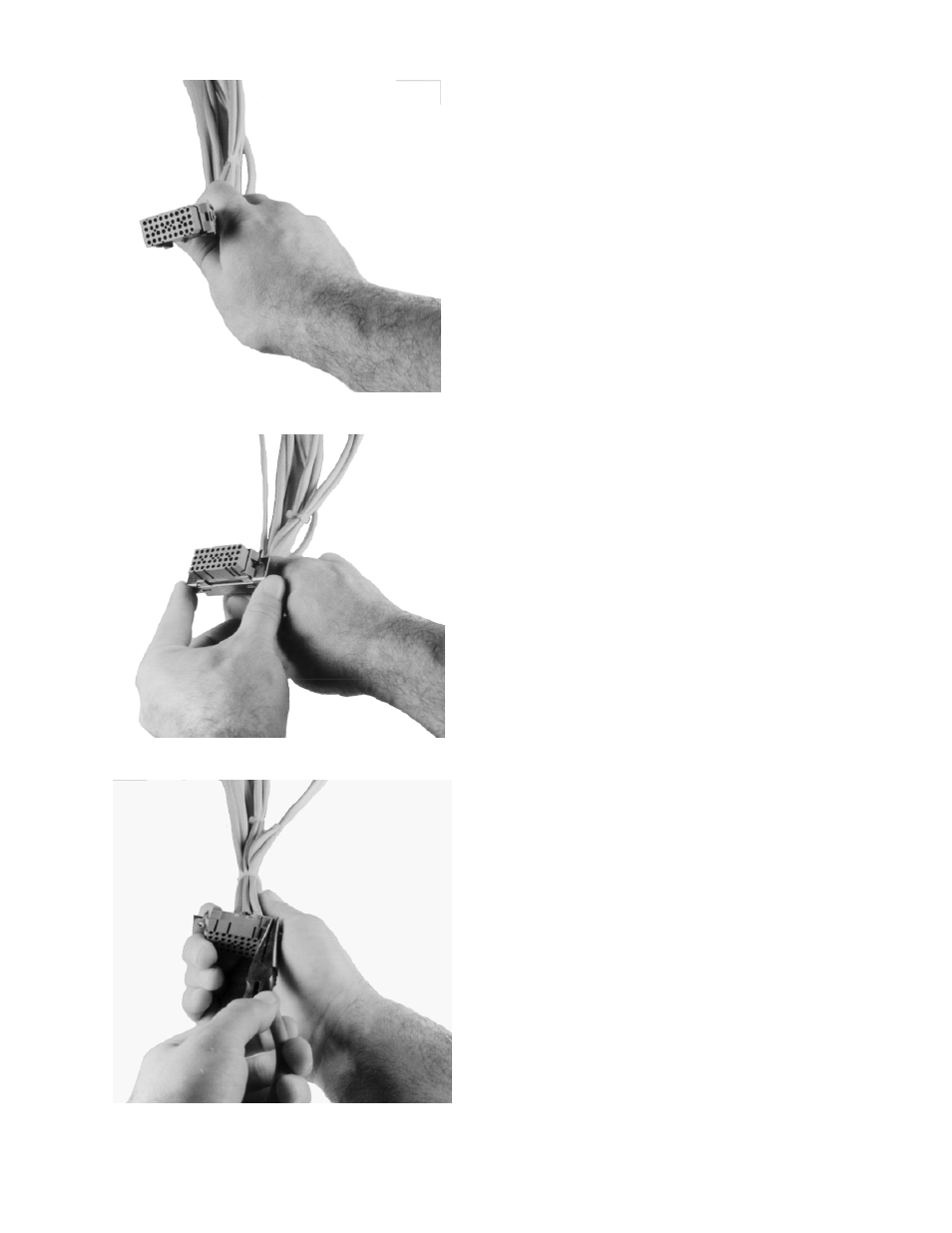

Figure 8. 36-pin trip unit connector
Figure 9 36-pin connector adapter bracket
Figure 10. Adapter bracket locking tabs
4. Slide the adapter bracket and connector assembly
over the guide pins of the trip unit bracket. Press
the two steel push nuts provided onto the guide
pins using a nut driver, as shown in Figure 11,
until the assembly is held firmly against the trip
unit mounting plate.
5. While holding the adapter bracket and connector
assembly firmly in place against the mounting
plate, bend the two locking tabs on the mounting
plate into the mating notches on the adapter
bracket using a screwdriver, as shown in Figure
12.
*NOTE: Trip unit mounting plate not shown in these
views *
