Configuring Lineups 39
7
2. Select “Update Lineup”
To Delete a lineup
1. Click on the desired lineup in the list and the Name, Description and IP addresses will
populate with the lineup information
2. Select “Delete Lineup” (The current lineup and startup lineup cannot be deleted)
The Startup Lineup
The Startup Lineup is the default lineup which the HMI connects to each time the Remote HMI
software is started
Configuration file upload
After either changing the default lineup or when connecting to an Entellisys Lineup for the first
time, the HMI will attempt to connect and upload all HMI files from the CPUs of the respective
lineup. (See figure
7-3 ) If the CPUs are unavailable, the lineup will still be entered and HMI will try
again when the user selects the HMI from the “Select Lineup” screen. If there is a mismatch, the
user will be prompted to either update the HMI or do nothing.

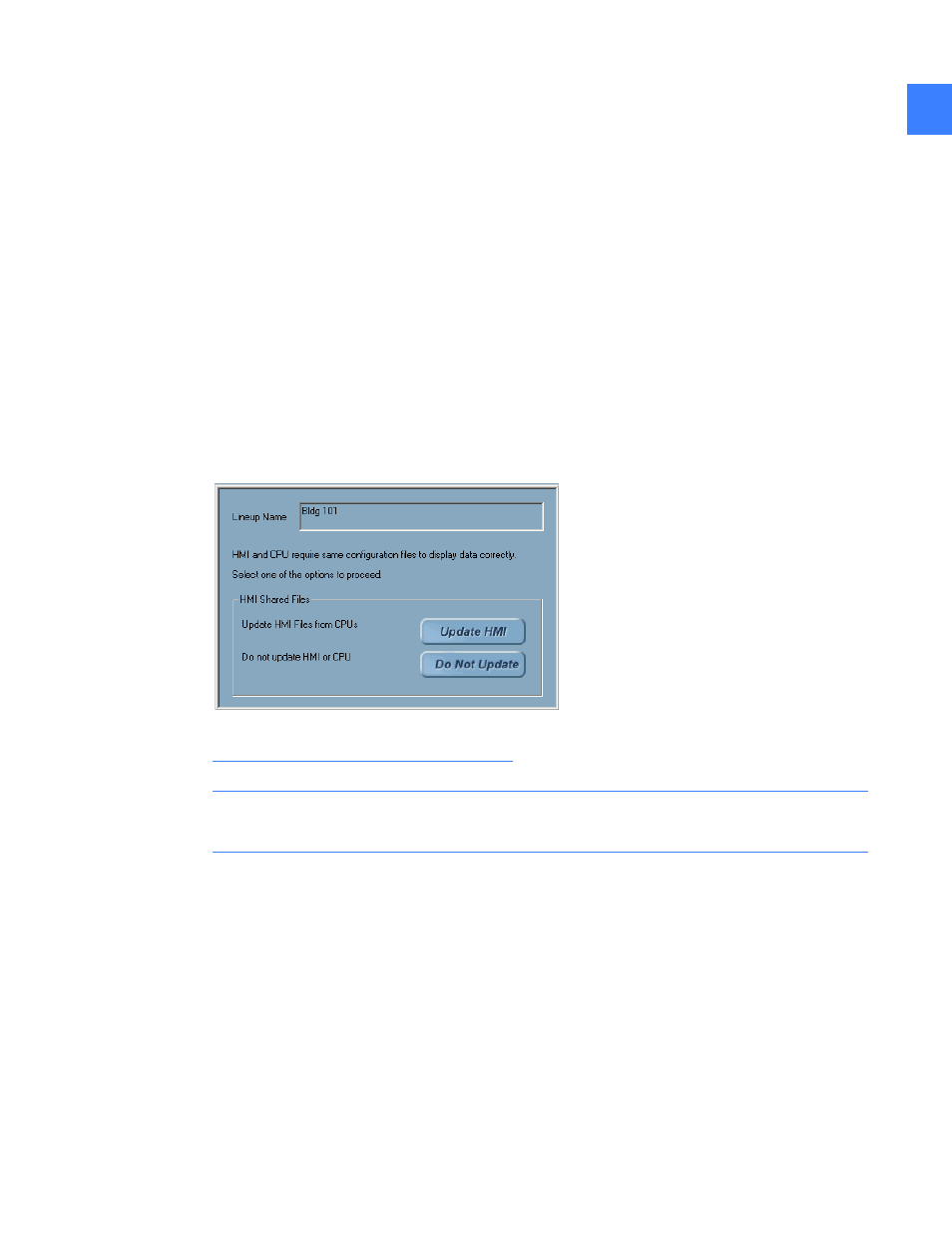

Figure 7-3 HMI file mismatch dialog
If the Entellisys system was configured in offline mode, do not select “Update HMI.” See section
Writing settings to a live system on page 43 for details on uploading settings to the CPU.
NOTE: The order in which lineups appear in the “Select Lineup” screen is fixed to the order in
which they were added into the HMI.
