CPS2500D +/-190V Downstream System
Issue 4 January 2008 Installation 5 - 5
Install the CPS2500D Shelf
CPS2500D Frame
Install Use the following procedure to mount the CPS 2500D shelf into a frame with
mounting holes located on 12.9 inch (328 mm) centers.
Step Action
1 Locate the 2 mounting brackets, one on each side of the QS800A
shelf; align the holes in the shelf-mounting bracket with the holes in
the mounting frame. See Figure 5-2.
2 Attach the CPS shelf to the frame using 6 screws threaded to match
the holes in the equipment frame. Refer to the table below for Torque
Specifications.
Torque
Hardware Nm in-lb
Metric M5 4 35
12-24 4 35
Metric M6 7.3 65

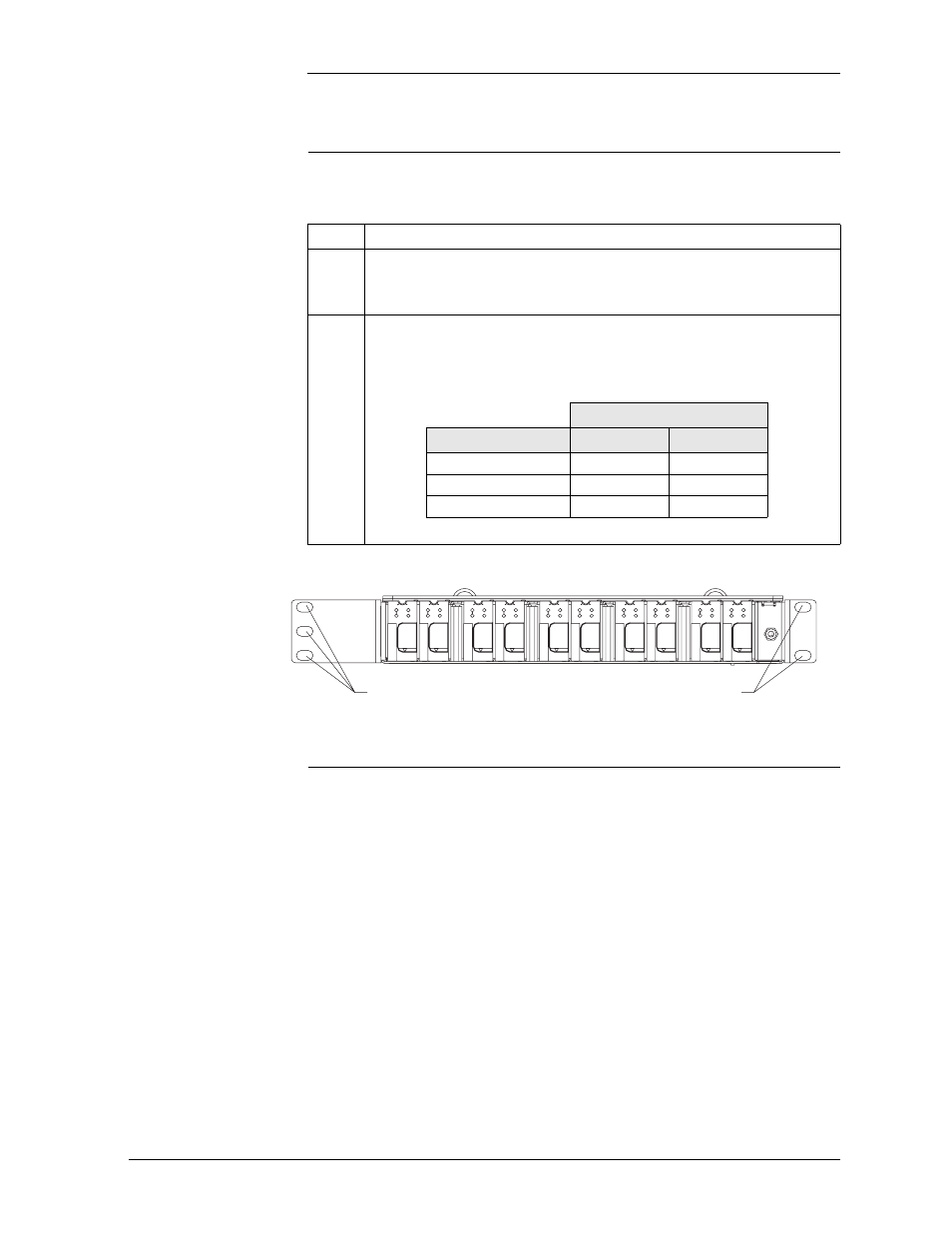

Figure 5-2: QS800A Frame Mounting
1 2 3 4 5 6 7 9 10
ESD
8
QS882A
A B
OUT
IN
QS882A
A B
OUT
IN
QS882A
A B
OUT
IN
QS882A
A B
OUT
IN
QS882A
A B
OUT
IN
QS882A
A B
OUT
IN
QS882A
A B
OUT
IN
QS882A
A B
OUT
IN
QS882A
A B
OUT
IN
QS882A
A B
OUT
IN
Frame Mounting
Screws Go Here And Here
