PowerWalker WinPower Software V.4.3.0.1 Manual User Manual

Page 53

Text mode
Original mode

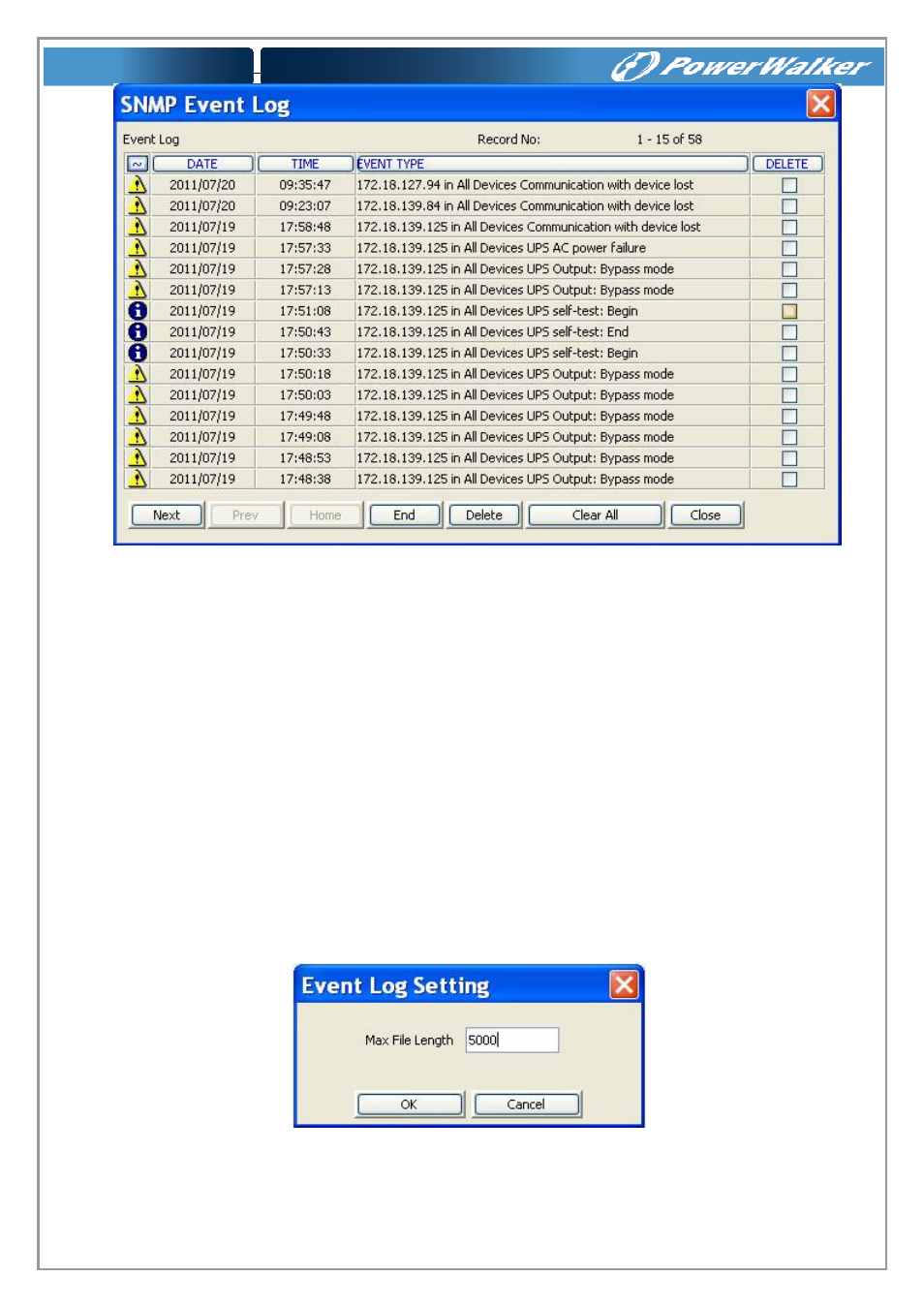

Diagram 3-2-30

Note: To carry on this operation, you must have administrator privilege. Select “Act as

Administrator” from the “System” menu to log in as a Super user.

31) "Event Log Setting" Dialog

Note: If the OK button is disabled, the current Agent is read-only, and you cannot set up the

parameters. Select “Act as Administrator” from the “System” menu to log in as a Super user.

1. To view the event records for any UPS monitored by a Network Management Card, select the

UPS under the SNMP node in the tree view and select “SNMP Event Log” from the SNMP menu.
The Event Log for UPS opens.

2. To set the maximum Event Log file length for any UPS monitored by the SNMP Card, select

“Event Log Setting” from the “SNMP” menu. The default file length is 5,000 rows, and the maximum
value is 100,000 rows. Refer to the following diagram 3-2-31.

Diagram 3-2-31
